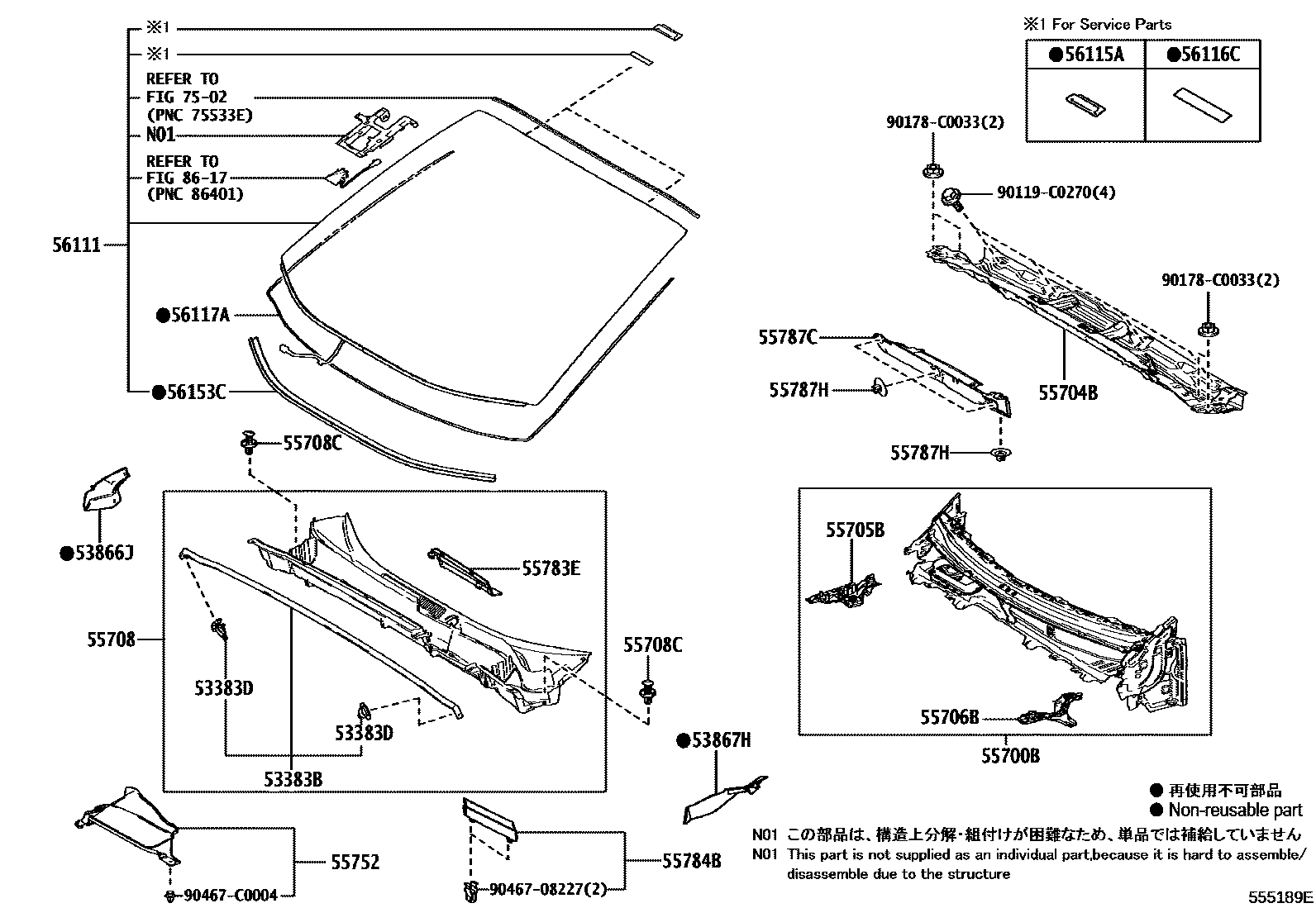

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0E110iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0C010iAXUH85..M;MXUA80..S¥200202111-202408

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E110iAXUH85..M;MXUA80..S202111-202408

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E110iAXUH85..M;MXUA80..S202111-202408

55700BCOWL ASSY

main55700-0R060iAXUH85..M;MXUA80..S202111-202408

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-0R040iAXUH85..M;MXUA80..S202111-202408

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0R060iAXUH85..M;MXUA80..S202111-202408

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0R060iAXUH85..M;MXUA80..S202111-202408

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0E220iAXUH85..M;MXUA80..S202111-202408

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAXUH8#,MXUA80¥120202111-202309

main90467-C0071iAXUH85..M;MXUA80..S202309-202408

55752SHIELD, COWL VENTILATOR SPLASH

main55752-0R040iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-0E100iAXUH85..M;MXUA80..S202111-202408

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0E060iAXUH85..M;MXUA80..S202111-202408

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0E070iAXUH85..M;MXUA80..S202111-202408

55787HCLIP, COWL TOP PANEL INSULATOR

main90467-06188iAXUH85..M;MXUA80..S¥160202111-202408

(J)

main90467-C0003iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

(L)

56111GLASS, WINDSHIELD

main56101-0EB00iAXUH85..G;AXUH80,MXUA80..G,M,X202111-202408

main56101-0EB10iMXUA80..S202111-202408

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAXUH85..M;MXUA80..S¥130202111-202408

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXUH85..M;MXUA80..S¥120202111-202408

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0E260iAXUH85..M;MXUA80..S202111-202408

L=2903

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-0R030iAXUH85..M;MXUA80..S202111-202408

7502

8617

90119C0270

main90119-C0270

90178C0033

main90178-C0033

9046708227

main90467-08227¥80

90467C0004

main90467-C0004

26 parts on this diagram · 1 diagram in section
