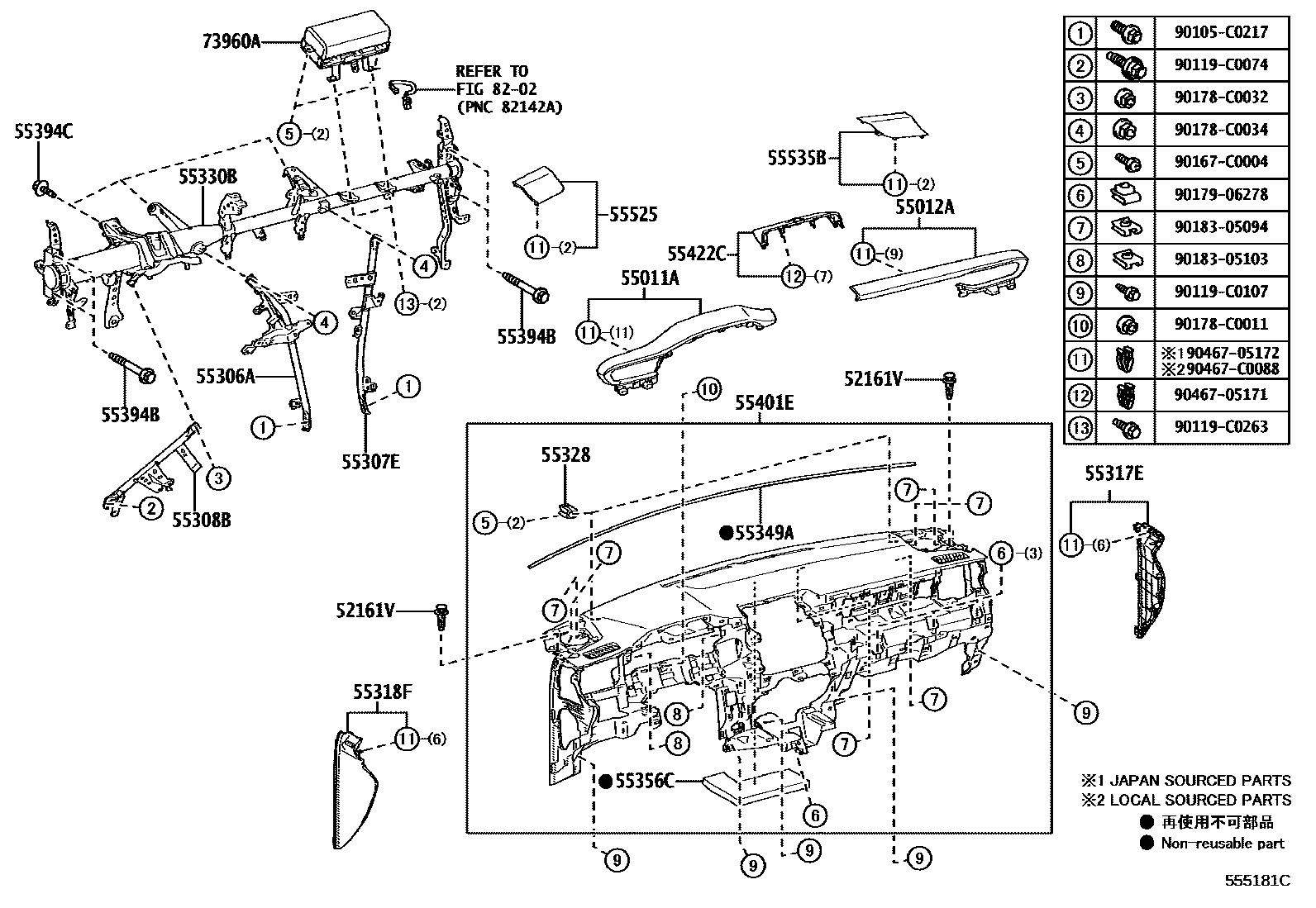

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040iAXUH85..M;MXUA80..S202111-202408

55011AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

main55011-0E070-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#

main55011-0E070-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202111

BLACK,TRIM1#,2#

55012AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2

main55012-0E070-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main55012-0E070-C0iMXUA80..X202111

BLACK,TRIM1#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E140iAXUH85..M;MXUA80..S202111-202408

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E140iAXUH85..M;MXUA80..S202111-202408

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0E120iAXUH85..M;MXUA80..S202111-202408

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0E180-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main55317-0E180-C0iMXUA80..X202111

BLACK,TRIM1#,2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0E140-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#

main55318-0E140-C0iMXUA80..X202111

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4080iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E250iAXUH85..M;MXUA80..S202111-202408

55349ACUSHION, INSTRUMENT PANEL

main55349-0R040iAXUH85..M;MXUA80..S202111-202408

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0E100iAXUH85..M;MXUA80..S202111-202408

55394BBOLT, INSTRUMENT PANEL

main90105-C0318iAXUH85..M;MXUA80..S202111-202408

55394CBOLT, INSTRUMENT PANEL

main90119-C0223iAXUH85..M;MXUA80..S202111-202408

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E250-C0iMXUA80..X202111

BLACK,TRIM1#,2#

main55401-0E250-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-0E100iAXUH85..M;MXUA80..S202111-202408

55525COVER, SPEAKER HOLE, NO.1

main55525-0E030-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#

main55525-0E030-C0iMXUA80..X202111

BLACK,TRIM1#,2#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-0E010-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main55535-0E010-C0iMXUA80..X202111

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E150iAXUH85..M;MXUA80..S202111-202408

8202

90105C0217

main90105-C0217

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467C0088

main90467-C0088

34 parts on this diagram · 4 diagrams in section
