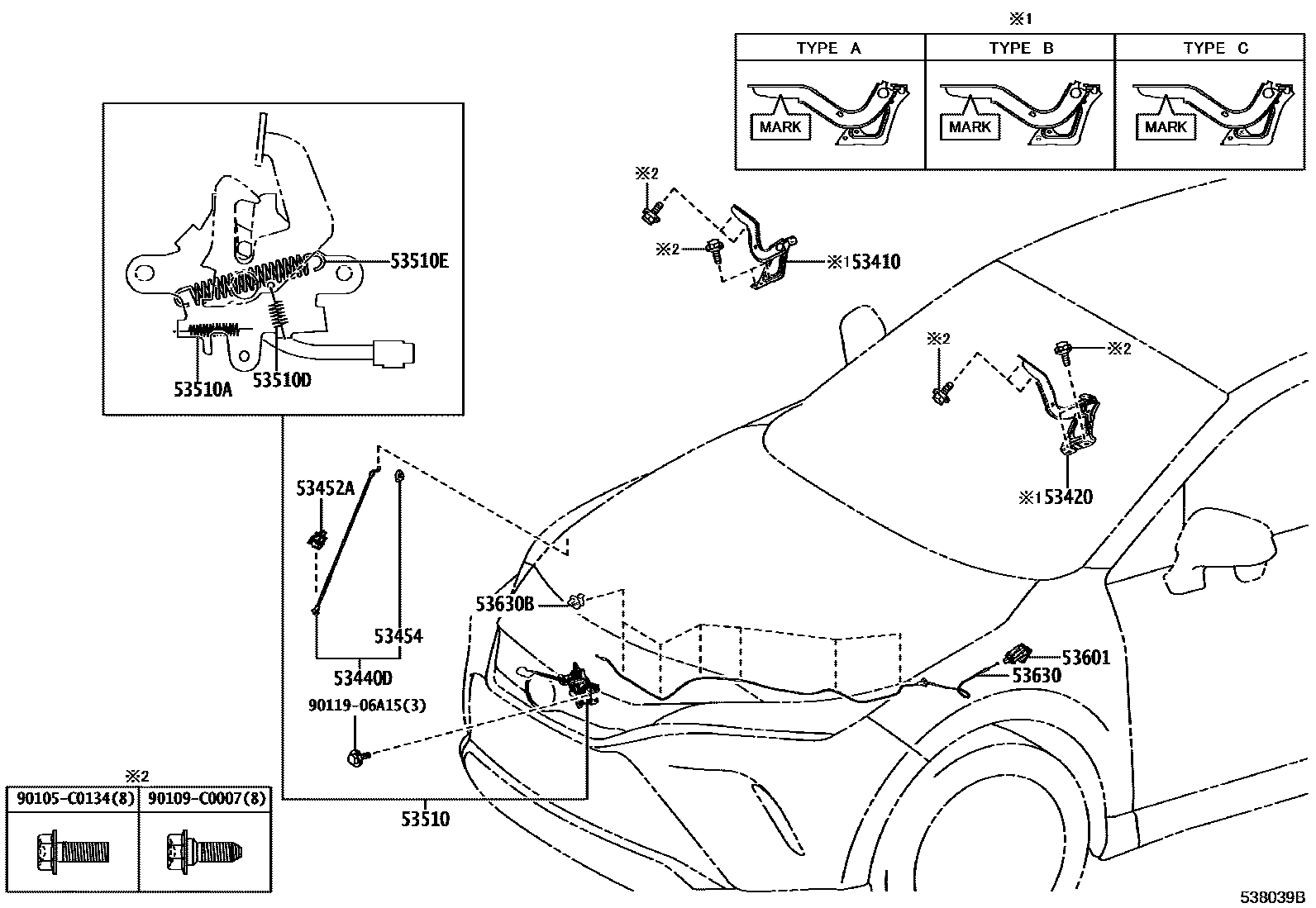

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0E280iAXUH8#,MXUA80202111-202208

MARK 941R,TYPE A

main53410-0E281iAXUH85..G,S;AXUH80,MXUA80..G,M,X202208-202408

MARK 941R,TYPE A

main53410-0E290iAXUH8#,MXUA80202111-202208

MARK 941R,TYPE B

main53410-0E291iAXUH85..G,S;AXUH80,MXUA80..G,M,X202208-202408

MARK 941R,TYPE B

main53410-0E300iAXUH8#,MXUA80202111-202208

MARK 941R,TYPE C

main53410-0E301iAXUH85..M;MXUA80..S202208-202408

MARK 941R,TYPE C

main53410-0E311iAXUH85..G,S;AXUH80,MXUA80..G,M,X202307-202408

MARK 942R,TYPE A

main53410-0E321iAXUH85..M;MXUA80..S202307-202408

MARK 942R,TYPE B

main53410-0E331iAXUH85..M;MXUA80..S202307-202408

MARK 942R,TYPE C

53420HINGE ASSY, HOOD, LH

main53420-0E280iAXUH8#,MXUA80202111-202207

MARK 941L,TYPE A

sub53420-0E281

main53420-0E281iAXUH85..M;MXUA80..S202208-202408

MARK 941L,TYPE A

main53420-0E290iAXUH8#,MXUA80202111-202208

MARK 941L,TYPE B

main53420-0E291iAXUH85..G,S;AXUH80,MXUA80..G,M,X202208-202408

MARK 941L,TYPE B

main53420-0E300iAXUH8#,MXUA80202111-202208

MARK 941L,TYPE C

main53420-0E301iAXUH85..M;MXUA80..S202208-202408

MARK 941L,TYPE C

main53420-0E311iAXUH85..M;MXUA80..S202307-202408

MARK 942L,TYPE A

main53420-0E321iAXUH85..G,S;AXUH80,MXUA80..G,M,X202307-202408

MARK 942L,TYPE B

main53420-0E331iAXUH85..M;MXUA80..S202307-202408

MARK 942L,TYPE C

53440DSUPPORT ASSY, HOOD

main53440-0E150iAXUH85..M;MXUA80..S202111-202408

53452AHOLDER, HOOD STAY

main53452-0R030iAXUH85..M;MXUA80..S202111-202408

53454CLIP, HOOD SUPPORT ROD

main53454-0F010iAXUH85..M;MXUA80..S202111-202408

53510LOCK ASSY, HOOD

main53510-0E190iAXUH85..M;MXUA80..S202111-202408

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXUH85..M;MXUA80..S202111-202408

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXUH85..M;MXUA80..S202111-202408

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iAXUH85..M;MXUA80..S202111-202408

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D011-C1iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main53601-0D011-C1iMXUA80..X202111

BLACK,TRIM1#,2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0E130iAXUH85..M;MXUA80..S202111-202408

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0004iAXUH85..M;MXUA80..S202111-202408

90105C0134

main90105-C0134

90109C0007

main90109-C0007

9011906A15

main90119-06A15

15 parts on this diagram · 1 diagram in section
