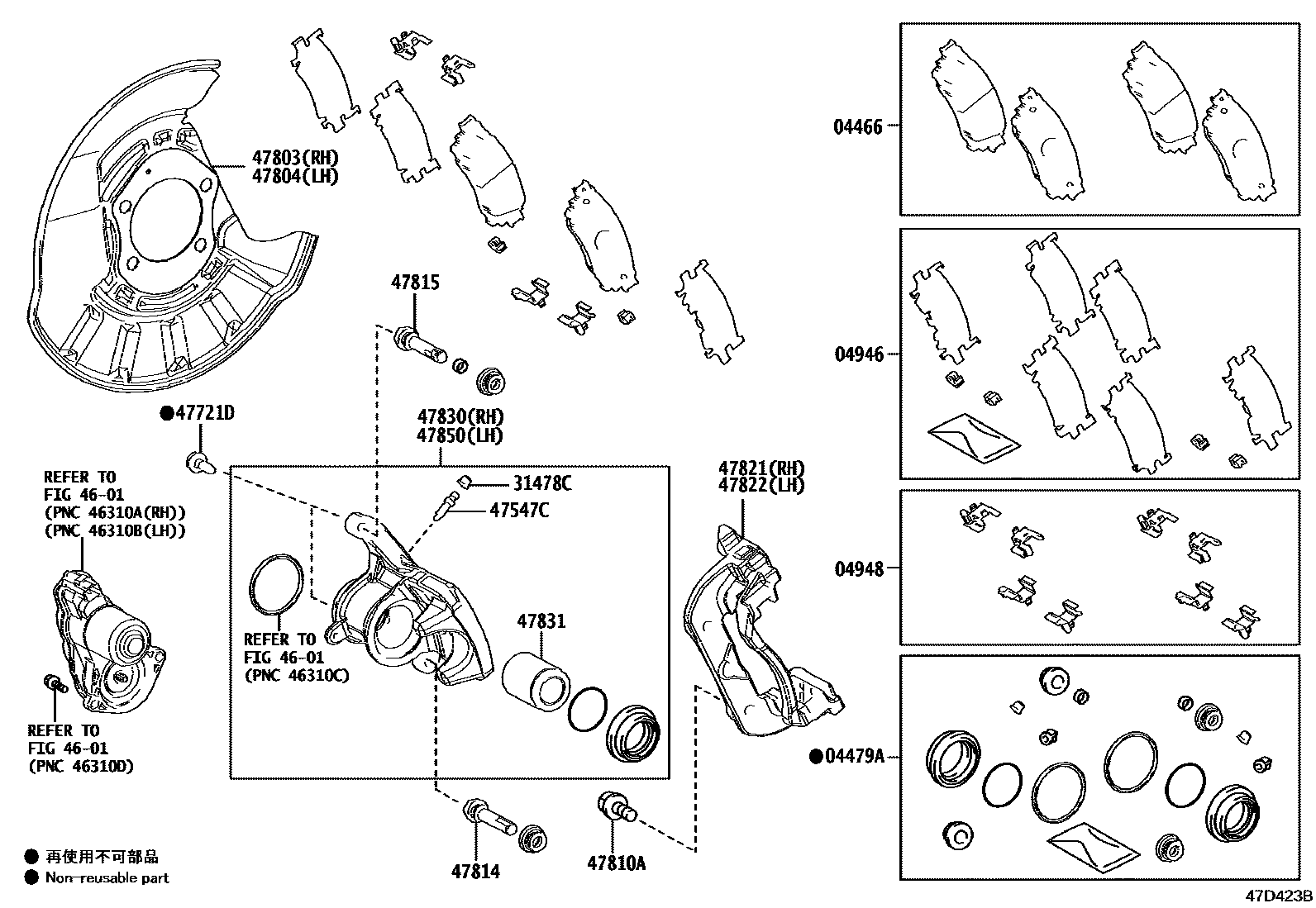

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0R000iAXUH85..M;MXUA80..S202111-202408

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06392iAXUH85..M;MXUA80..S202111-202408

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06150iAXUH85..M;MXUA80..S202111-202408

04948FITTING KIT, DISC BRAKE, REAR

main04948-06070iAXUH85..M;MXUA80..S202111-202408

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010iAXUH85..M;MXUA80..S202111-202408

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXUH85..M;MXUA80..S202111-202408

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA612iAXUH85..M;MXUA80..S202111-202408

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-F4010iAXUH85..M;MXUA80..S202111-202408

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-F4010iAXUH85..M;MXUA80..S202111-202408

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-C0255iAXUH85..M;MXUA80..S202111-202408

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180iAXUH85..M;MXUA80..S202111-202408

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180iAXUH85..M;MXUA80..S202111-202408

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-F4010iAXUH85..M;MXUA80..S202111-202408

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-F4010iAXUH85..M;MXUA80..S202111-202408

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R060iAXUH85..M;MXUA80..S202111-202408

47831PISTON, REAR DISC BRAKE

main47831-0R060iAXUH8#,MXUA80202111-202302

main47831-0R061iAXUH85..M;MXUA80..S202302-202408

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R060iAXUH85..M;MXUA80..S202111-202408

18 parts on this diagram · 1 diagram in section
