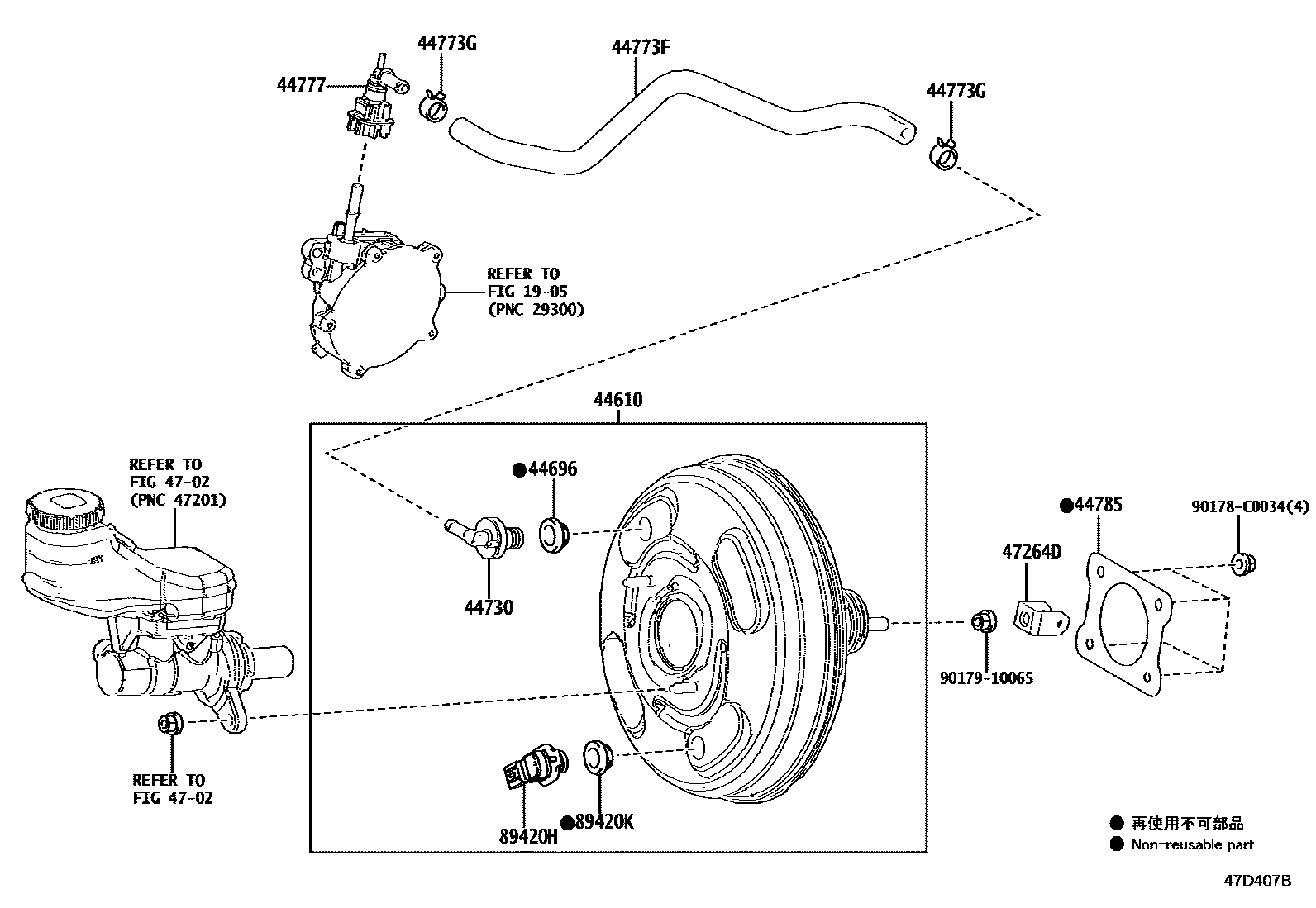

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-0E270iMXUA80..S202111-202408

44696GROMMET, CHECK VALVE

main90016-AT003iMXUA80..S¥120202111-202408

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXUA80..S¥1,300202111-202408

44773FHOSE, UNION TO CHECK VALVE

main44773-0R030iMXUA80..G,M,X202111-202408

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iMXUA80..S202111-202408

(L)

main90467-16014iMXUA80..S¥230202111-202408

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-06020iMXUA80..G,M,X202208-202408

(L)

main44777-33010iMXUA80¥520202111-202208

main44777-33010iMXUA80..S¥520202208-202408

(J)

44785GASKET, BRAKE BOOSTER

main44785-02050iMXUA80..S202111-202408

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R030iMXUA80..S202111-202408

89420HSENSOR ASSY, VACUUM

main89421-71040iMXUA80..S¥5,900202111-202408

89420KGROMMET, VACUUM SENSOR

main90016-AT003iMXUA80..S¥120202111-202408

90178C0034

main90178-C0034

9017910065

main90179-10065¥90

14 parts on this diagram · 1 diagram in section
