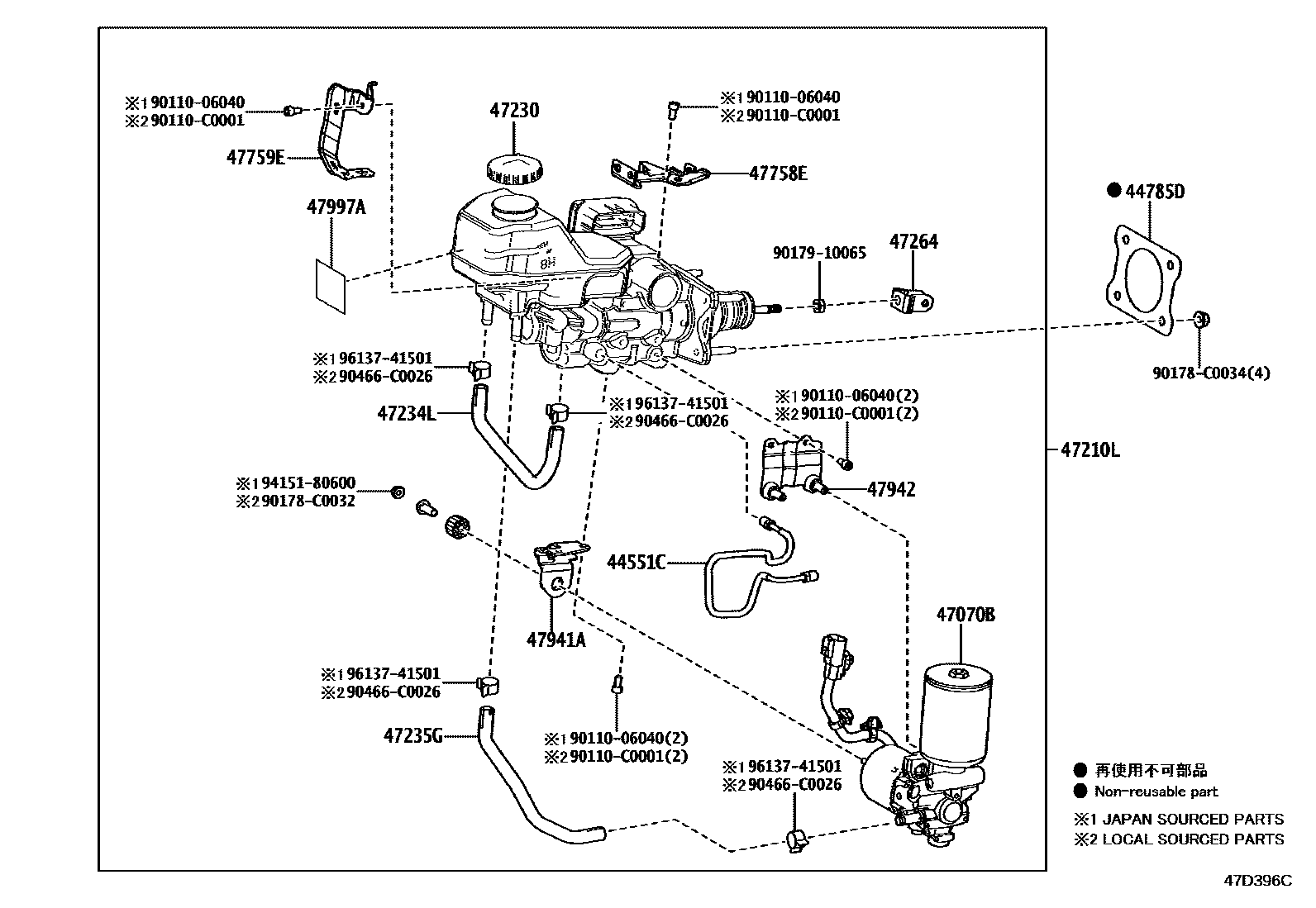

BRAKE MASTER CYLINDER

0001 1 0002 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-0E020iAXUH85..M202111-202408

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02050iAXUH85..M202111-202408

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-48100iAXUH85..M202111-202408

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-0E230iAXUH85..M202406-202408

*614

main47050-0R030iAXUH8#202111-202406

*614

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R100iMXUA80..G,M,X202203-202408

main47230-47090iAXUH80;AXUH85..G,S202111-202408

47234LHOSE, RESERVOIR, NO.1

main47234-0E191iAXUH85..M202111-202408

47235GHOSE, RESERVOIR, NO.2

main47235-0E060iAXUH85..M202111-202408

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXUH85..M202111-202408

47758EBRACKET, WIRE CLAMP, NO.1

main47758-0E030iAXUH85..M202111-202408

47759EBRACKET, WIRE CLAMP, NO.2

main47759-0E030iAXUH85..M202207-202408

main47759-42020iAXUH8#202111-202206

47941ABRACKET, BRAKE POWER SUPPLY, NO.1

main47941-0E010iAXUH85..M202111-202408

47942BRACKET, BRAKE POWER SUPPLY, NO.2

main47942-0E010iAXUH85..M202111-202408

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXUH85..M202111-202408

9011006040

main90110-06040

90110C0001

main90110-C0001

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017910065

main90179-10065

90466C0026

main90466-C0026

9415180600

main94151-80600

9613741501

main96137-41501

21 parts on this diagram · 2 diagrams in section
