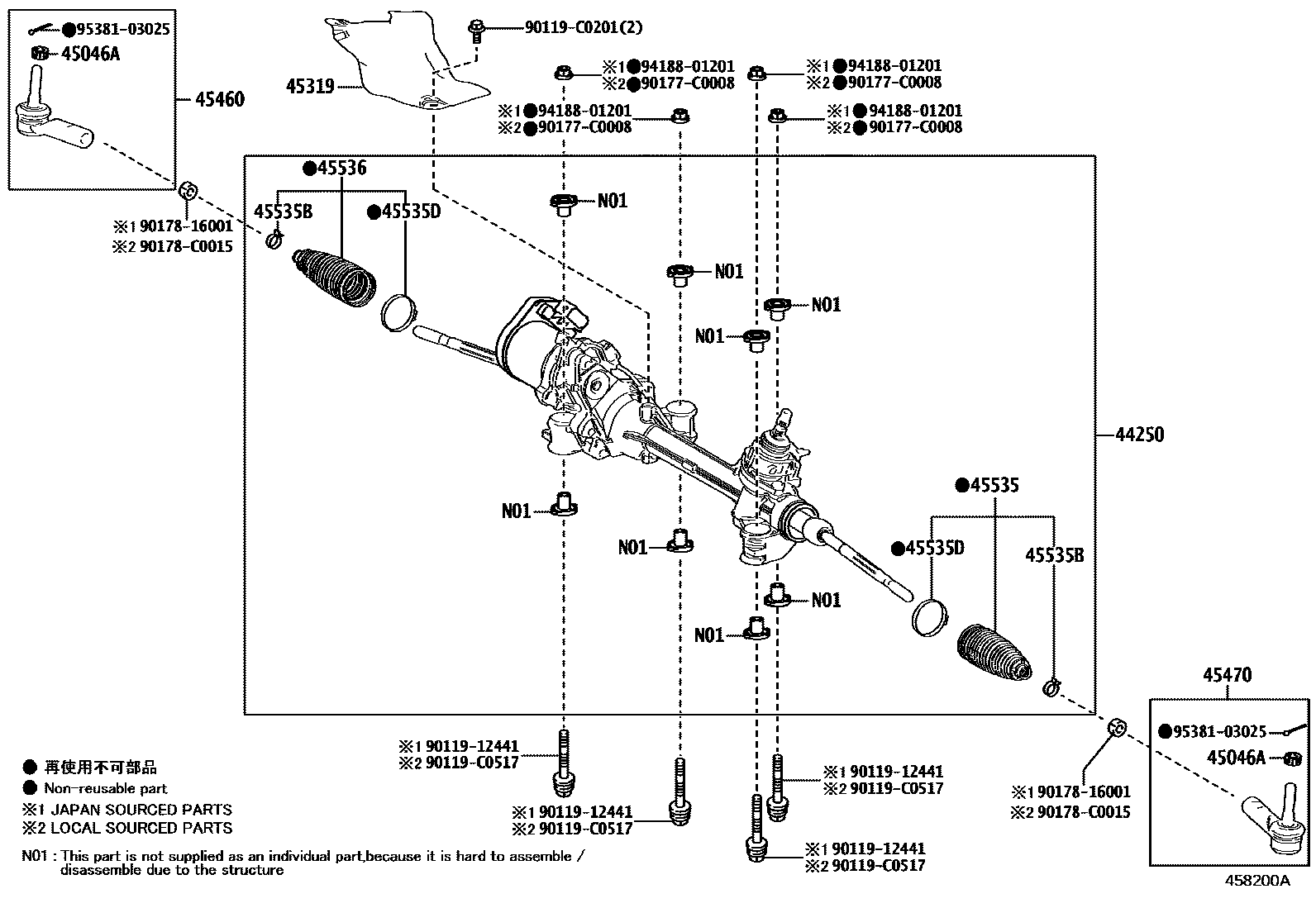

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0E110iAXUH80,MXUA80..M,X202111-202304

*614

main44250-0E120iAXUH85,MXUA80..G,S202111-202304

*614

main44250-0E240iAXUH80,MXUA80..M,X202304-202409

*614

main44250-0E250iMXUA80..G;AXUH85..G,S202304-202409

*614

main44250-0E320iAXUH80,MXUA80..M,X202409

*614

main44250-0E330iMXUA80..G;AXUH85..G,S202409

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXUH85202111-202304

main90171-12015iAXUH85..G,S202304-202408

(J)

main90171-12016iAXUH80,MXUA80202111-202304

main90171-12016iMXUA80..S202304-202408

(J)

main90171-C0013iMXUA80..S202304-202408

(L)

main90171-C0014iAXUH85..G,S202304-202408

(L)

45319INSULATOR, STEERING GEAR HEAT

main45319-0R020iAXUH85..M;MXUA80..S202111-202408

45460ROD ASSY, TIE, RH

main45460-09430iAXUH85..M202111-202408

main45460-09440iMXUA80..S202111-202408

45470ROD ASSY, TIE, LH

main45460-09430iAXUH85..M202111-202408

main45460-09440iAXUH80,MXUA80..G,M,X202111-202408

45535BOOT, STEERING RACK, NO.1

main45535-09680iAXUH85..M;MXUA80..S202111-202408

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iAXUH85..M;MXUA80..S202111-202408

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D070iAXUH85..M;MXUA80..S202111-202408

45536BOOT, STEERING RACK, NO.2

main45535-09680iAXUH85..M;MXUA80..S202111-202408

9011912441

main90119-12441

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9017816001

main90178-16001

90178C0015

main90178-C0015

9418801201

main94188-01201

9538103025

main95381-03025

17 parts on this diagram · 1 diagram in section
