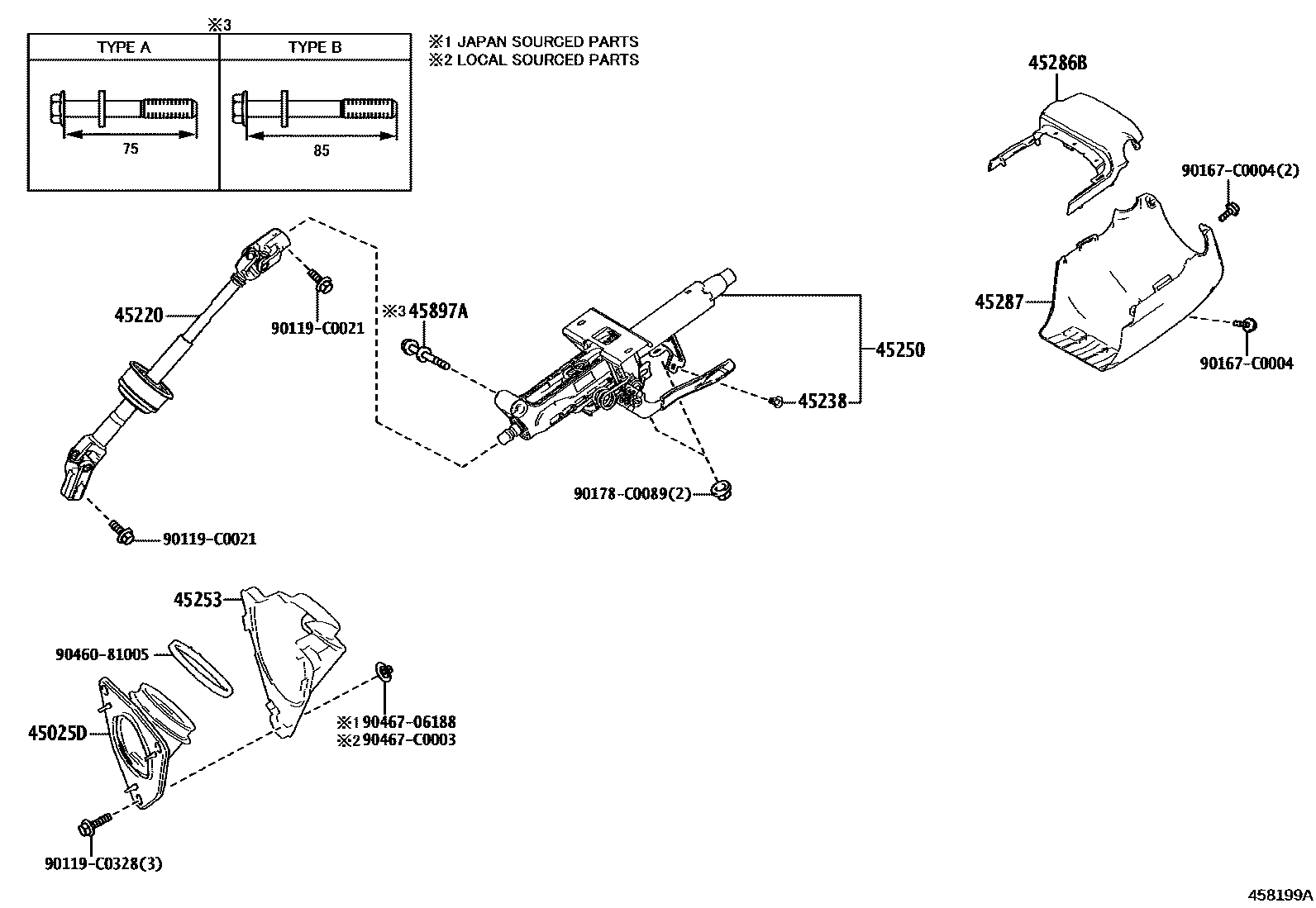

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0R050iAXUH85..M;MXUA80..S202111-202408

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0R020iAXUH85..M;MXUA80..S202111-202408

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXUH85..M;MXUA80..S202111-202408

45250COLUMN ASSY, STEERING

main45250-0R050iAXUH85..M;MXUA80..S202111-202408

45253COVER, STEERING COLUMN HOLE

main45253-0R020iAXUH85..M;MXUA80..S202111-202408

45286BCOVER, STEERING COLUMN, UPR

main45286-07070-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#

main45286-07070-C0iMXUA80..X202111

BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45287-07090-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main45287-07090-C0iMXUA80..X202111

BLACK,TRIM1#,2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXUH85..M;MXUA80..S202111-202408

TYPE A:REFER ILLUST.

main90119-C0427iAXUH85..M;MXUA80..S202111-202408

TYPE B:REFER ILLUST.

90119C0021

main90119-C0021

90119C0328

main90119-C0328

90167C0004

main90167-C0004

90178C0089

main90178-C0089

9046081005

main90460-81005

9046706188

main90467-06188

90467C0003

main90467-C0003

15 parts on this diagram · 1 diagram in section
