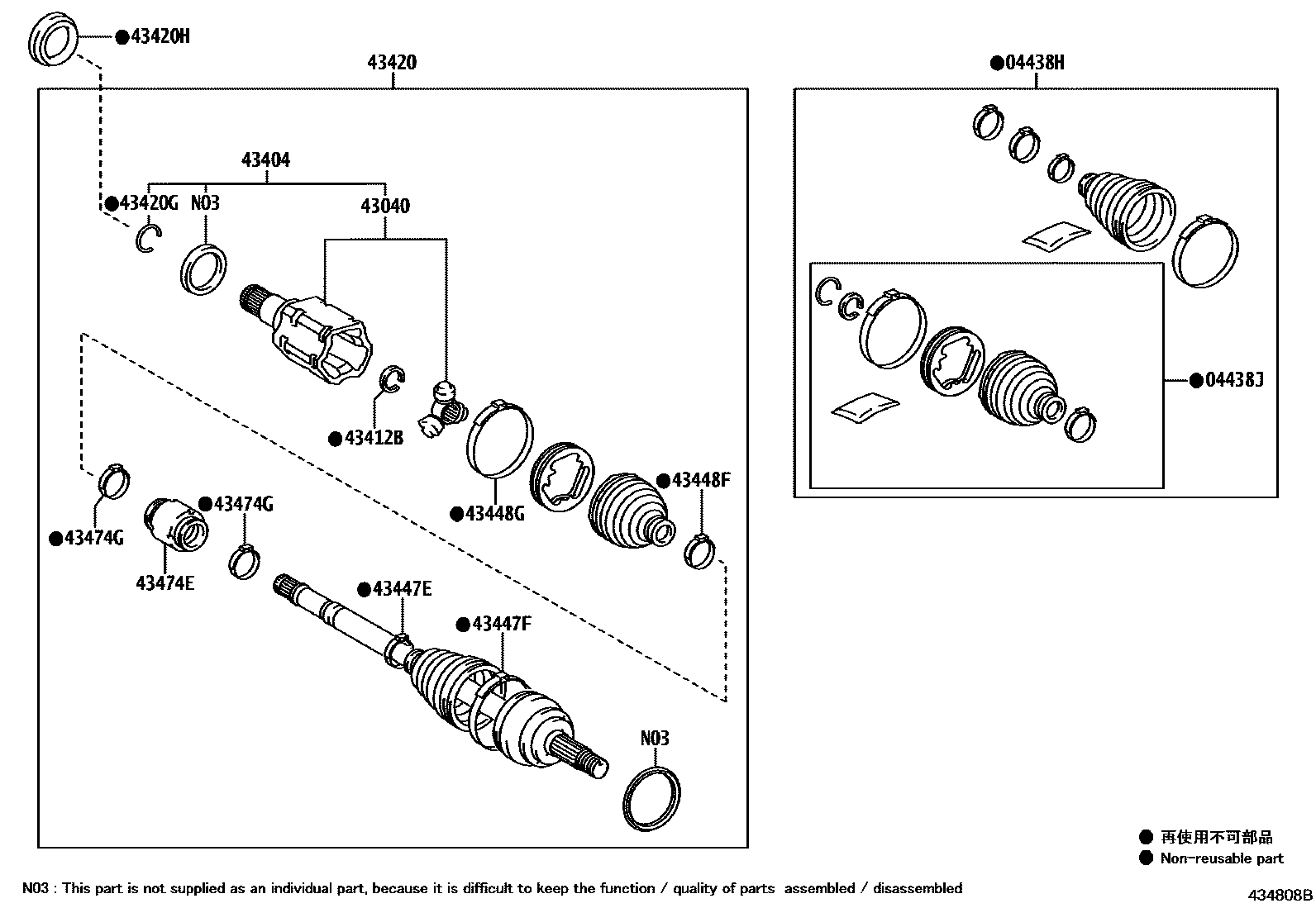

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-02B60iAXUH8#,MXUA80202111-202203

sub04427-02B62

main04427-02B63iAXUH85..M202203-202408

main04427-0E170iMXUA80..G,M,X202203-202408

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-02A70iAXUH85..M;MXUA80..S202111-202408

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0E210iAXUH85..M;MXUA80..S202111-202408

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-0E070iAXUH85..M;MXUA80..S202111-202408

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-F4070iAXUH85..M;MXUA80..S202111-202408

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-0E261iMXUA80..S202111-202408

main43420-0E271iAXUH80;AXUH85..G,S202111-202408

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-0E300iAXUH85..M;MXUA80..S202111-202408

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iMXUA80..G,M,X202111-202408

main90311-C0058iAXUH85..M202111-202408

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-F4170iAXUH85..M;MXUA80..S202111-202408

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-F4180iAXUH85..M;MXUA80..S202111-202408

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4170iAXUH85..M;MXUA80..S202111-202408

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4200iAXUH85..M;MXUA80..S202111-202408

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-0E190iAXUH85..M202111-202408

main43474-0R150iMXUA80..G,M,X202111-202408

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-0E560iAXUH85..M202111-202408

main42345-0R270iMXUA80..G,M,X202111-202408

14 parts on this diagram · 2 diagrams in section
