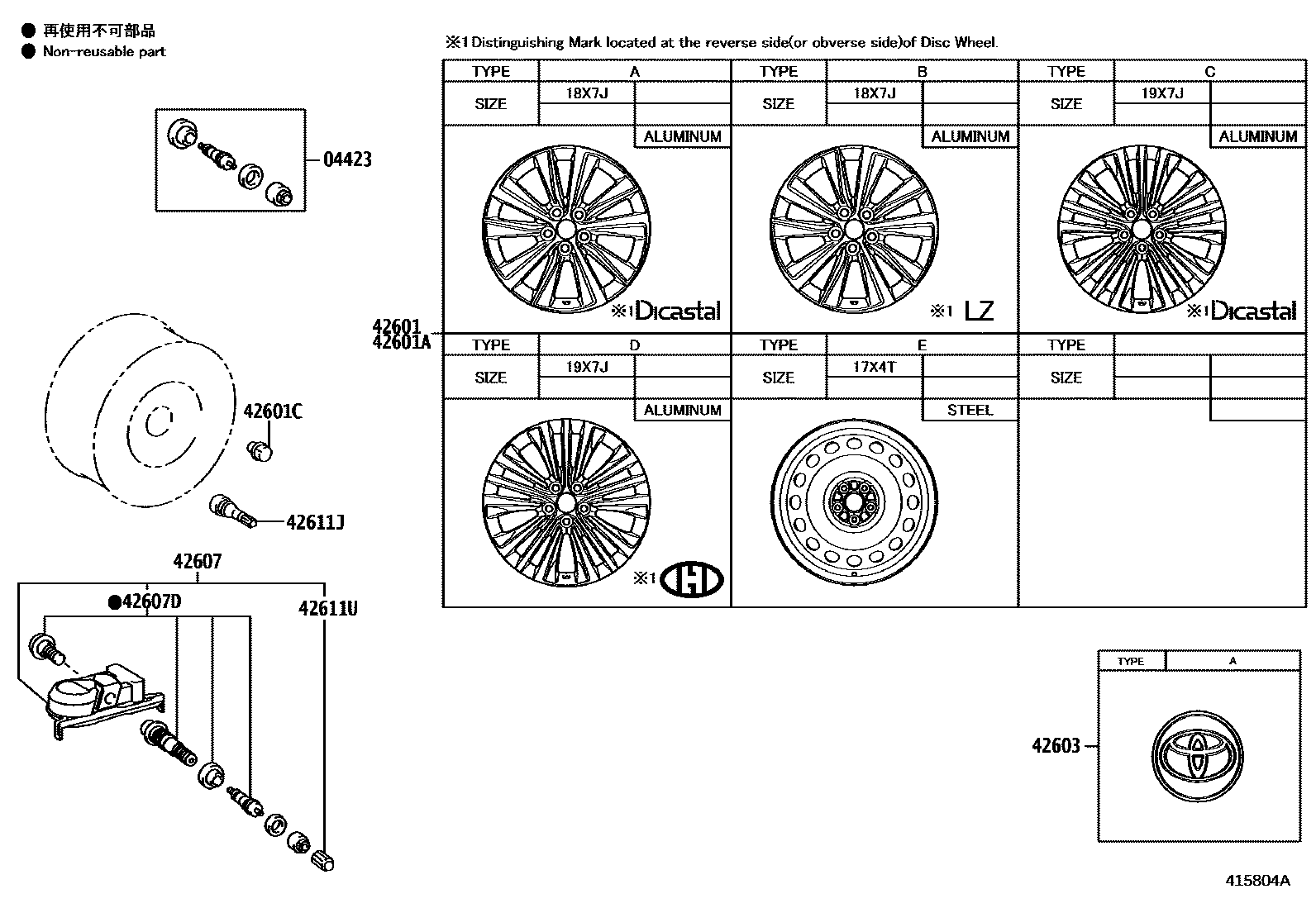

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010iAXUH85..M;MXUA80..S202111-202408

42601WHEEL, DISC

main42611-0E740iAXUH80,MXUA80..M,X202111-202408

18X7J, #,TYPE A:REFER ILLUST.

main42611-0E750iAXUH85..M202111-202408

18X7J, #,TYPE B:REFER ILLUST.

main4261A-0E240iMXUA80..S202111-202408

19X7J,#,TYPE C:REFER ILLUST.

main4261A-0E250iMXUA80..G;AXUH85..G,S202111-202408

19X7J,#,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0R040iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

17X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020iAXUH85..M;MXUA80..S202111-202408

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090iAXUH85..M;MXUA80..S202111-202408

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003iAXUH85..M;MXUA80..S202111-202408

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXUH85..M;MXUA80..S202111-202408

(J)

main90942-C5004iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

(L)

42611UCAP, TIRE VALVE

main90942-C5001iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

9 parts on this diagram · 2 diagrams in section
