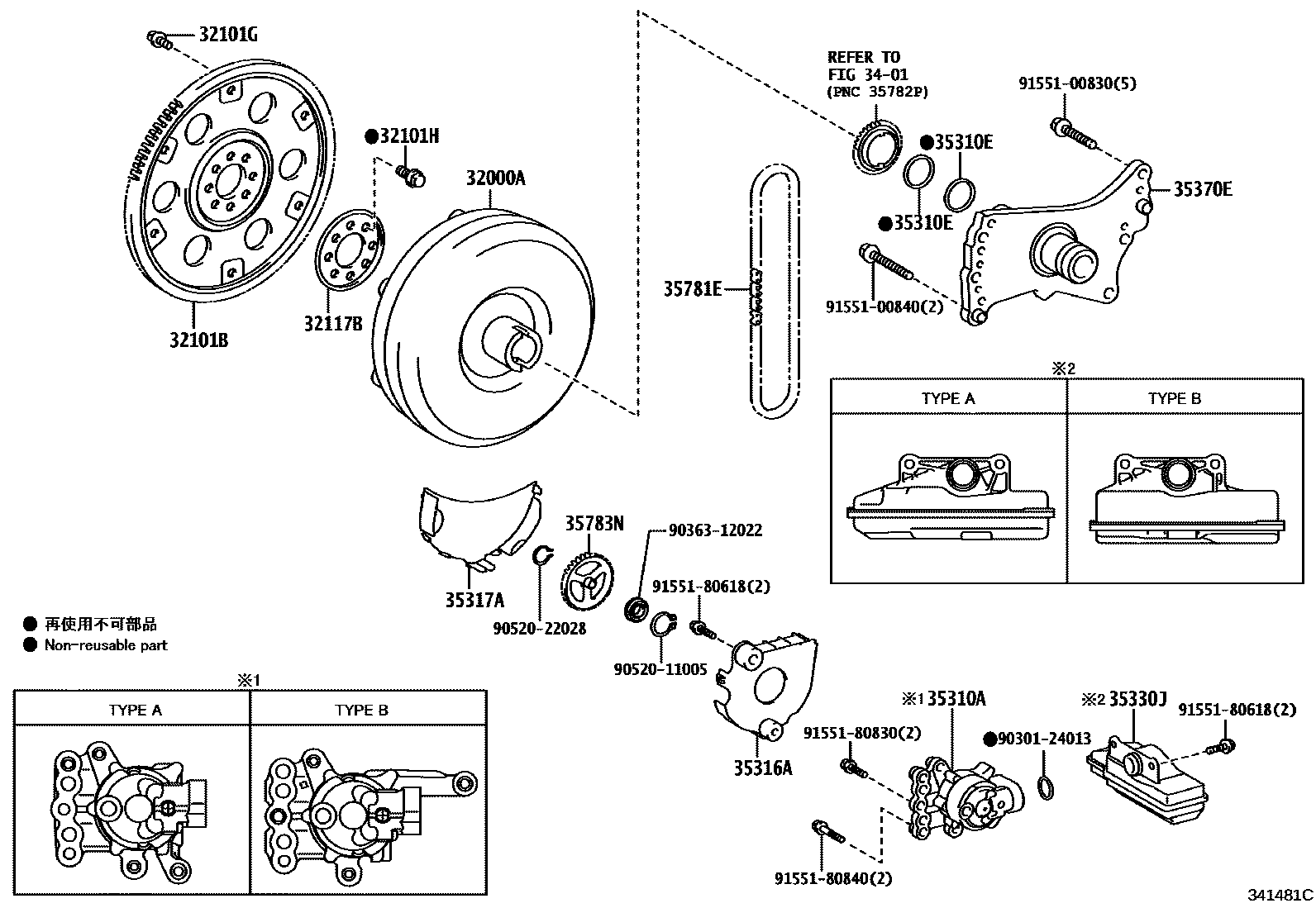

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120 0002 1K121

32000ACONVERTER ASSY, TORQUE

main32000-12520iMXUA80..S¥74,000202111-202408

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMXUA80..S202111-202408

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXUA80..S¥80202111-202408

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXUA80..G,M,X¥80202111-202408

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXUA80..S¥100202111-202408

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMXUA80..S202111-202408

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXUA80¥16,000202111-202304

TYPE A:REFER ILLUST.

main35310-28050iMXUA80¥14,500202111-202304

TYPE B:REFER ILLUST.

main35310-42010iMXUA80..S202304-202408

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMXUA80..S¥160202111-202408

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMXUA80..S¥980202111-202408

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMXUA80..S¥590202111-202408

35330JSTRAINER ASSY, OIL

main35330-12080iMXUA80¥3,950202111-202304

TYPE A:REFER ILLUST.

main35330-28040iMXUA80¥3,580202111-202304

TYPE B:REFER ILLUST.

main35330-28040iMXUA80..S¥3,580202304-202408

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMXUA80..S¥14,900202111-202408

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXUA80¥5,100202111-202304

main35781-42010iMXUA80..S¥1,420202304-202408

35783NSPROCKET, DRIVEN

main35783-12060iMXUA80..S¥1,310202111-202408

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

23 parts on this diagram · 2 diagrams in section
