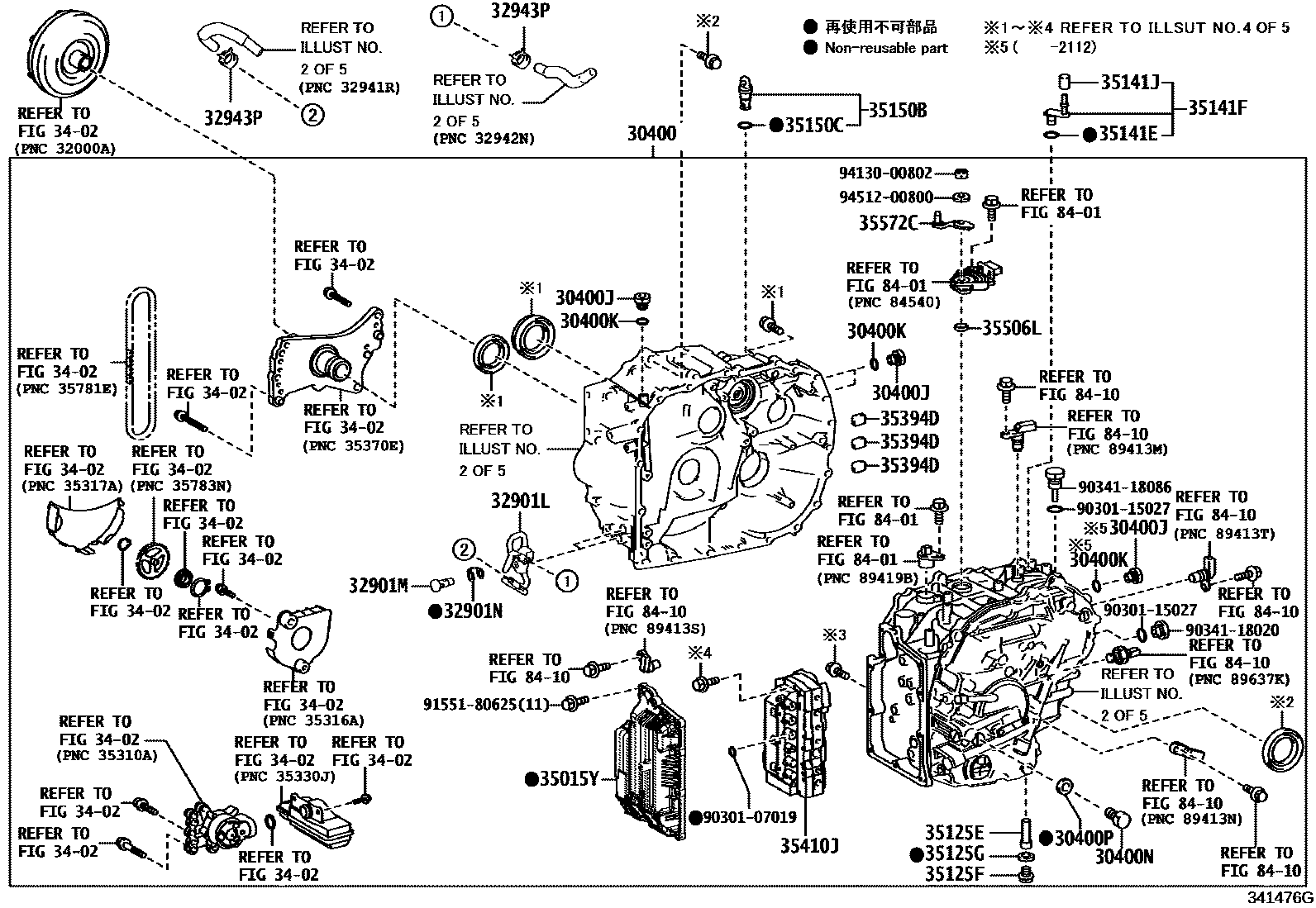

TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K120
K121
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
32901LELBOW SUB-ASSY, OIL COOLER
32901MBOLT, UNION(FOR OIL COOLER)
32901NGASKET(FOR OIL COOLER UNION)
32943PCLIP, NO.1(FOR OIL COOLER HOSE)
(J)
(L)
3402
35015YCOVER SUB-ASSY, TRANSAXLE SIDE
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35394DMAGNET, OIL CLEANER(CVT)
35410JBODY ASSY, TRANSMISSION VALVE
35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
8401
8410
9030107019
main90301-07019
9030115027
main90301-15027
9034118020
main90341-18020
9034118086
main90341-18086
9155180625
main91551-80625
9413000802
main94130-00802
9451200800
main94512-00800
32 parts on this diagram · 7 diagrams in section
