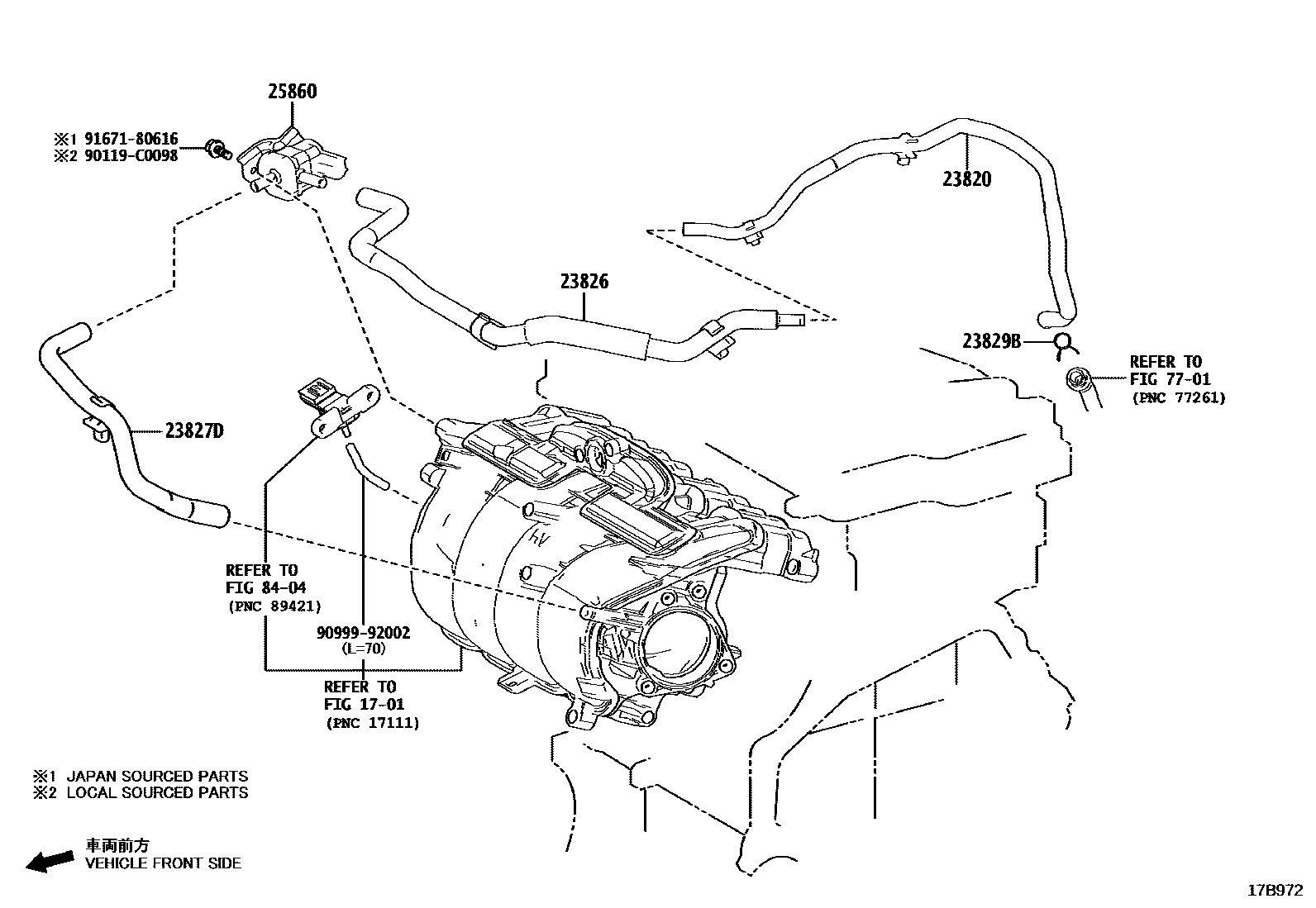

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1W(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0490iA25FFXS..AXUH85..G,S202111-202408

main23820-F0540iA25FFXS..AXUH80202111

main23820-F2030iM20DFKS..MXUA80..G,M,X202111-202408

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111-202408

(J)

main23820-F0410iA25FFXS..AXUH85..M202111-202408

(L)

main23826-F0210iM20DFKS..MXUA80..G,M,X202111-202408

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25FFXS..AXUH85..M202111-202408

(J)

main23820-F0420iA25FFXS..AXUH85..M202111-202408

(L)

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0039iA25FFXS..AXUH85..M202111-202408

main96133-41501iM20DFKS..MXUA80..G,M,X202111-202408

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25FFXS..AXUH85..M202111-202408

(J)

main25860-F0070iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111-202408

(L)

main25860-F2050iM20DFKS..MXUA80..G,M,X202111-202408

7701

8404

90119C0098

main90119-C0098

9099992002

main90999-92002

9167180616

main91671-80616

11 parts on this diagram · 4 diagrams in section
