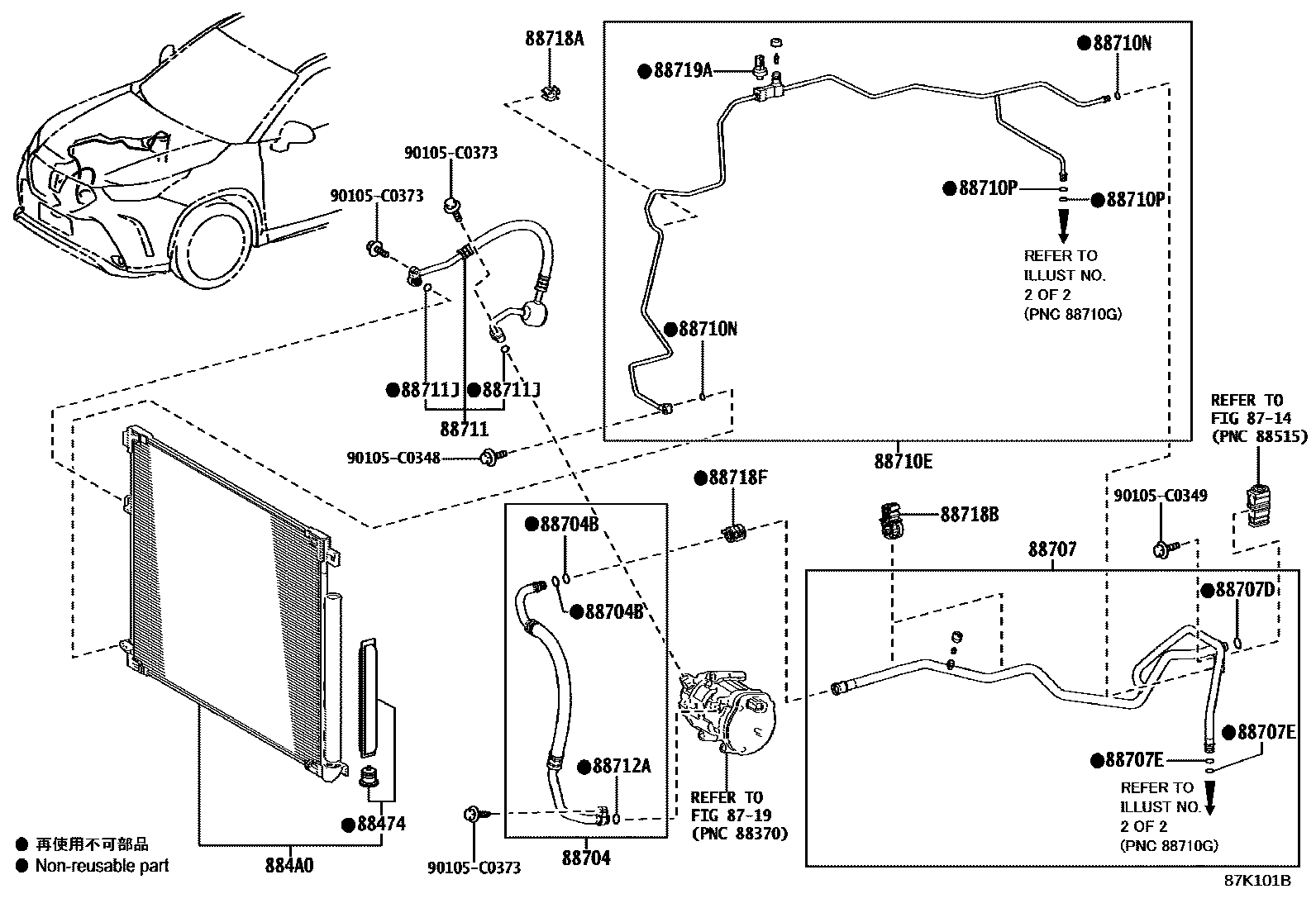

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88474DRYER, COOLER
88704BRING, O(FOR SUCTION HOSE)
ID=14,OD=17.56
88707PIPE SUB-ASSY, SUCTION
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88707ERING, O, NO.2(FOR SUCTION TUBE)
ID=14,OD=17.56
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=7.65,OD=11.21
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
ID=13.4,OD=18.2
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
(L)
(J)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
(L)
(J)
88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88719ASENSOR, AIR CONDITIONER PRESSURE
90105C0348
main90105-C0348
90105C0349
main90105-C0349
90105C0373
main90105-C0373
22 parts on this diagram · 6 diagrams in section
