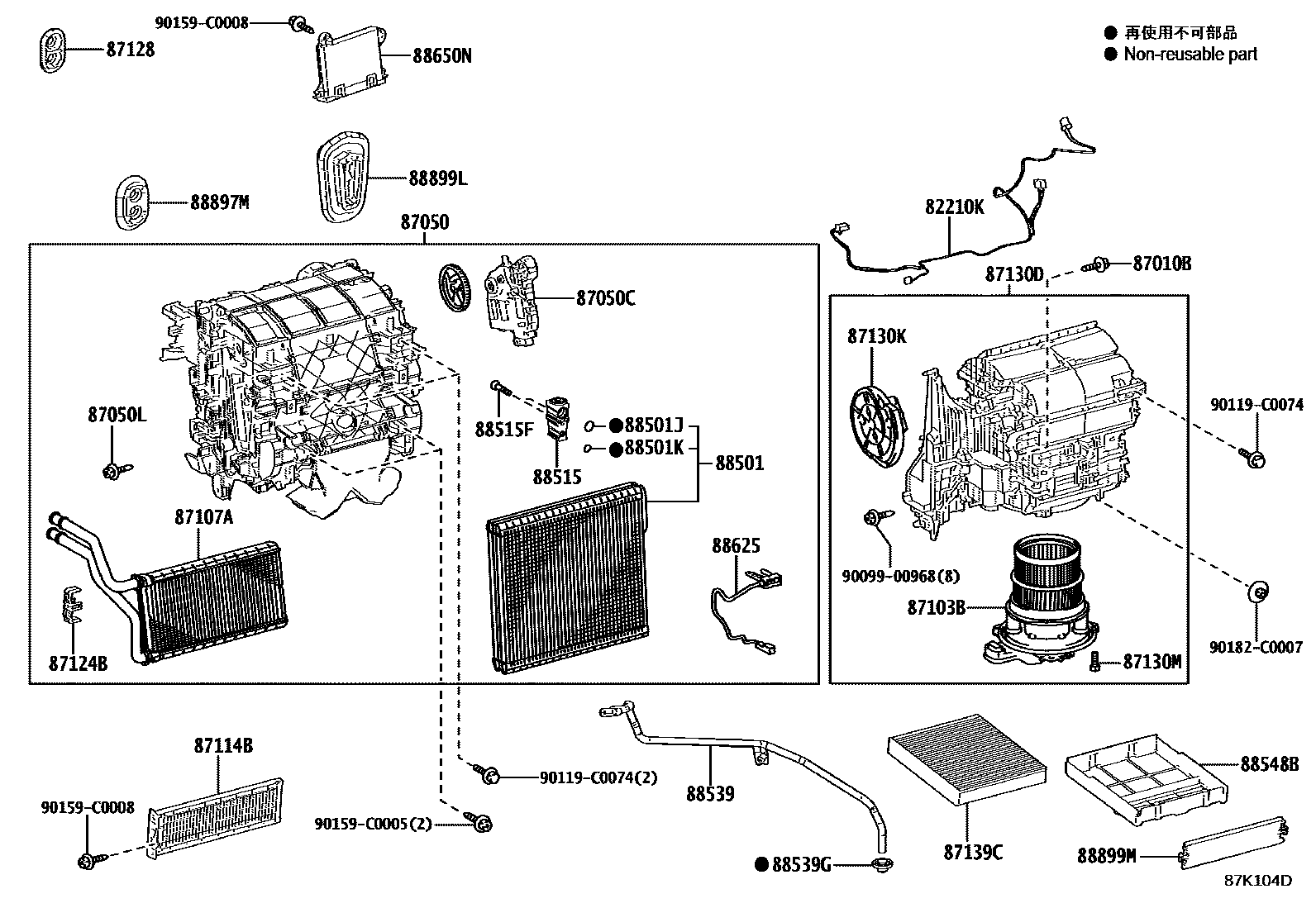

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87010BSCREW(FOR AIR CONDITIONER UNIT)
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050LSCREW(FOR AIR CONDITIONER RADIATOR)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124BCLAMP, HEATER
87128GROMMET, HEATER
(L)
(J)
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
MICRO DUST FILTER,OE PART
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=10.8,OD=15.6
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539HOSE, COOLER UNIT DRAIN, NO.1
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
90119C0074
main90119-C0074
90159C0005
main90159-C0005
90159C0008
main90159-C0008
90182C0007
main90182-C0007
32 parts on this diagram · 2 diagrams in section
