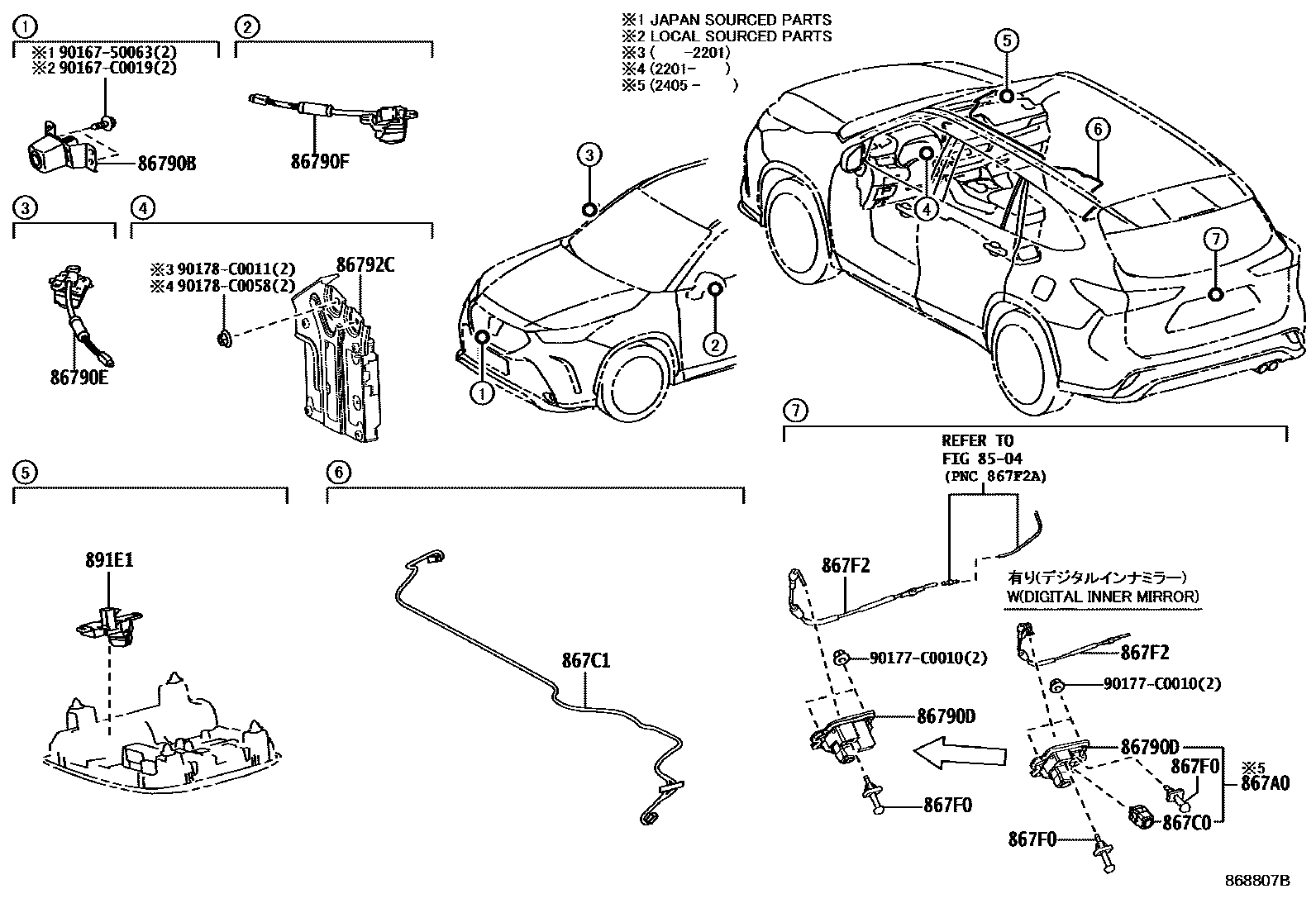

CAMERA & REAR MONITOR DISPLAY

8504

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E190iAXUH79,SXUA75..G,M202108-202405

main86790-0E700iAXUH7#,SXUA75..G,M202405-202509

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E230iAXUH79,SXUA75..G202108-202405

main86790-0E300iAXUH79..M;SXUA75..M,N202108-202405

main86790-0E690iAXUH7#,SXUA75..M,N202405-202509

main86790-0E730iAXUH79,SXUA75..G202405-202509

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E250iAXUH79,SXUA75..G,M202108-202405

main86790-0E720iAXUH7#,SXUA75..G,M202405-202509

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E240iAXUH79,SXUA75..G,M202108-202405

main86790-0E710iAXUH7#,SXUA75..G,M202405-202509

86792CCOMPUTER, PARKING ASSIST

main86792-0E020iAXUH79,SXUA75..G,M202108-202405

main86792-0E170iAXUH7#,SXUA75..G,M202405-202509

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-0E090iAXUH79,SXUA75..G202405-202509

867C0CAMERA ASSY, INNER MIRROR

main867C0-0E020iAXUH79,SXUA75..G202108-202405

867C1WIRE, MIRROR CAMERA

main867C1-0E090iAXUH79,SXUA75..G202108-202405

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-0E040iAXUH79..M;SXUA75..M,N202108-202405

867F2HOSE, CAMERA CLEANER

main867F2-0E090iAXUH79,SXUA75..G202108-202405

main867F2-0E160iAXUH7#,SXUA75..M,N202108-202405

891E1CAMERA, CABIN OBJECT RECOGNITION

main891E1-0E010iAXUH79,SXUA75..G202108-202405

WITHOUT(JBL)

main891E1-0E010iAXUH79,SXUA75..G202405

9016750063

main90167-50063

90167C0019

main90167-C0019

90177C0010

main90177-C0010

90178C0011

main90178-C0011

90178C0058

main90178-C0058

17 parts on this diagram · 1 diagram in section
