SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0E090iSXUA75..M202405-202509

main86150-0E090iAXUH79..G;SXUA75..G,M202108-202405

WITHOUT(JBL)

86160SPEAKER ASSY, FRONT NO.1

main86160-06880iAXUH79,SXUA75..G202108-202509

main86160-07150iSXUA75..N;AXUH7#..M,N202108-202405

86160BSPEAKER ASSY, REAR

main86160-02C60iSXUA75..N;AXUH7#..M,N202108-202405

main86160-0E350iAXUH79,SXUA75..G202108-202509

86160JSPEAKER ASSY, FRONT NO.3

main86160-06A50iAXUH79..G;SXUA75..G,M202108-202509

main86160-07140iSXUA75..N;AXUH7#..M,N202108-202405

86160PSPEAKER ASSY, FRONT NO.2

main86150-07120iAXUH79..G;SXUA75..G,M202108-202405

WITHOUT(JBL)

main86150-07120iSXUA75..M202405-202509

86160YSPEAKER ASSY, REAR NO.2

main86160-06A50iAXUH79..G;SXUA75..G,M202108-202405

WITHOUT(JBL)

main86160-06A50iSXUA75..M202405-202509

90119C0074

main90119-C0074

90119C0093

main90119-C0093

90159C0006

main90159-C0006

90159C0022

main90159-C0022

9017906323

main90179-06323

90185C0002

main90185-C0002

90189C0033

main90189-C0033

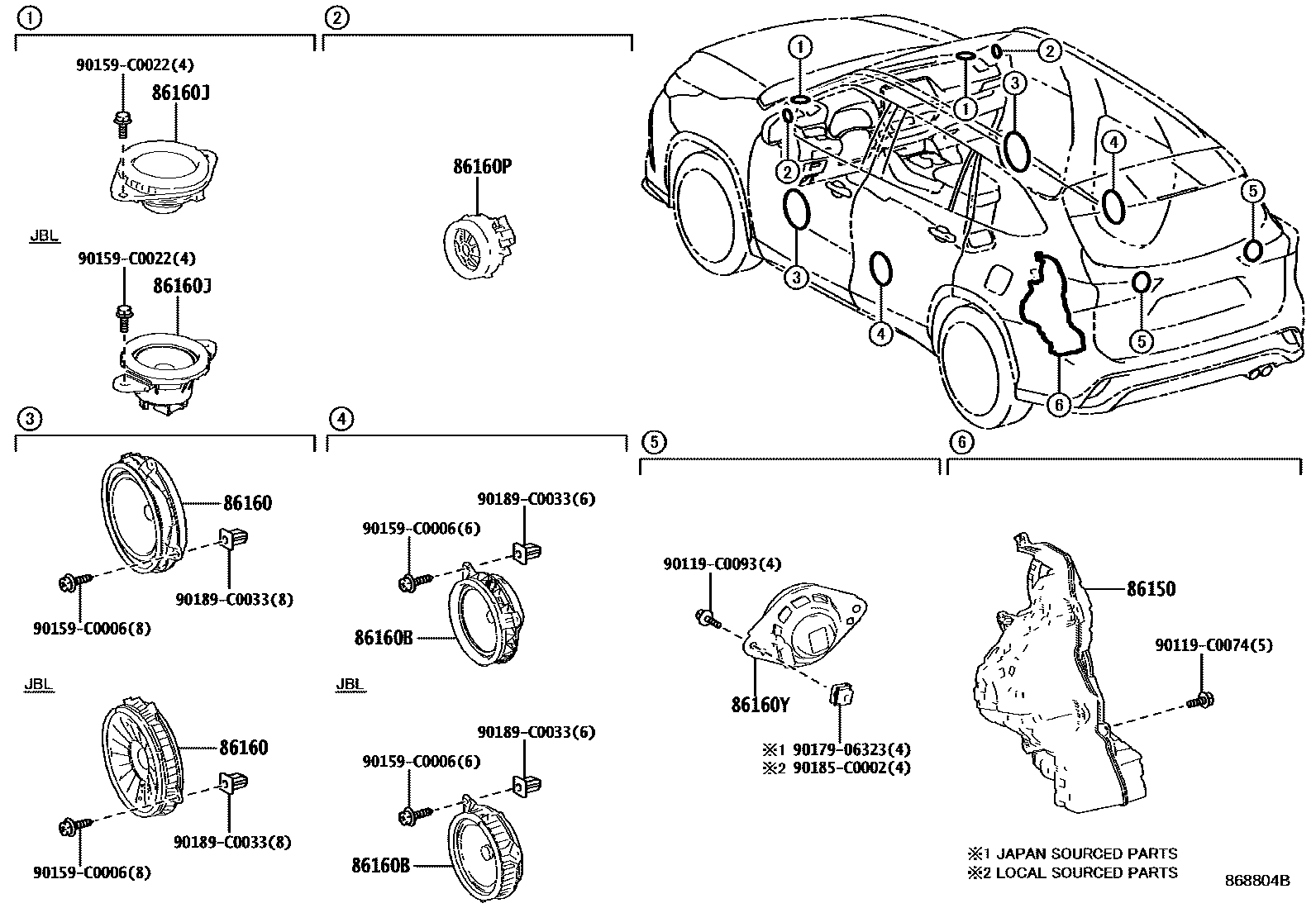

13 parts on this diagram · 1 diagram in section
