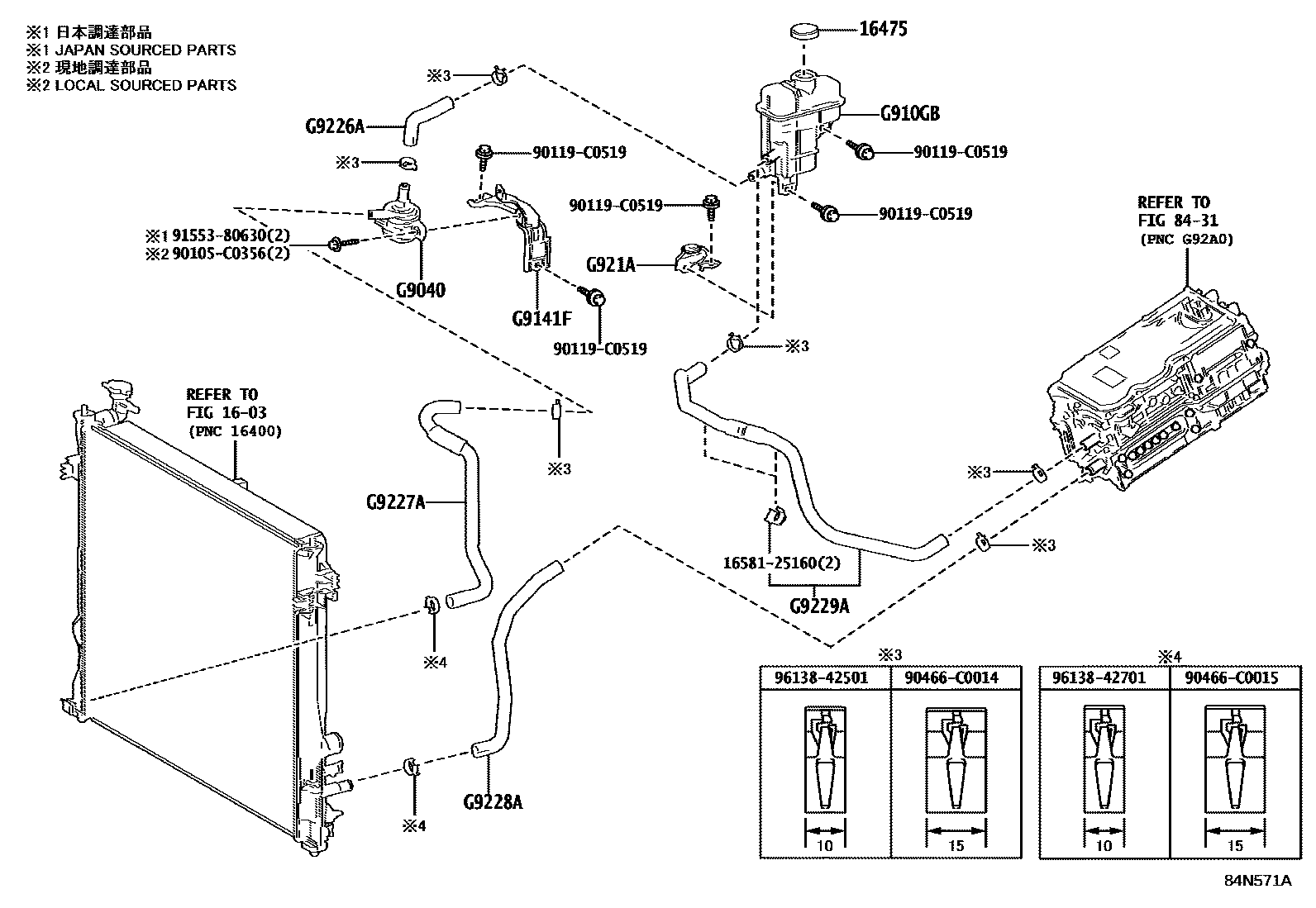

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iA25..AXUH7#202108-202405

LOCAL SOURCED PARTS

main16475-28140iA25..AXUH7#¥1,200202108-202405

JAPAN SOURCED PARTS

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXUH7#202303-202405

(L)

mainG90400E070iAXUH7#202405

(L)

mainG90400R030iAXUH7#202108-202303

(L)

mainG904042020iAXUH7#202108-202303

(J)

mainG904048050iAXUH7#202303-202405

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R020iAXUH7#202108-202405

G9141FBRACKET, HV WATER PUMP

mainG91410E060iAXUH7#202108-202405

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R020iAXUH7#202108-202405

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260E040iAXUH7#202108-202405

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E020iAXUH7#202108-202405

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E020iAXUH7#202108-202405

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E030iAXUH7#202108-202405

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

19 parts on this diagram · 1 diagram in section
