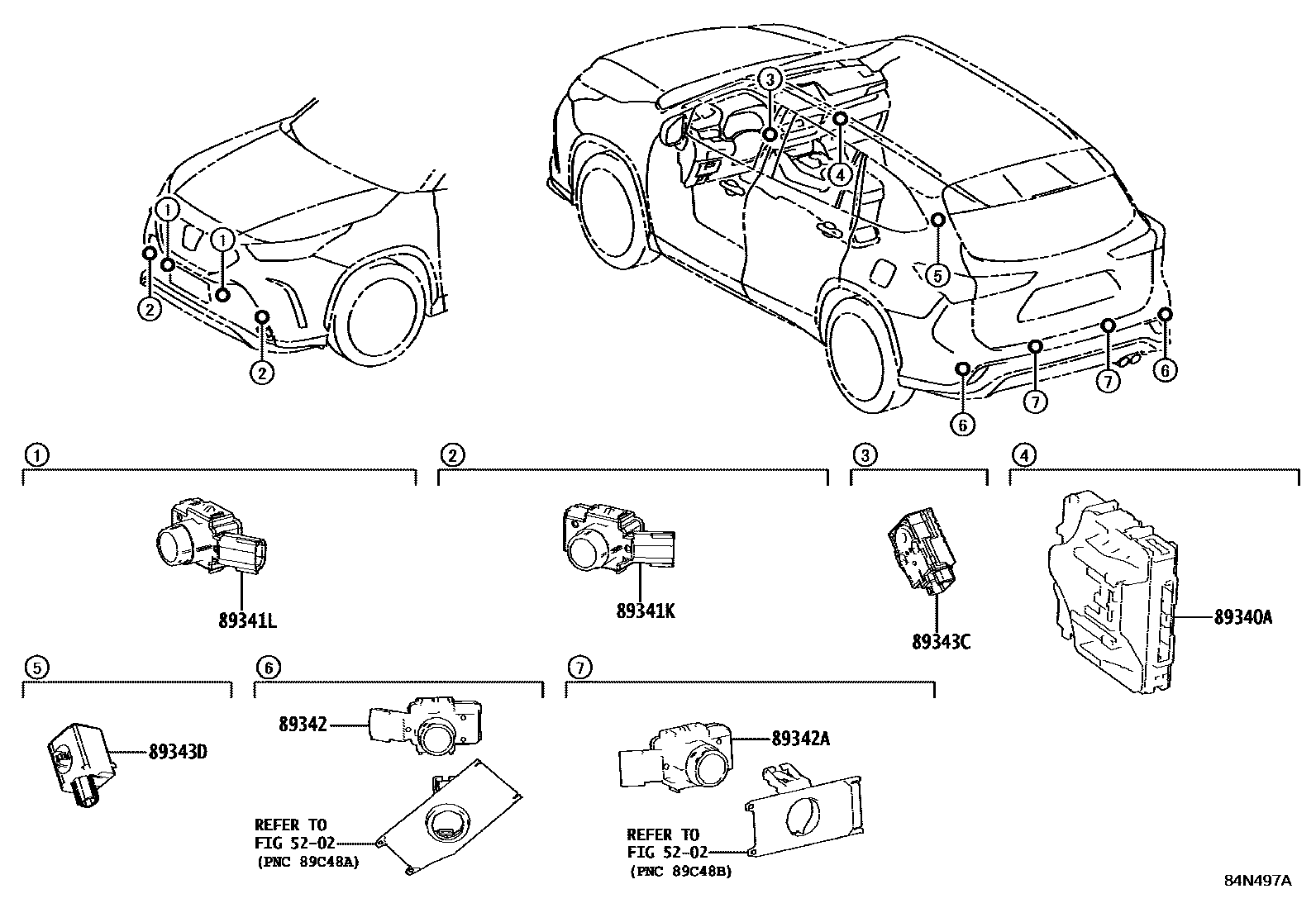

CLEARANCE & BACK SONAR

0001 1 0002 1

5202

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0E310iSXUA75..G;AXUH7#..G,M202405

*614

main89340-48410iAXUH79..G,M202108-202405

main89340-48530iSXUA75..G202209-202405

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0R080-C6iSXUA75..G;AXUH7#..G,M202405

BLACK ME.

sub89341-0R100

main89341-48070-C1iSXUA75..G;AXUH79..G,M202108-202405

BLACK ME.

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-0R080-C6iSXUA75..G;AXUH7#..G,M202405

BLACK ME.

sub89341-0R100

main89341-48070-C1iSXUA75..G;AXUH79..G,M202108-202405

BLACK ME.

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0R080-A0iSXUA75..G;AXUH7#..G,M202405

PLATINUM WHITE PEARL MC.,089

sub89341-0R100

main89341-0R080-B2iSXUA75..G;AXUH7#..G,M202405

METAL STREAM ME,1K0

sub89341-0R100

main89341-0R080-C0iSXUA75..G;AXUH7#..G,M202405

BLACK MC.,209

sub89341-0R100

main89341-0R080-E3iSXUA75..G;AXUH7#..G,M202405

BLACKISH BROWN MC.,4X9

sub89341-0R100

main89341-0R080-J1iSXUA75..G;AXUH7#..G,M202405

DK. BLUE MC.,8X8

sub89341-0R100

main89341-48070-A0iSXUA75..G;AXUH79..G,M202108-202405

PLATINUM WHITE PEARL MC.,089

main89341-48070-B0iSXUA75..G;AXUH79..G,M202108-202405

METAL STREAM ME,1K0

main89341-48070-C0iSXUA75..G;AXUH79..G,M202108-202405

BLACK MC.,209

main89341-48070-D0iSXUA75..G;AXUH79..G,M202108-202405

RED MC.,3T3

main89341-48070-E0iSXUA75..G;AXUH79..G,M202108-202405

BLACKISH BROWN MC.,4X9

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0R080-A0iSXUA75..G;AXUH7#..G,M202405

PLATINUM WHITE PEARL MC.,089

sub89341-0R100

main89341-0R080-B2iSXUA75..G;AXUH7#..G,M202405

METAL STREAM ME,1K0

sub89341-0R100

main89341-0R080-C0iSXUA75..G;AXUH7#..G,M202405

BLACK MC.,209

sub89341-0R100

main89341-0R080-E3iSXUA75..G;AXUH7#..G,M202405

BLACKISH BROWN MC.,4X9

sub89341-0R100

main89341-0R080-J1iSXUA75..G;AXUH7#..G,M202405

DK. BLUE MC.,8X8

sub89341-0R100

main89341-48070-A0iSXUA75..G;AXUH79..G,M202108-202405

PLATINUM WHITE PEARL MC.,089

main89341-48070-B0iSXUA75..G;AXUH79..G,M202108-202405

METAL STREAM ME,1K0

main89341-48070-C0iSXUA75..G;AXUH79..G,M202108-202405

BLACK MC.,209

main89341-48070-D0iSXUA75..G;AXUH79..G,M202108-202405

RED MC.,3T3

main89341-48070-E0iSXUA75..G;AXUH79..G,M202108-202405

BLACKISH BROWN MC.,4X9

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010iSXUA75..G;AXUH79..G,M202108-202405

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-30040iSXUA75..G;AXUH79..G,M¥2,900202108-202405

8 parts on this diagram · 2 diagrams in section
