WIRING & CLAMP

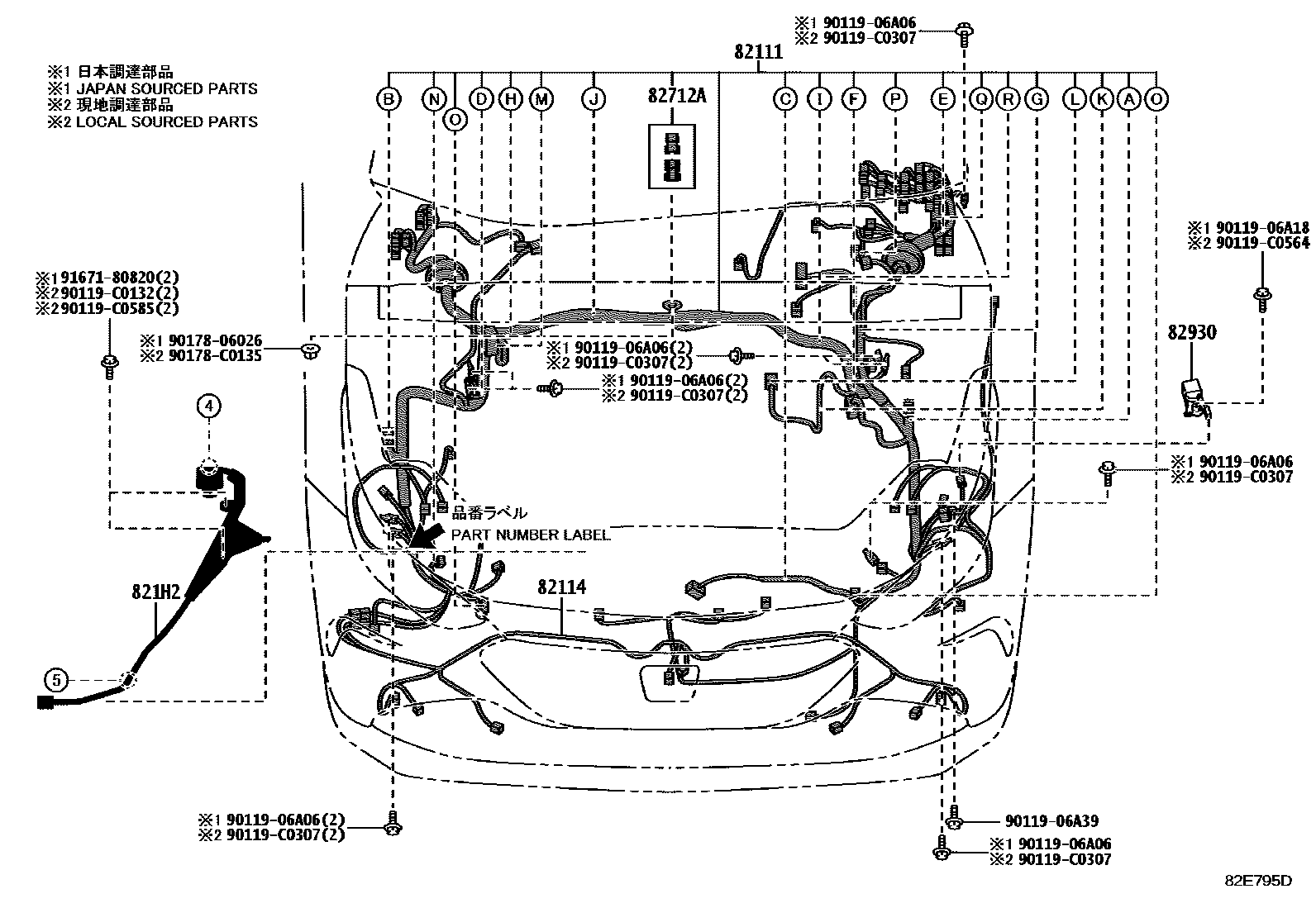

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82115-0E050i202108-202301

P/N LABEL=821150E050

main82115-0E051i202303-202405

P/N LABEL=821150E051

main82115-0E060i202108-202301

P/N LABEL=821150E060

main82115-0E061i202303-202405

P/N LABEL=821150E061

main82115-0E070i202108-202301

P/N LABEL=821150E070

main82115-0E071i202303-202405

P/N LABEL=821150EX71

main82115-0E080i202108-202301

P/N LABEL=821150E080

main82115-0E081i202303-202405

P/N LABEL=821150E081

main82115-0E350i202209-202405

main82115-0E360i202209-202405

main82115-0E370i202209-202405

main82115-0EW30i202405-202509

P/N LABEL=821150EW30

main82115-0EW40i202405-202509

P/N LABEL=821150EW40

main82115-0EW50i202405-202509

P/N LABEL=821150EW50

main82115-0EW60i202405-202509

P/N LABEL=821150EW60

main82115-0EW70i202405-202509

P/N LABEL=821150EW70

main82115-0EX40i202301-202303

P/N LABEL=821150EX40

main82115-0EX50i202301-202303

main82115-0EX60i202301-202303

P/N LABEL=821150EX60

main82115-0EX70i202301-202303

P/N LABEL=821150EX70

main82115-0EY80i202405-202509

P/N LABEL=821150EY80

main82115-0EZ00i202405-202509

P/N LABEL=821150EZ00

main82115-0EZ10i202405-202509

P/N LABEL=821150EZ10

82114WIRE, ENGINE ROOM, NO.4

main82114-0E110i202209-202405

main82114-0E270i202108-202405

main82114-0E280i202108-202405

main82114-0EB30i202405-202509

main82114-0EB50i202405-202509

821H2WIRE, HV AIR CONDITIONER

main821H2-0E050i202108-202405

82712ASUPPORT, WIRING HARNESS

main82712-0E030i202108-202405

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-48050i202108-202405

9011906A06

main90119-06A06

9011906A18

main90119-06A18

9011906A39

main90119-06A39

90119C0132

main90119-C0132

90119C0307

main90119-C0307

90119C0564

main90119-C0564

90119C0585

main90119-C0585

9017806026

main90178-06026

90178C0135

main90178-C0135

9167180820

main91671-80820

15 parts on this diagram · 20 diagrams in section
