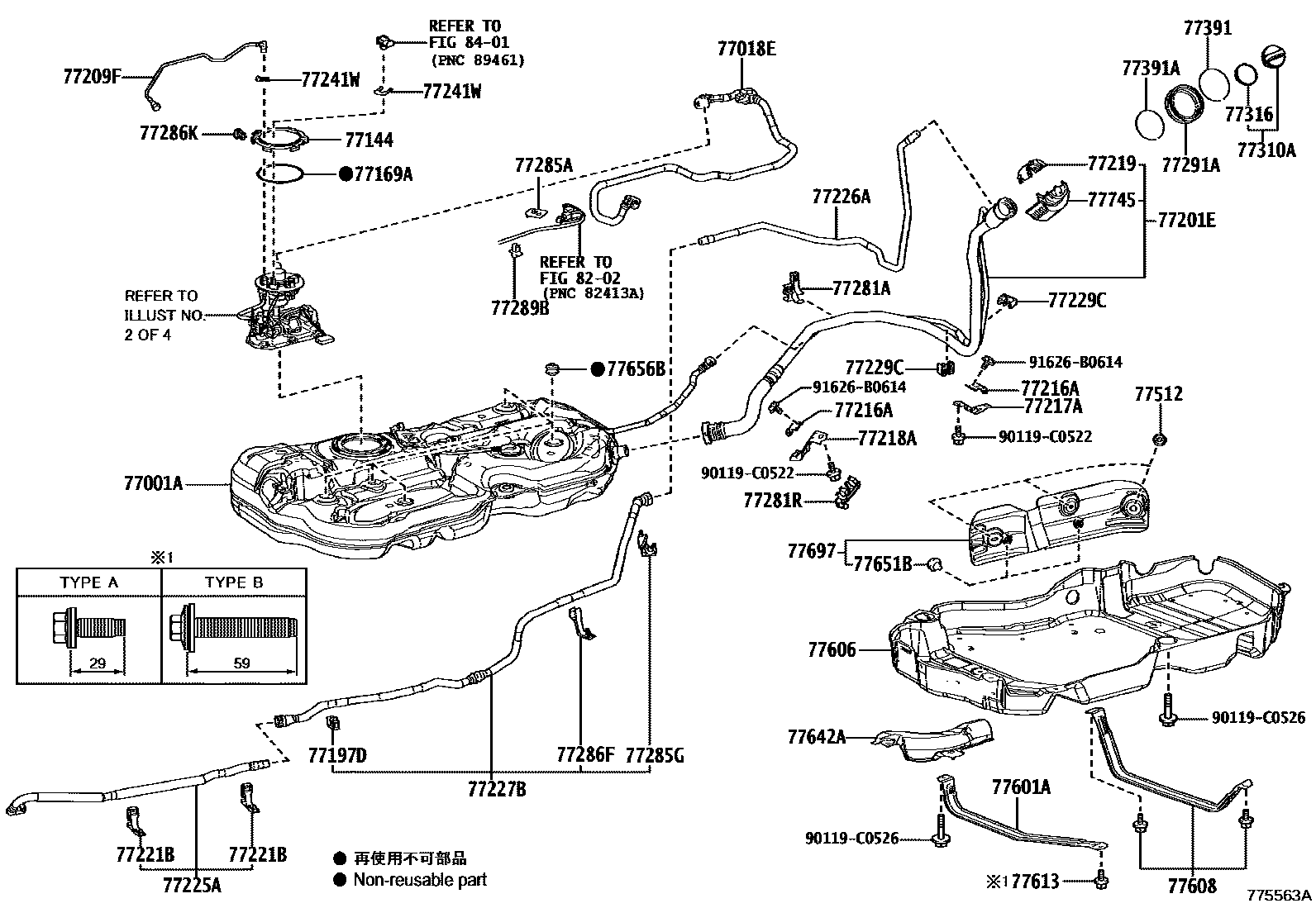

FUEL TANK & TUBE
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
(J)
(L)
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77221BCLAMP, BREATHR TUBE
77225ATUBE, FUEL TANK BREATHER, NO.5
77226ATUBE, FUEL TANK BREATHER, NO.6
77227BTUBE, FUEL TANK BREATHER, NO.7
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285ASUPPORT, FUEL RETURN AND MAIN TUBE
77286FCLAMP, FUEL TUBE, NO.2
77286KCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
(L)
(J)
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608BAND SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77642APROTECTOR, FUEL TANK, NO.2
77651BCUSHION, FUEL TANK
77656BCUSHION, FUEL TANK, NO.6
77697INSULATOR, FUEL TANK HEAT, NO.1
77745FILTER, CHARCOAL CANISTER, NO.1
8202
8401
90119C0522
main90119-C0522
90119C0526
main90119-C0526
91626B0614
main91626-B0614
44 parts on this diagram · 7 diagrams in section
