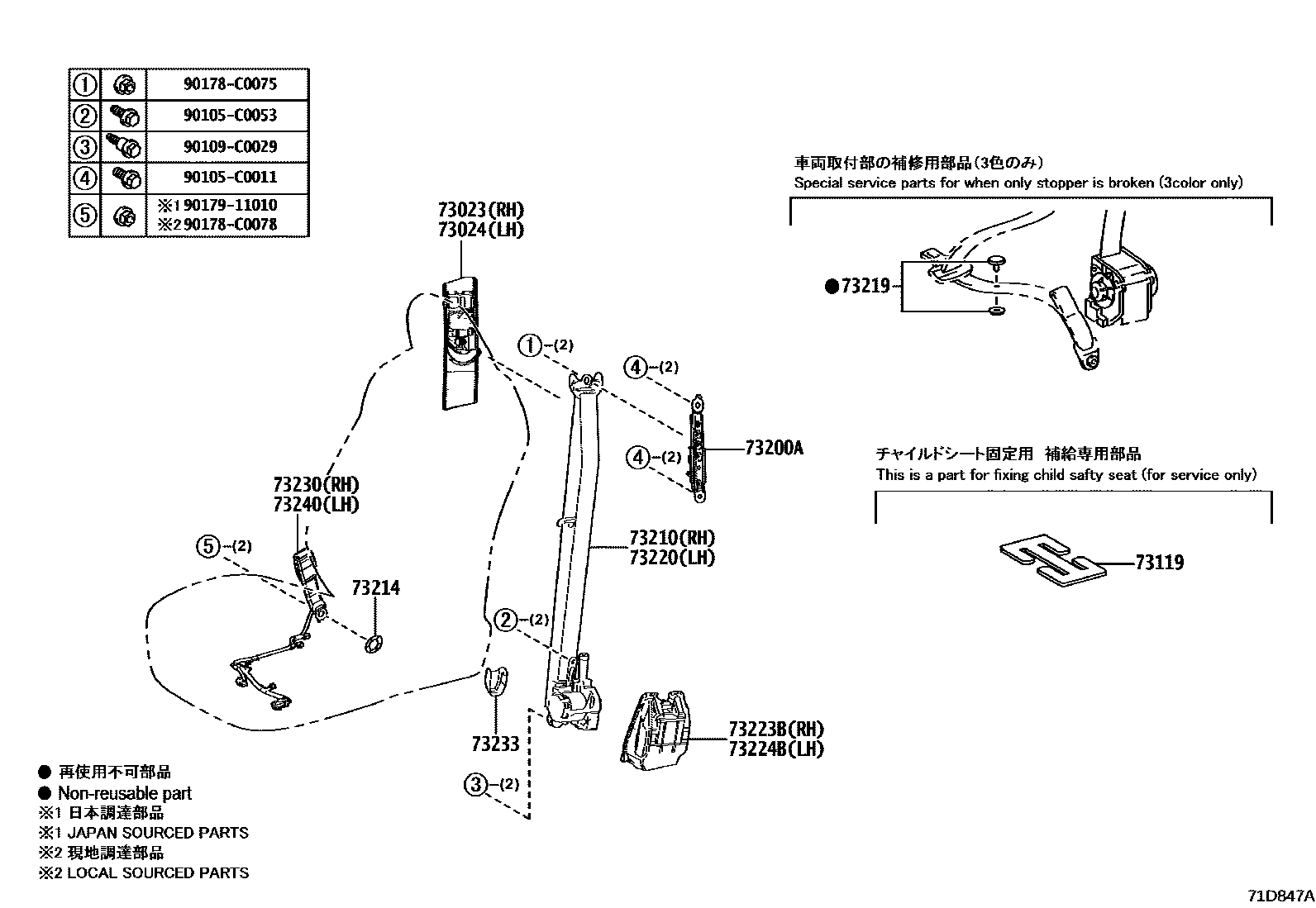

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02160-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

main73023-02160-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02160-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main73024-02160-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAXUH7#,SXUA75202108-202405

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020iAXUH7#,SXUA75202108-202405

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02760-C2iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main73210-02760-C2iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAXUH7#,SXUA75202108-202405

73219STOPPER, TONGUE PLATE

main73219-33010iAXUH7#,SXUA75202108-202405

BLACK

main73219-33020iAXUH7#,SXUA75202108-202405

GRAY

main73219-33030iAXUH7#,SXUA75202108-202405

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02680-C2iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main73220-02680-C2iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E080iAXUH7#,SXUA75202108-202405

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0E060iAXUH7#,SXUA75202108-202405

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0E420-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main73230-0E420-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C1iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main73233-0R030-C1iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E350-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main73230-0E400-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

main73230-0E410-C0iAXUH79..M;SXUA75..M,N202108-202405

BLACK,TRIM2#

main73230-0E410-C0iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

90105C0011

main90105-C0011

90105C0053

main90105-C0053

90109C0029

main90109-C0029

90178C0075

main90178-C0075

90178C0078

main90178-C0078

9017911010

main90179-11010

19 parts on this diagram · 3 diagrams in section
