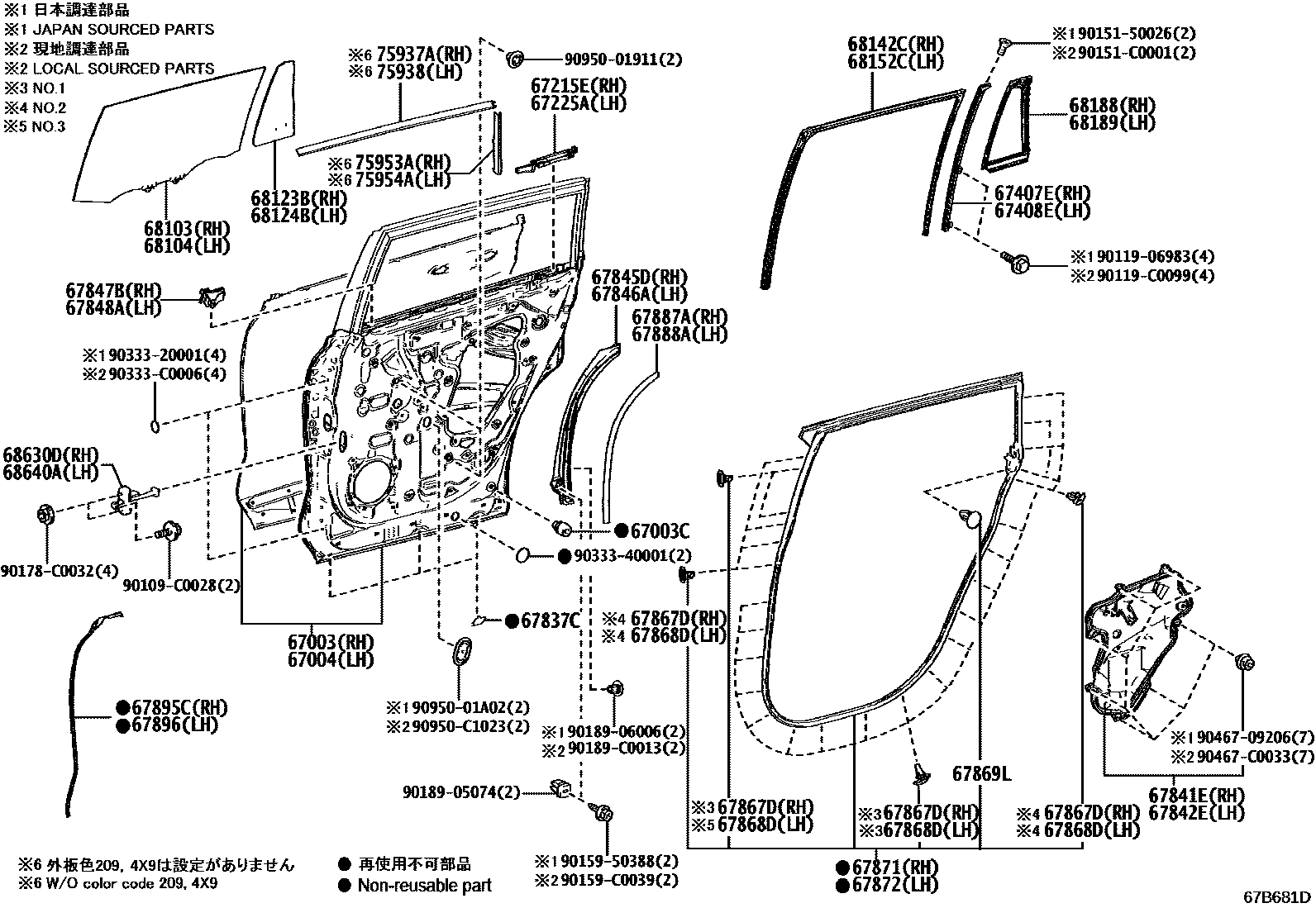

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
(J)
(L)
67004PANEL SUB-ASSY, REAR DOOR, LH
67215ESTOP, QUARTER WINDOW, UPPER RH
67225ASTOP, QUARTER WINDOW, UPPER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
NO.2(WHITE)
NO.1(BLUE)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
NO.2(WHITE)
NO.3(COFFEE)
NO.1(PINK)
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75937ATAPE, BLACK OUT, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
75938TAPE, BLACK OUT, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
75953ATAPE, BLACK OUT, INNER REAR RH
0 OR 1PIECE,REF.ILL.
75954ATAPE, BLACK OUT, INNER REAR LH
0 OR 1PIECE,REF.ILL.
90109C0028
main90109-C0028
9011906983
main90119-06983
90119C0099
main90119-C0099
9015150026
main90151-50026
90151C0001
main90151-C0001
9015950388
main90159-50388
90159C0039
main90159-C0039
90178C0032
main90178-C0032
9018905074
main90189-05074
9018906006
main90189-06006
90189C0013
main90189-C0013
9033320001
main90333-20001
9033340001
main90333-40001
90333C0006
main90333-C0006
9046709206
main90467-09206
90467C0033
main90467-C0033
9095001911
main90950-01911
9095001A02
main90950-01A02
90950C1023
main90950-C1023
56 parts on this diagram · 2 diagrams in section
