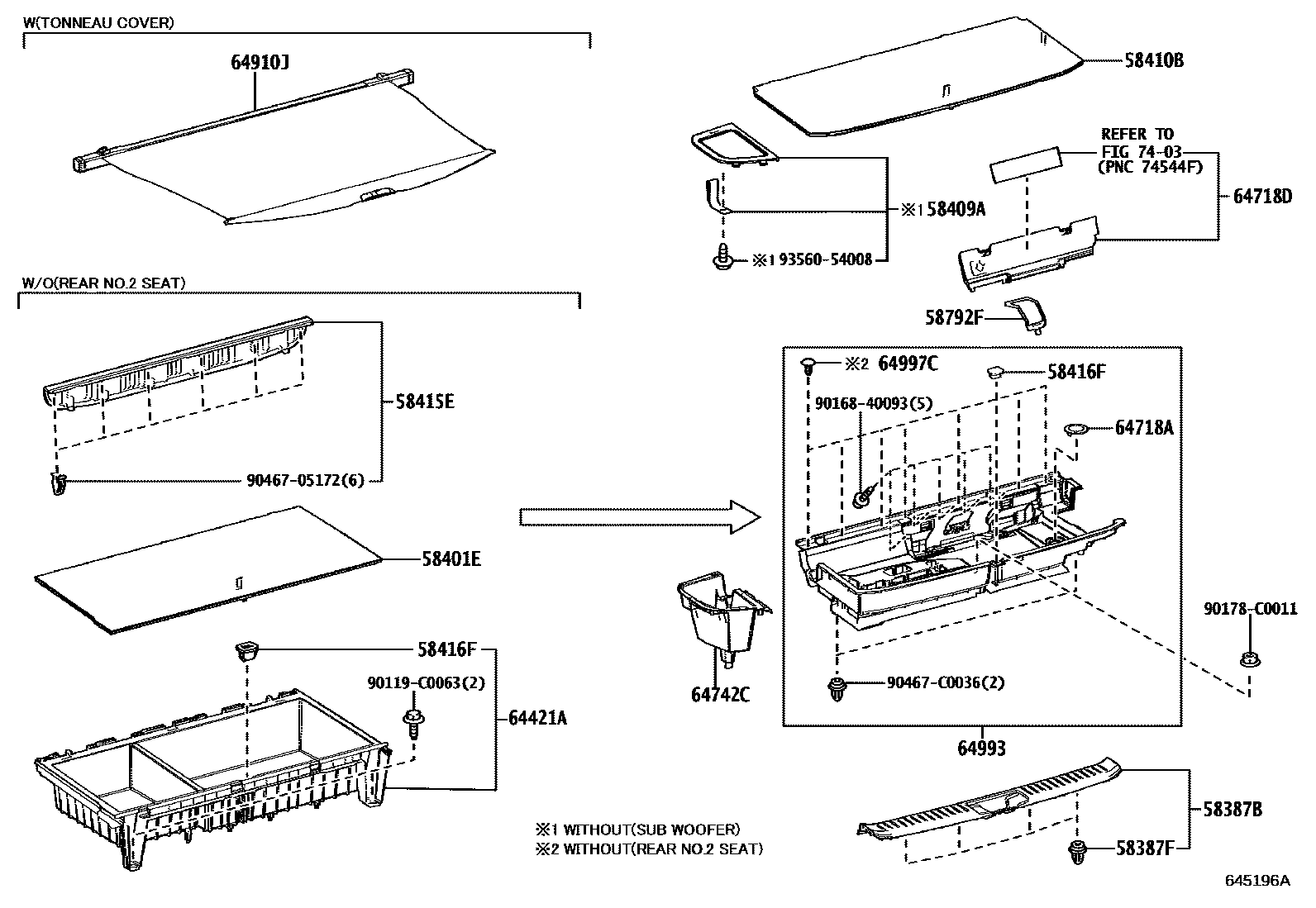

DECK BOARD & DECK TRIM COVER

0001 1DECK BOARD, DECK FLOOR BOX 0002 1DECK BOARD, DECK FLOOR BOX 0003 1DECK SIDE TRIM 0004 1DECK SIDE TRIM

58387BPLATE, REAR FLOOR FINISH

main58387-0E100-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main58387-0E100-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#,3#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-C0036iAXUH7#,SXUA75202108-202405

58401EBOARD SUB-ASSY, DECK

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-0E080-C0iSXUA75..N;AXUH7#..M,N202108-202405

BLACK,TRIM2#

58410BBOARD ASSY, DECK

main58410-0E100-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main58410-0E100-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

58415EBOARD, REAR FLOOR, NO.1

58416FBRACKET, DECK BOARD, NO.1

main58416-0E020iAXUH7#,SXUA75202108-202405

58792FSUPPORT, JACK CARRIER

main58792-0E060iAXUH7#,SXUA75202108-202405

64421ATRAY, LUGGAGE COMPARTMENT

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-0E080iAXUH7#,SXUA75202108-202405

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-0E070iAXUH7#,SXUA75202108-202405

64742CBOX, DECK SIDE TRIM, LH

main64742-0E090iSXUA75..N;AXUH7#..M,N202108-202405

64910JCOVER ASSY, TONNEAU

main64910-0E130-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

main64910-0E130-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

64993BOX, DECK FLOOR, REAR

main64993-0E190iAXUH7#,SXUA75202108-202405

64997CCLIP(FOR DECK FLOOR BOX)

7403

90119C0063

main90119-C0063

9016840093

main90168-40093

90178C0011

main90178-C0011

9046705172

main90467-05172

90467C0036

main90467-C0036

9356054008

main93560-54008

22 parts on this diagram · 4 diagrams in section
