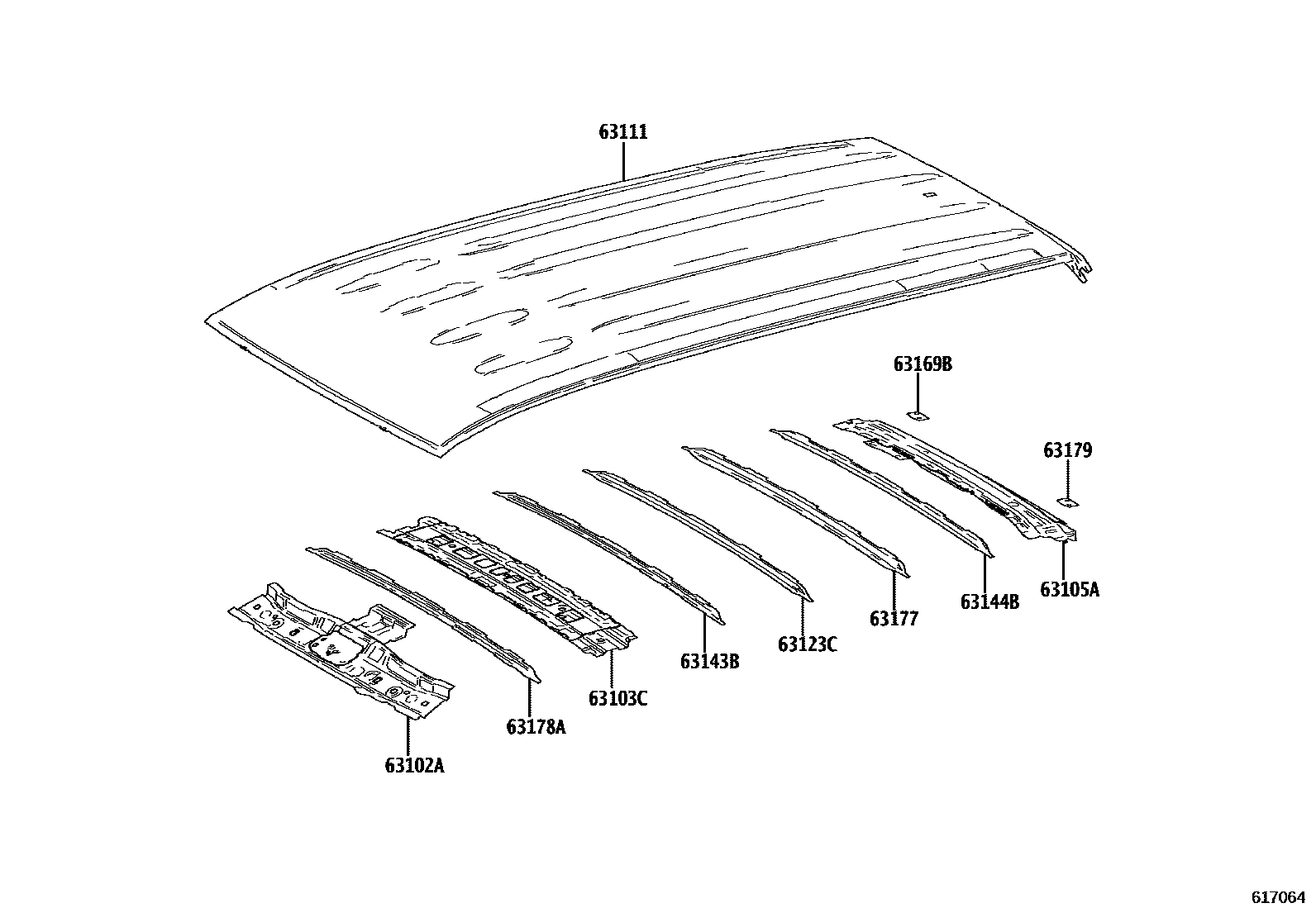

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL (PANORAMIC ROOF) 0004 1PANORAMIC ROOF 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E916iAXUH79..N202108-202405

BASE+

main63102-0E917iAXUH7#..N202108-202405

main63102-0E924iAXUH7#,SXUA75202405

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0E080iSXUA75;AXUH79..G,M202108-202405

BASE+

main63103-0E080iAXUH7#,SXUA75202405

main63103-0E110iAXUH7#..N202108-202405

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E090iAXUH7#,SXUA75202108-202405

63111PANEL, ROOF

main63111-0E410iSXUA75;AXUH79..G,M202108-202405

BASE+

main63111-0E410iAXUH7#,SXUA75202405

main63111-0E420iAXUH7#..N202108-202405

63123CREINFORCEMENT, ROOF PANEL

main63123-0E110iAXUH7#..N202108-202405

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E130iAXUH7#..N202108-202405

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E110iAXUH7#,SXUA75202108-202405

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E070iAXUH7#,SXUA75202108-202405

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-0E040iAXUH7#..N202108-202405

63178AREINFORCEMENT, ROOF PANEL, NO.10

main63178-0E030iAXUH7#..N202108-202405

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-0E070iAXUH7#,SXUA75202108-202405

11 parts on this diagram · 4 diagrams in section
