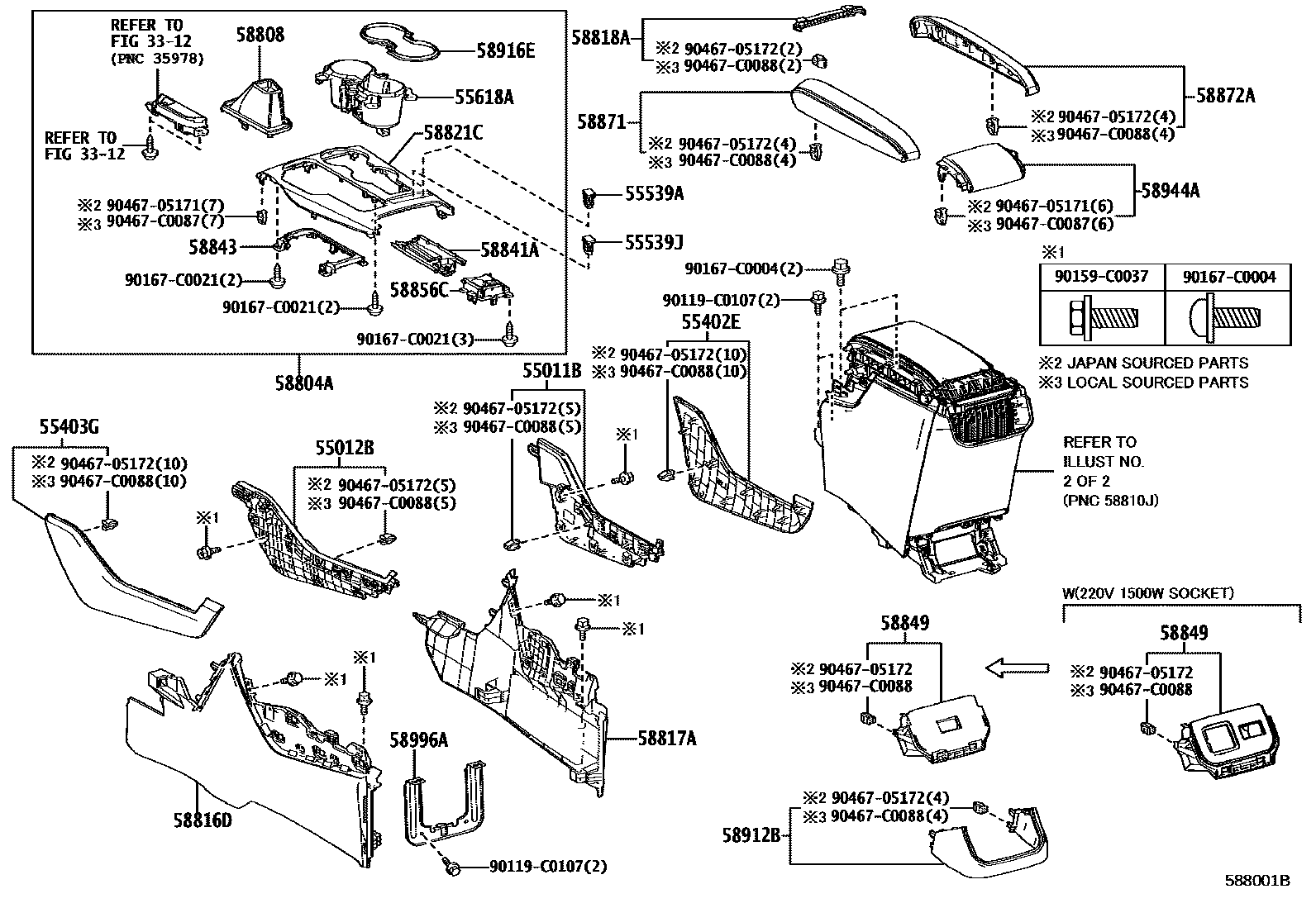

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

3312

55011BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

main55011-0E030iAXUH7#..N202108-202405

main55011-0E040iAXUH7#,SXUA75202405

main55011-0E040iSXUA75;AXUH79..G,M202108-202405

BASE+

55012BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2

main55012-0E030iAXUH7#..N202108-202304

sub55012-0E031

sub58816-0E102

main55012-0E031iAXUH7#..N202304-202405

main55012-0E040iSXUA75;AXUH79..G,M202108-202304

BASE+

sub55012-0E041

sub58816-0E102

main55012-0E041iSXUA75;AXUH79..G,M202304-202405

BASE+

main55012-0E041iAXUH7#,SXUA75202405

55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1

main55402-0E040-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

main55402-0E050-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM3#

main55402-0E050-C1iSXUA75;AXUH79..G,M202108-202405

BLACK,TRIM2#

55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2

main55403-0E100-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

main55403-0E110-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM3#

main55403-0E110-C1iSXUA75;AXUH79..G,M202108-202405

BLACK,TRIM2#

55539ACOVER, SPARE SWITCH HOLE

main55539-07020iAXUH7#202108-202405

55539JCOVER, SPARE SWITCH HOLE

main55539-07020iAXUH71202108-202405

55618AHOLDER, CONSOLE BOX CUP

main55618-0E250iAXUH7#,SXUA75202108-202405

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0E470-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

main58804-0E700-C0iAXUH79..G202108-202405

BLACK,TRIM2#,3#

main58804-YK020-C0iAXUH7#..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK;GRAY,TRIM2#,3#

main58804-YK030-C0iSXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK;GRAY,TRIM2#,3#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0E100-C0iAXUH79,SXUA75..G202108-202509

BLACK,TRIM2#

main58808-0E100-C0iAXUH79,SXUA75..G202108-202509

BLACK,TRIM2#,3#

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0E100-C0iAXUH7#..M,N202108-202202

BLACK,TRIM2#

main58816-0E101-C0iAXUH79,SXUA75..G202202-202304

BLACK,TRIM2#,3#

sub58816-0E102

sub55012-0E031

sub55012-0E041

main58816-0E102-C0iAXUH79,SXUA75..G202304-202405

BLACK,TRIM2#,3#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0E100-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

58818ACOVER, CONSOLE BOX, FR

main58818-0E080-C0iAXUH7#,SXUA75202108-202405

BLACK,TRIM2#

main58818-0E080-D1iAXUH79,SXUA75..G202108-202405

DK. ROSE,TRIM3#

58821CPANEL, CONSOLE, UPPER

main58821-0E220iAXUH7#..N202108-202405

main58821-0E230iSXUA75;AXUH79..G,M202108-202405

BASE+

main58821-YK040iAXUH7#,SXUA75202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS

58841ACOVER, SHIFTING HOLE

main58841-0E070iAXUH7#,SXUA75202108-202405

58843BEZEL, SHIFTING HOLE

main58843-0E100iAXUH7#,SXUA75202108-202405

58849COVER, CONSOLE BOX HOLE, NO.2

main58849-0E170iAXUH7#,SXUA75..M,N202108-202405

main58849-0E180iAXUH79,SXUA75..G202108-202509

58856CHOLDER, CONSOLE

main58856-0E030iAXUH7#,SXUA75202108-202405

58871CUSHION, CONSOLE BOX

main58871-0E020-C0iAXUH7#,SXUA75202108-202405

BLACK,TRIM2#

main58871-0E020-D1iAXUH79,SXUA75..G202108-202405

DK. ROSE,TRIM3#

58872ACUSHION, CONSOLE BOX, NO.2

main58872-0E020-C0iAXUH7#,SXUA75202108-202405

BLACK,TRIM2#

main58872-0E020-D1iAXUH79,SXUA75..G202108-202405

DK. ROSE,TRIM3#

58912BBOX, REAR CONSOLE, LOWER

main58912-0E120-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main58912-0E120-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

58916EMAT, BOX BOTTOM

main58916-0E080iAXUH7#,SXUA75202108-202405

58944ACOVER, CONSOLE, REAR

main58944-0E050-C0iAXUH7#,SXUA75202108-202405

BLACK,TRIM2#

main58944-0E050-D1iAXUH79,SXUA75..G202108-202405

DK. ROSE,TRIM3#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0E110iAXUH7#,SXUA75202108-202405

90119C0107

main90119-C0107

90159C0037

main90159-C0037

90167C0004

main90167-C0004

90167C0021

main90167-C0021

9046705171

main90467-05171

9046705172

main90467-05172

90467C0087

main90467-C0087

90467C0088

main90467-C0088

32 parts on this diagram · 3 diagrams in section
