FLOOR INSULATOR

0001 1 0002 1

58135BBRACKET, FLOOR INSULATOR SUPPORT

main58135-0E050iAXUH7#202108-202405

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0E100iAXUH7#202405

main58151-0E140iSXUA75202405

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0E090iAXUH7#202108-202405

58720BCOVER ASSY, ENGINE SERVICE

main58720-0E060iAXUH7#202108-202303

main58720-0E101iSXUA75202209-202405

main58720-0E160iAXUH7#202405

9018206012

main90182-06012

9026905049

main90269-05049

9046707215

main90467-07215

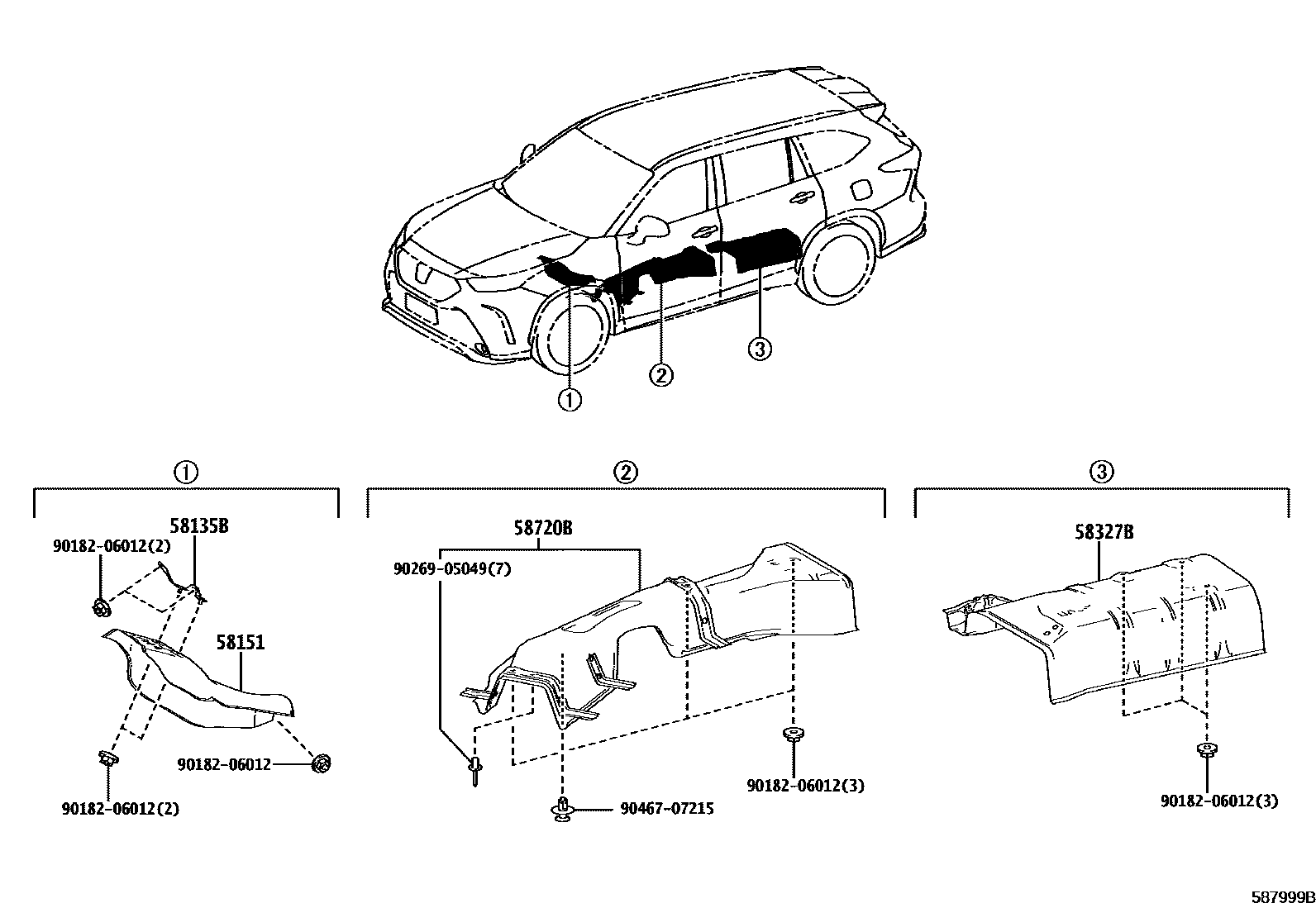

7 parts on this diagram · 2 diagrams in section
