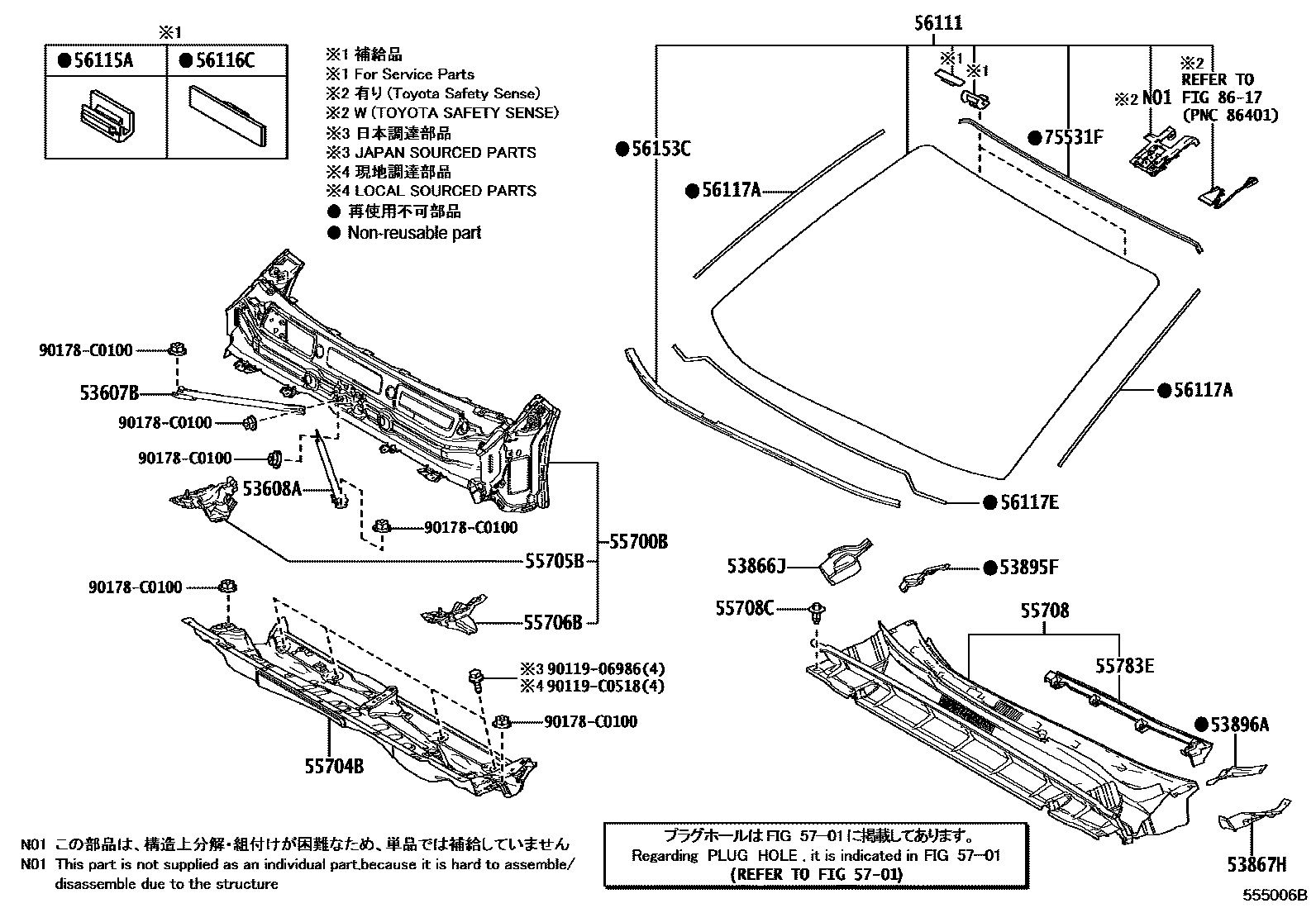

COWL PANEL & WINDSHIELD GLASS
53607BBRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
53608ABRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
53895FSHIELD, FRONT FENDER SPLASH, FRONT RH
53896ASHIELD, FRONT FENDER SPLASH, FRONT LH
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708CCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
(L)
(J)
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=718
56117EDAM, WINDOW GLASS ADHESIVE
L=1469
56153CMOULDING, FRONT WINDOW, INNER CENTER
5701
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
8617
9011906986
90119C0518
main90119-C0518
90178C0100
main90178-C0100
25 parts on this diagram · 1 diagram in section
