FLOOR SIDE MEMBER

51967EHOOK, TRANSPORT, REAR RH

main51967-0E100iAXUH7#,SXUA75202108-202405

51968DHOOK, TRANSPORT, REAR LH

main51968-0E080iAXUH7#,SXUA75202108-202405

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0E030iAXUH7#,SXUA75202108-202405

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0E030iAXUH7#,SXUA75202108-202405

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0E070iAXUH7#202108-202209

sub57016-0E071

sub90950-01758¥110

main57016-0E071iAXUH7#,SXUA75202209-202405

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0E070iAXUH7#,SXUA75202108-202405

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0E030iAXUH7#,SXUA75202108-202405

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0E030iAXUH7#,SXUA75202108-202405

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0E909iAXUH7#,SXUA75202108-202405

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-0E910iAXUH7#,SXUA75202108-202405

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-0E100iAXUH7#202108-202405

main57041-0E150iSXUA75202209-202405

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-0E100iAXUH7#202108-202405

main57042-0E150iSXUA75202209-202405

57089REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.6

main57089-0E050iAXUH7#,SXUA75202108-202405

57110MEMBER ASSY, FRONT SIDE, RH

main57110-0E030iAXUH7#,SXUA75202108-202405

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-0R020iAXUH7#,SXUA75202108-202405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-0R020iAXUH7#,SXUA75202108-202405

57120MEMBER ASSY, FRONT SIDE, LH

main57120-0E030iAXUH7#,SXUA75202108-202405

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0E100iAXUH7#,SXUA75202108-202405

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0E100iAXUH7#,SXUA75202108-202405

57603FGUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER

main57603-0E120iSXUA75202209-202405

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0E140iAXUH7#202108-202405

main57605-0E190iSXUA75202209-202405

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0E090iAXUH7#,SXUA75202108-202405

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0E100iAXUH7#,SXUA75202108-202405

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-0E030iAXUH7#202108-202405

58727EPLATE, ENGINE SERVICE COVER, NO.1

main58727-0E030iAXUH7#,SXUA75202108-202405

90105C0262

main90105-C0262

90115C0014

main90115-C0014

9011906A06

main90119-06A06¥60

90119C0147

main90119-C0147

90119C0307

main90119-C0307

90119C0561

main90119-C0561

91672L1022

main91672-L1022¥100

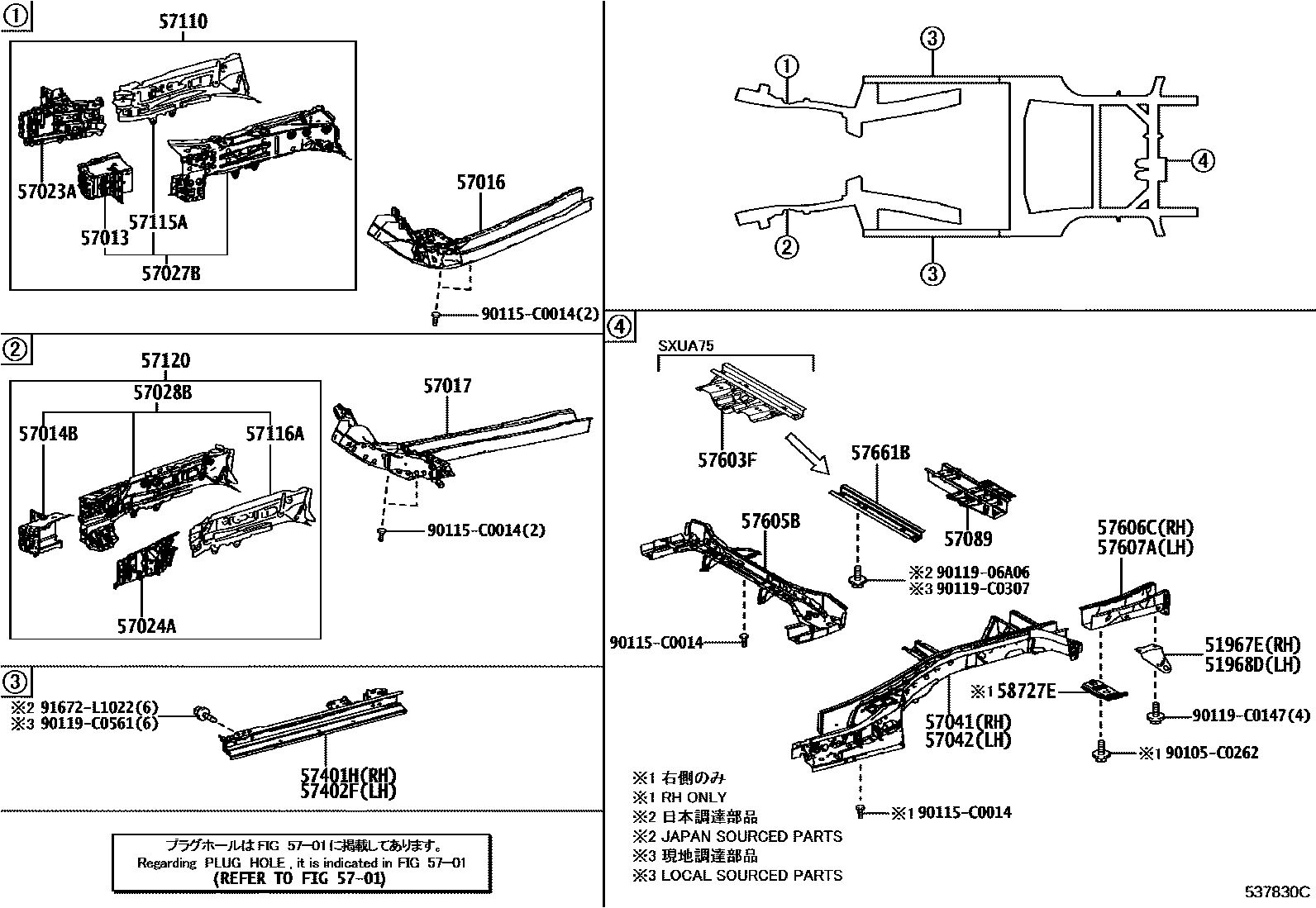

33 parts on this diagram · 1 diagram in section
