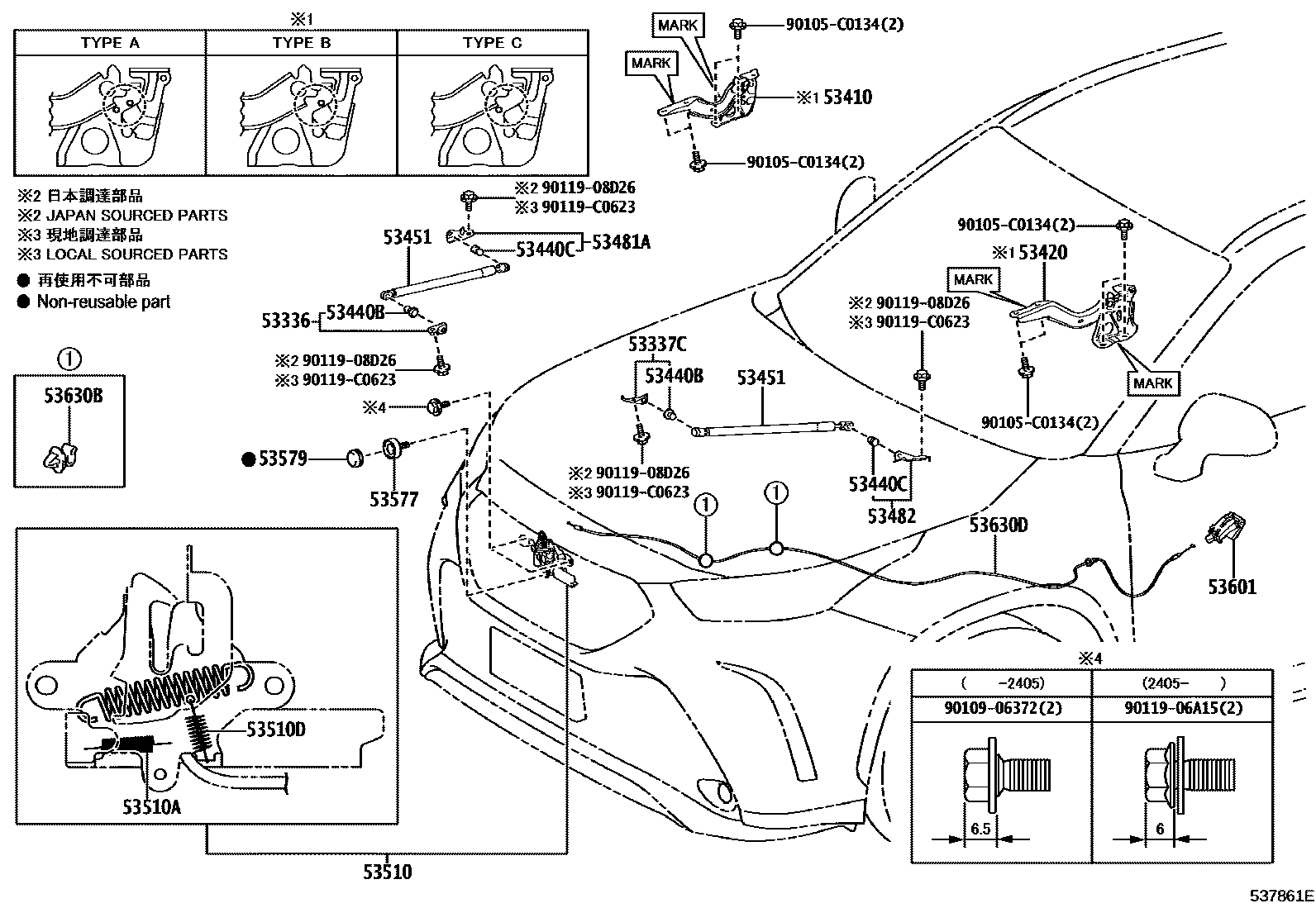

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
MARK 77R,TYPE A
MARK 77R,TYPE B
MARK 77R,TYPE C
MARK 76R,TYPE A
MARK 76R,TYPE B
MARK 76R,TYPE C
53420HINGE ASSY, HOOD, LH
MARK 77L,TYPE A
MARK 77L,TYPE B
MARK 77L,TYPE C
MARK 76L,TYPE A
MARK 76L,TYPE B
MARK 76L,TYPE C
53440BBOLT, HOOD SUPPORT, NO.1
53440CBOLT, HOOD SUPPORT, NO.2
53451ROD, HOOD SUPPORT
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#,3#
BLACK,TRIM2#
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53630DSET, CABLE & LEVER, HOODLOCK CONTROL
90105C0134
main90105-C0134
9010906372
main90109-06372
9011906A15
main90119-06A15
9011908D26
main90119-08D26
90119C0623
main90119-C0623
22 parts on this diagram · 1 diagram in section
