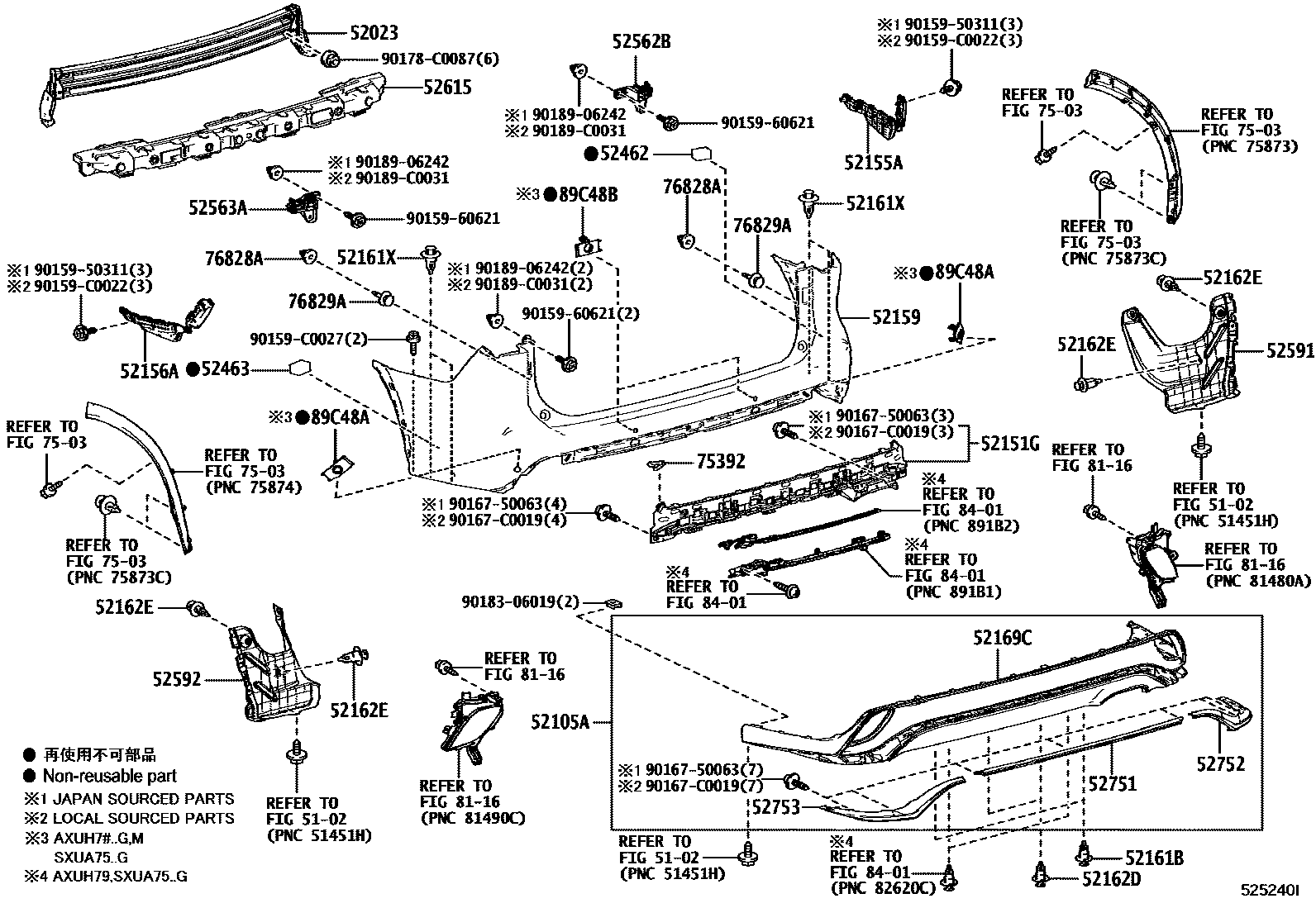

REAR BUMPER & BUMPER STAY
5102
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52105ABUMPER SUB-ASSY, REAR CENTER
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
(L)
52161XPIECE, REAR BUMPER
(L)
52162DPIECE, REAR BUMPER
(L)
(L)
52162EPIECE, REAR BUMPER
(L)
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52463PAD, REAR BUMPER, LH
NO PAINT REQ.
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
NO PAINT REQ.
52752MOULDING, REAR BUMPER SIDE, RH
NO PAINT REQ.
52753MOULDING, REAR BUMPER SIDE, LH
NO PAINT REQ.
7503
75392RETAINER, OUTSIDE MOULDING
(L)
(J)
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8116
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PLATINUM WHITE PEARL MC.,089,RH
METAL STREAM ME,1K0,RH
BLACK MC.,209,RH
BLACKISH BROWN MC.,4X9,RH
DK. BLUE MC.,8X8,RH
PLATINUM WHITE PEARL MC.,089,LH
METAL STREAM ME,1K0,LH
BLACK MC.,209,LH
BLACKISH BROWN MC.,4X9,LH
DK. BLUE MC.,8X8,LH
PLATINUM WHITE PEARL MC.,089,RH
METAL STREAM ME,1K0,RH
BLACK MC.,209,RH
RED MC.,3T3,RH
BLACKISH BROWN MC.,4X9,RH
PLATINUM WHITE PEARL MC.,089,LH
METAL STREAM ME,1K0,LH
BLACK MC.,209,LH
RED MC.,3T3,LH
BLACKISH BROWN MC.,4X9,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
BLACK MC.,209
BLACKISH BROWN MC.,4X9
DK. BLUE MC.,8X8
9015950311
main90159-50311
9015960621
main90159-60621
90159C0022
main90159-C0022
90159C0027
main90159-C0027
9016750063
main90167-50063
90167C0019
main90167-C0019
90178C0087
main90178-C0087
9018306019
main90183-06019
9018906242
main90189-06242
90189C0031
main90189-C0031
40 parts on this diagram · 1 diagram in section
