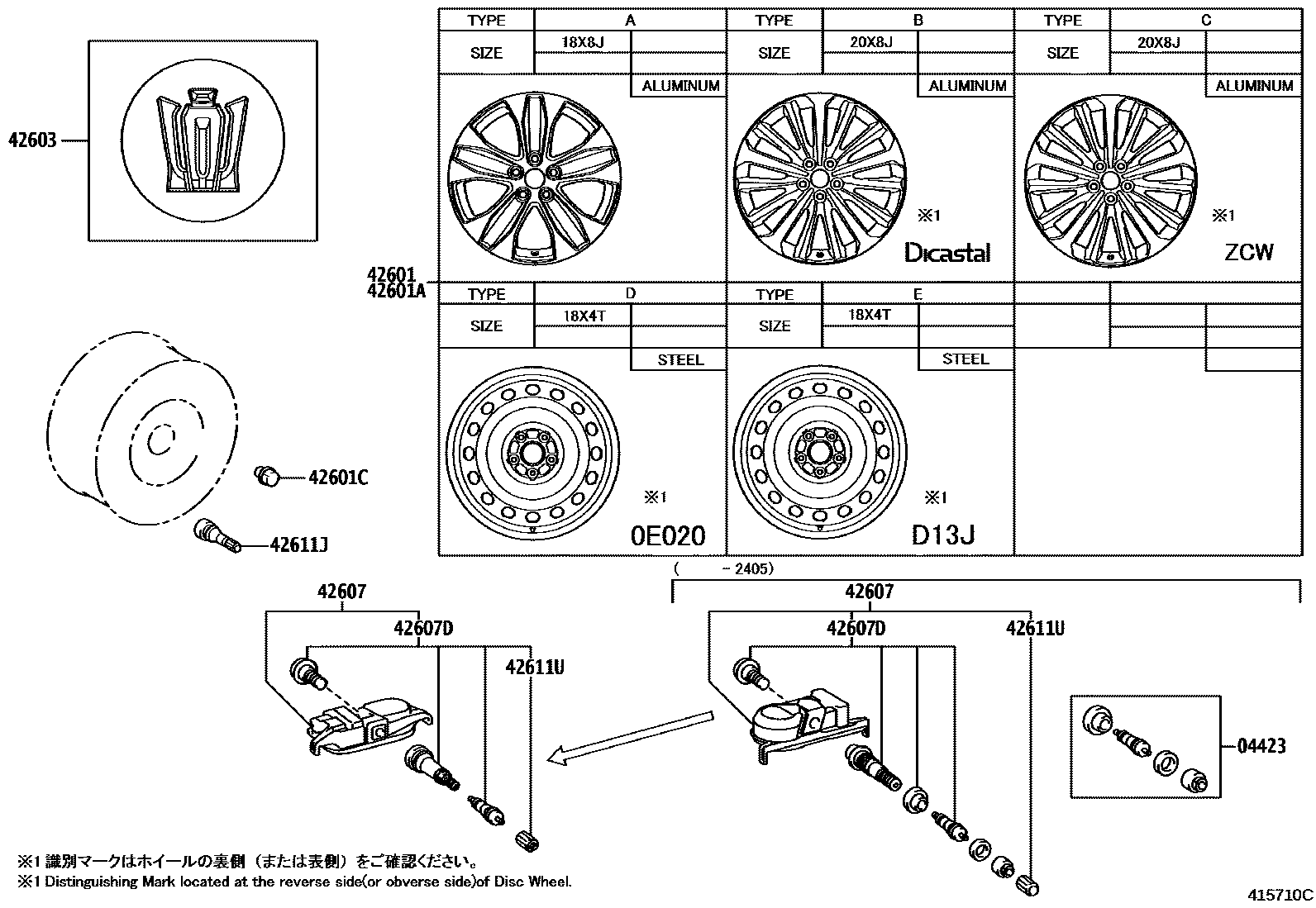

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X8J,#,TYPE A:REFER ILLUST.
20X8J,#,TYPE B:REFER ILLUST.
20X8J,#,BASE+,TYPE B:REFER ILLUST.
20X8J,#,TYPE C:REFER ILLUST.
20X8J,#,BASE+,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X4T,TYPE E:REFER ILLUST.
18X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
(J)
(L)
42611UCAP, TIRE VALVE
9 parts on this diagram · 2 diagrams in section
