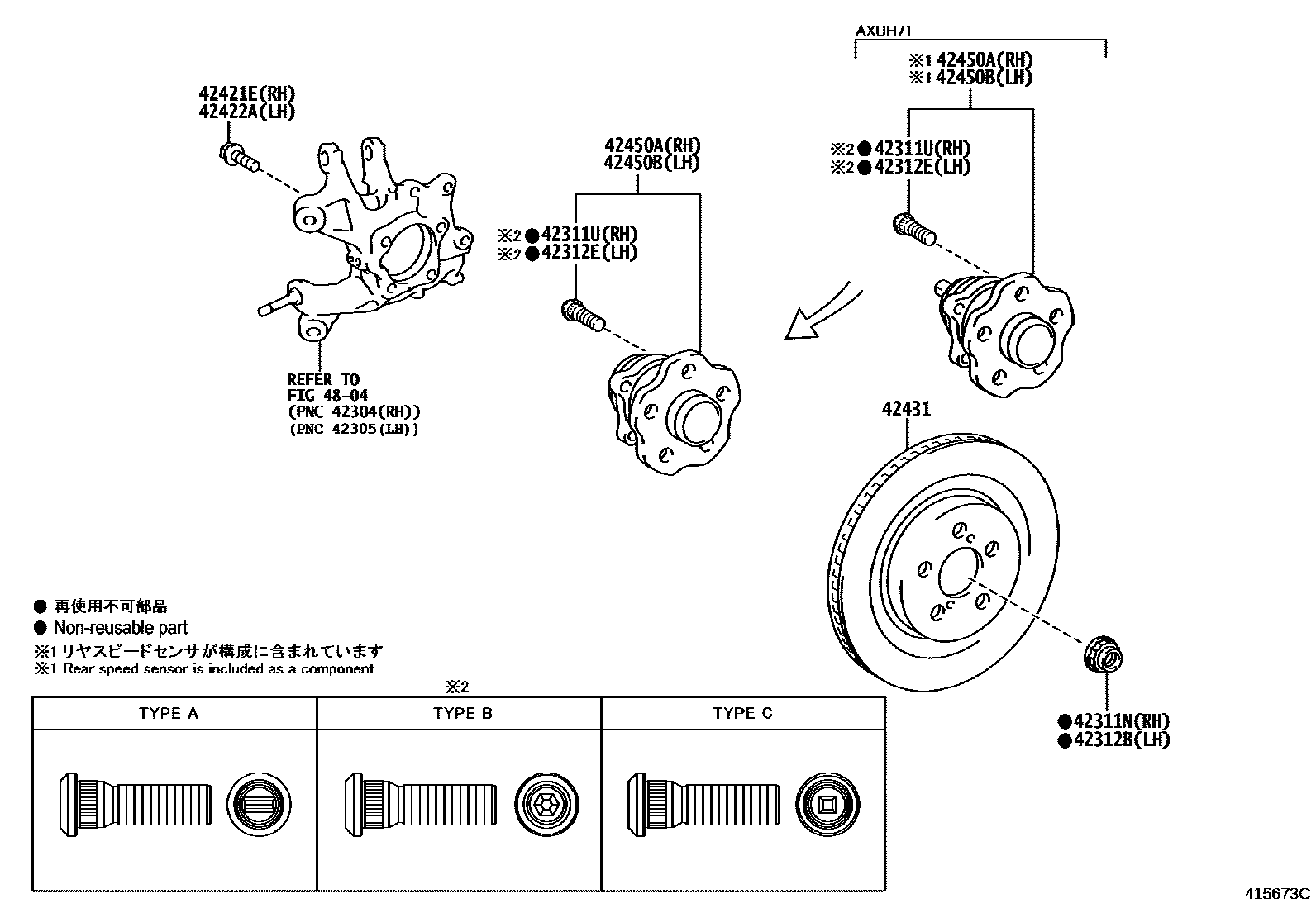

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1TYPE A 0004 1TYPE B

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-C0004iAXUH79,SXUA75202108-202405

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAXUH7#,SXUA75202108-202405

TYPE A:REFER ILLUST.

main90942-02081×5iAXUH7#,SXUA75202405

TYPE B:REFER ILLUST.

main90942-02082×5iAXUH7#,SXUA75202108-202405

TYPE C:REFER ILLUST.

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-C0004iAXUH79,SXUA75202405

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAXUH7#,SXUA75202108-202405

TYPE A:REFER ILLUST.

main90942-02081×5iAXUH7#,SXUA75202405

TYPE B:REFER ILLUST.

main90942-02082×5iAXUH7#,SXUA75202405

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-C0402×4iAXUH7#,SXUA75202405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-C0402×4iAXUH7#,SXUA75202405

42431DISC, REAR

main42431-0E080×2iAXUH7#,SXUA75202108-202405

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E060iAXUH79,SXUA75202405

main42450-0E060iAXUH71202108-202405

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E060iAXUH79,SXUA75202108-202405

main42450-0E060iAXUH71202108-202405

4804

10 parts on this diagram · 4 diagrams in section
