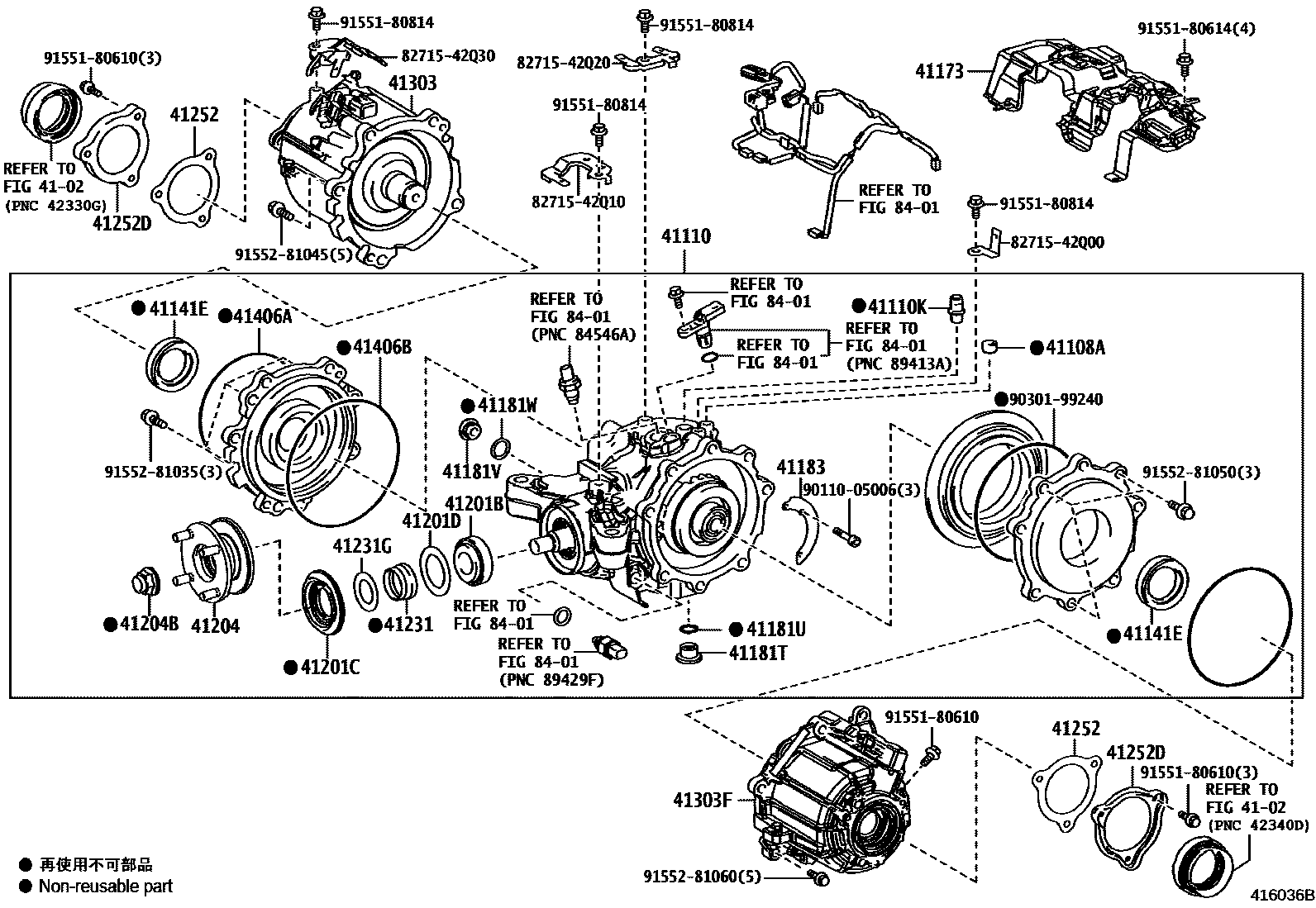

REAR AXLE HOUSING & DIFFERENTIAL
4102
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=38:17=2.235
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41141ESEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
41173COVER, DIFFERENTIAL DISCONNECT
41181TPLUG (FOR REAR DIFFERENTIAL DRAIN)
41181UGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41181VPLUG (FOR REAR DIFFERENTIAL FILLER)
41181WGASKET(FOR DIFFERENTIAL FILLER PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.70,MARK 41
T=1.72,MARK 43
T=1.74,MARK 45
T=1.76,MARK 47
T=1.78,MARK 49
T=1.80,MARK 51
T=1.82,MARK 53
T=1.84,MARK 55
T=1.86,MARK 57
T=1.88,MARK 59
T=1.90,MARK 61
T=1.92,MARK 63
T=1.94,MARK 65
T=1.96,MARK 71
T=1.98,MARK 73
T=2.00,MARK 75
T=2.02,MARK 77
T=2.04,MARK 79
T=2.06,MARK 81
T=2.08,MARK 83
T=2.10,MARK 85
T=2.12,MARK 87
T=2.14,MARK 89
T=2.16,MARK 91
T=2.18,MARK 93
T=2.20,MARK 95
T=2.22,MARK 97
T=2.24,MARK 99
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=33.5
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231GSPACER, DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252DDEFLECTOR, DUST, NO.2 (FOR REAR DIFFERENTIAL)
41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL
41303FCOUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL, LH
41406ARING, O(FOR ELECTRO MAGNETIC CONTROL CLUTCH SUB-ASSY)
41406BRING, O, NO.2(FOR ELECTRO MAGNETIC CONTROL CLUTCH SUB-ASSY)
8401
8271542Q00BRACKET,WIRING HARNESS CLAMP
main82715-42Q00
8271542Q10BRACKET,WIRING HARNESS CLAMP
main82715-42Q10
8271542Q20BRACKET,WIRING HARNESS CLAMP
main82715-42Q20
8271542Q30BRACKET,WIRING HARNESS CLAMP
main82715-42Q30
9011005006
main90110-05006
9030199240
main90301-99240
9155180610
main91551-80610
9155180614
main91551-80614
9155180814
main91551-80814
9155281035
main91552-81035
9155281045
main91552-81045
9155281050
main91552-81050
9155281060
main91552-81060
38 parts on this diagram · 2 diagrams in section
