OIL COOLER & TUBE (HEV OR BEV OR FCEV)

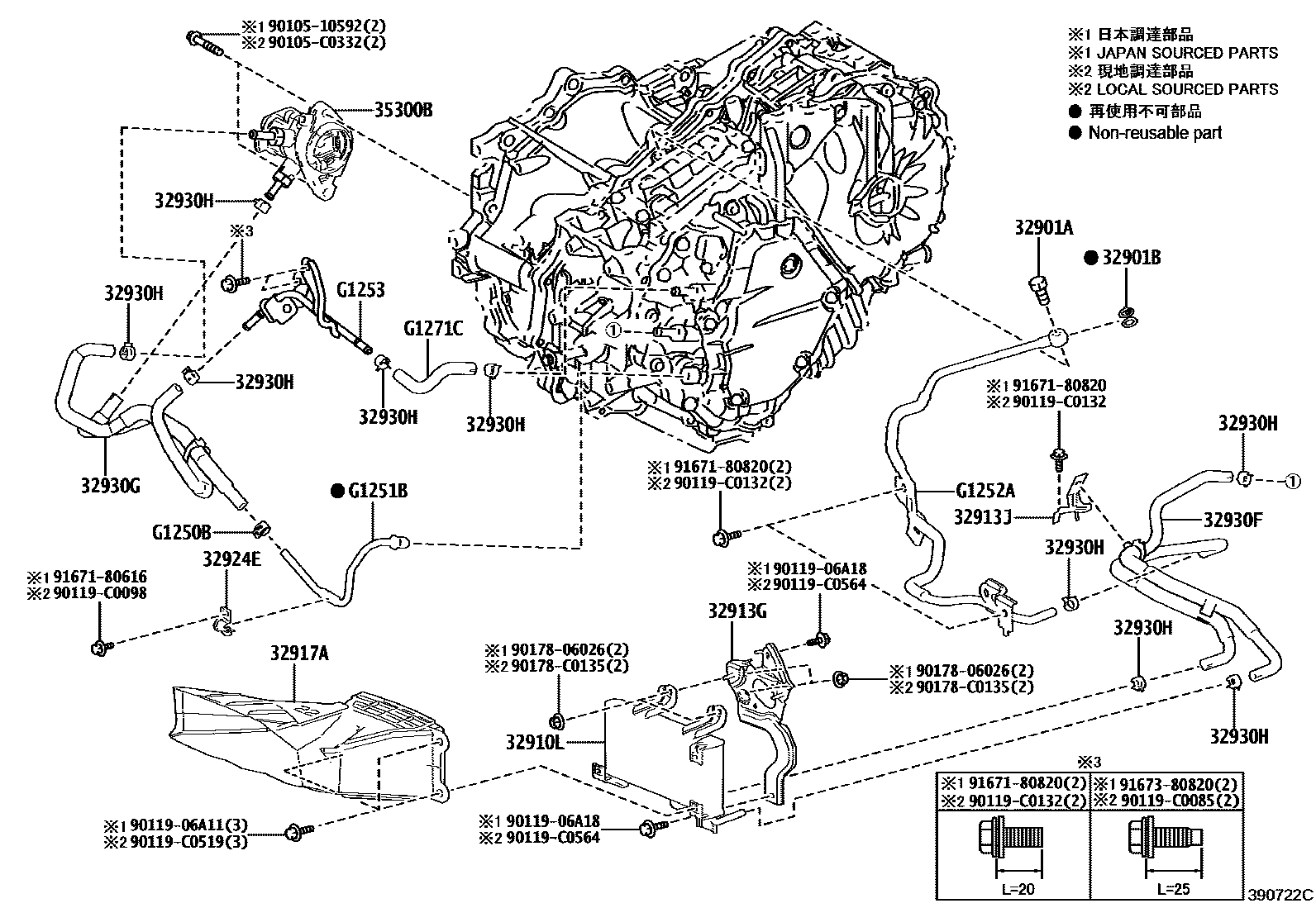

Parts diagram
32901ABOLT, UNION(FOR OIL COOLER)
main90401-12039i¥390202108-202405
32901BGASKET(FOR OIL COOLER UNION)
main90430-12037i¥80202108-202405
32910LCOOLER ASSY, OIL
main32910-0E060i202108-202405
32913GBRACKET, TRANSMISSION OIL COOLER
main32913-0E080i202108-202405
32913JBRACKET, TRANSMISSION OIL COOLER, NO.2
main32913-0R020i202108-202405
32917ADUCT, TRANSMISSION OIL COOLER AIR
main32917-0E110i202108-202405
32924ECLAMP, OIL COOLER TUBE, NO.2
main32924-48010i¥200202108-202405
32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1
main32930-0E200i202108-202405
32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2
main32930-0R050i202108-202405
32930HCLIP, NO.1(FOR OIL COOLER HOSE)
main90466-16004i¥180202108-202405
(J)
main90466-C0024i202108-202405
(L)
main90466-C0024i202405
35300BPUMP ASSY, OIL W/MOTOR
main35300-48070i¥41,100202108-202405
G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)
main90466-16004i¥180202108-202405
(J)
main90466-C0024i202108-202405
(L)
main90466-C0024i202405
G1251BPIPE, MOTOR COOLING, NO.1
mainG12510R010i202108-202405
G1252APIPE, MOTOR COOLING, NO.2
mainG12520R030i202108-202405
G1253PIPE, MOTOR COOLING, NO.3
mainG12540E020i202108-202405
G1271CHOSE, MOTOR COOLING, NO.1
mainG12710R020i202108-202405
9010510592
main90105-10592¥160
90105C0332
main90105-C0332
9011906A11
main90119-06A11¥60
9011906A18
main90119-06A18¥80
90119C0085
main90119-C0085
90119C0098
main90119-C0098
90119C0132
main90119-C0132
90119C0519
main90119-C0519
90119C0564
main90119-C0564
9017806026
main90178-06026¥80
90178C0135
main90178-C0135
9167180616
main91671-80616¥60
9167180820
main91671-80820¥80
9167380820
main91673-80820¥80

30 parts on this diagram · 1 diagram in section
