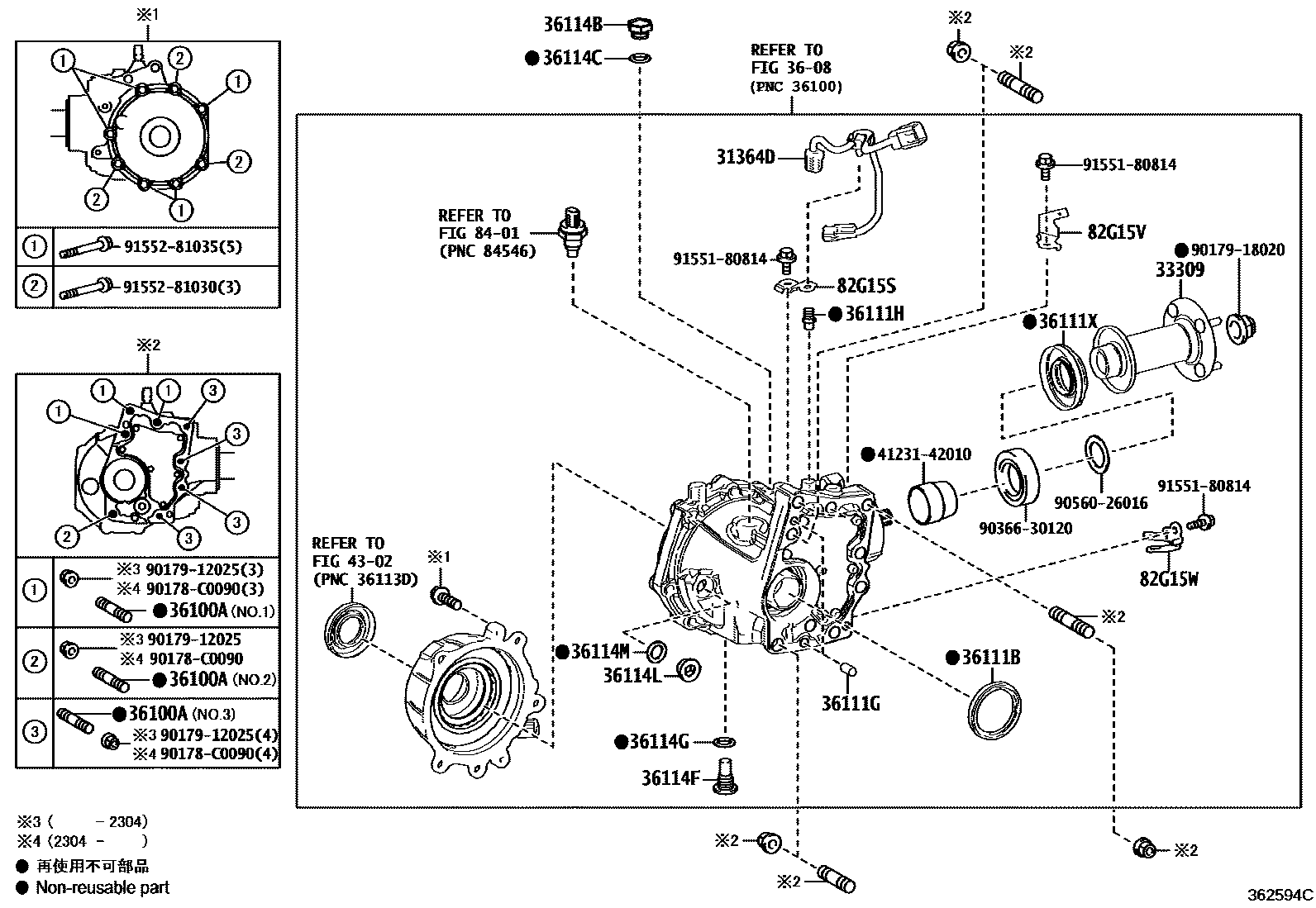

TRANSFER CASE & EXTENSION HOUSING
31364DWIRE, CLUTCH CONTROL SOLENOID
33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION
3608
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=30 & 22,L=64,NO.3:REFER ILLUST.
S=22 & 22,L=73,(J),NO.1:REFER ILL.
S=22 & 22,L=73,NO.1:REFER ILLUST.
S=22 & 22,L=53,NO.2:REFER ILLUST.
S=22 & 22,L=53,(J),NO.2:REFER ILL.
S=22 & 22,L=73,NO.1:REFER ILLUST.
S=22 & 22,L=73,(L),NO.1:REFER ILL.
S=22 & 22,L=53,NO.2:REFER ILLUST.
S=22 & 22,L=53,(L),NO.2:REFER ILL.
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111XSEAL, OIL (FOR TRANSFER CASE), NO.2
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
4302
82G15SBRACKET, WIRING HARNESS CLAMP
82G15VBRACKET, WIRING HARNESS CLAMP, NO.2
82G15WBRACKET, WIRING HARNESS CLAMP, NO.3
8401
4123142010SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-42010
90178C0090
main90178-C0090
9017912025
main90179-12025
9017918020
main90179-18020
9036630120
main90366-30120
9056026016
main90560-26016
9155180814
main91551-80814
9155281030
main91552-81030
9155281035
main91552-81035
28 parts on this diagram · 2 diagrams in section
