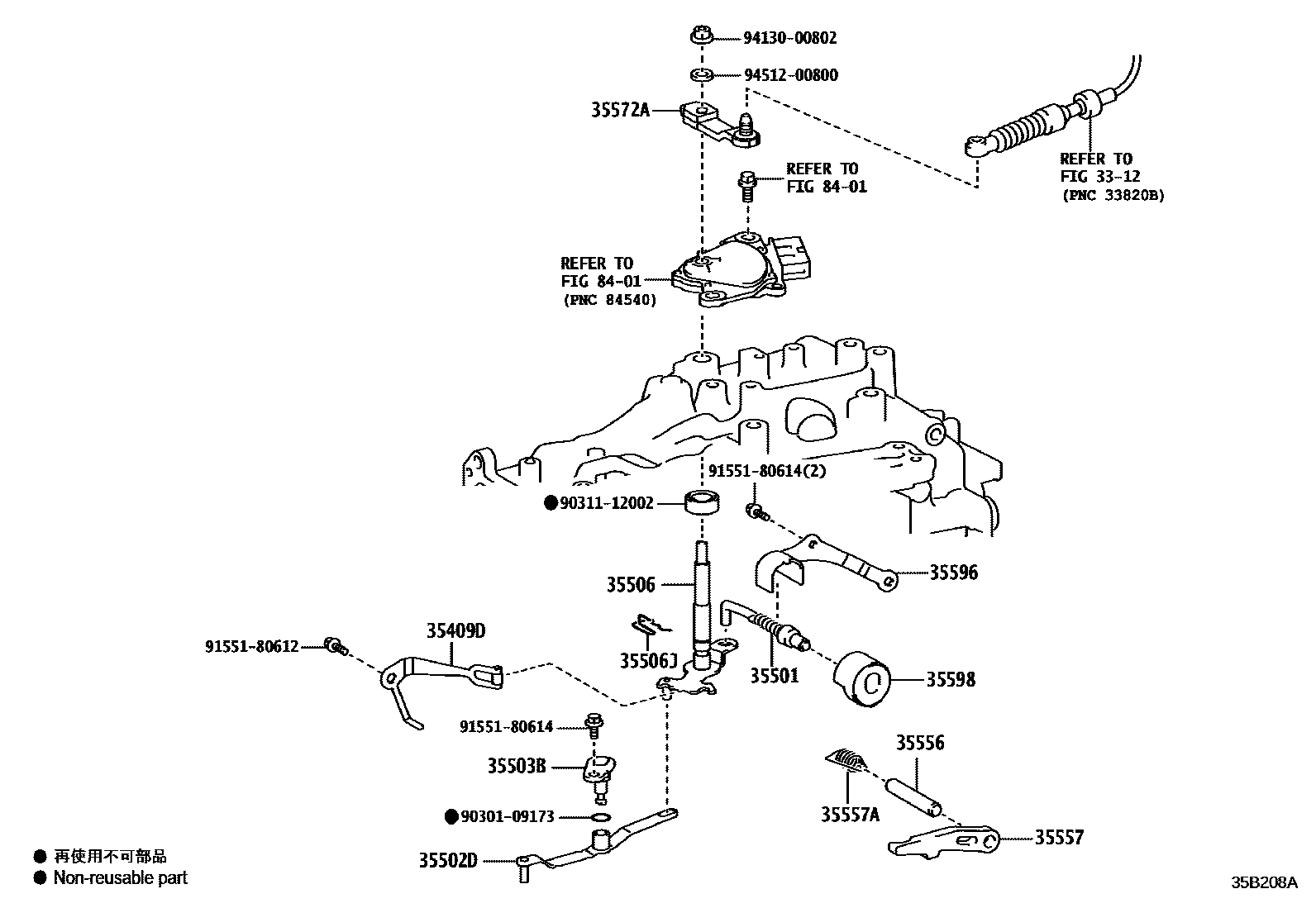

THROTTLE LINK & VALVE LEVER (ATM)
3312
35409DSPRING SUB-ASSY, MANUAL DETENT
35501ROD SUB-ASSY, PARKING LOCK
35502DLEVER SUB-ASSY, MANUAL VALVE LINK
35503BSHAFT SUB-ASSY, MANUAL VALVE LINK
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35572ALEVER, TRANSMISSION CONTROL SHAFT
35596PLATE, PAWL STOPPER
35598SLEEVE, PARKING LOCK
8401
9030109173
main90301-09173
9031112002
main90311-12002
9155180612
main91551-80612
9155180614
main91551-80614
9413000802
main94130-00802
9451200800
main94512-00800
20 parts on this diagram · 1 diagram in section
