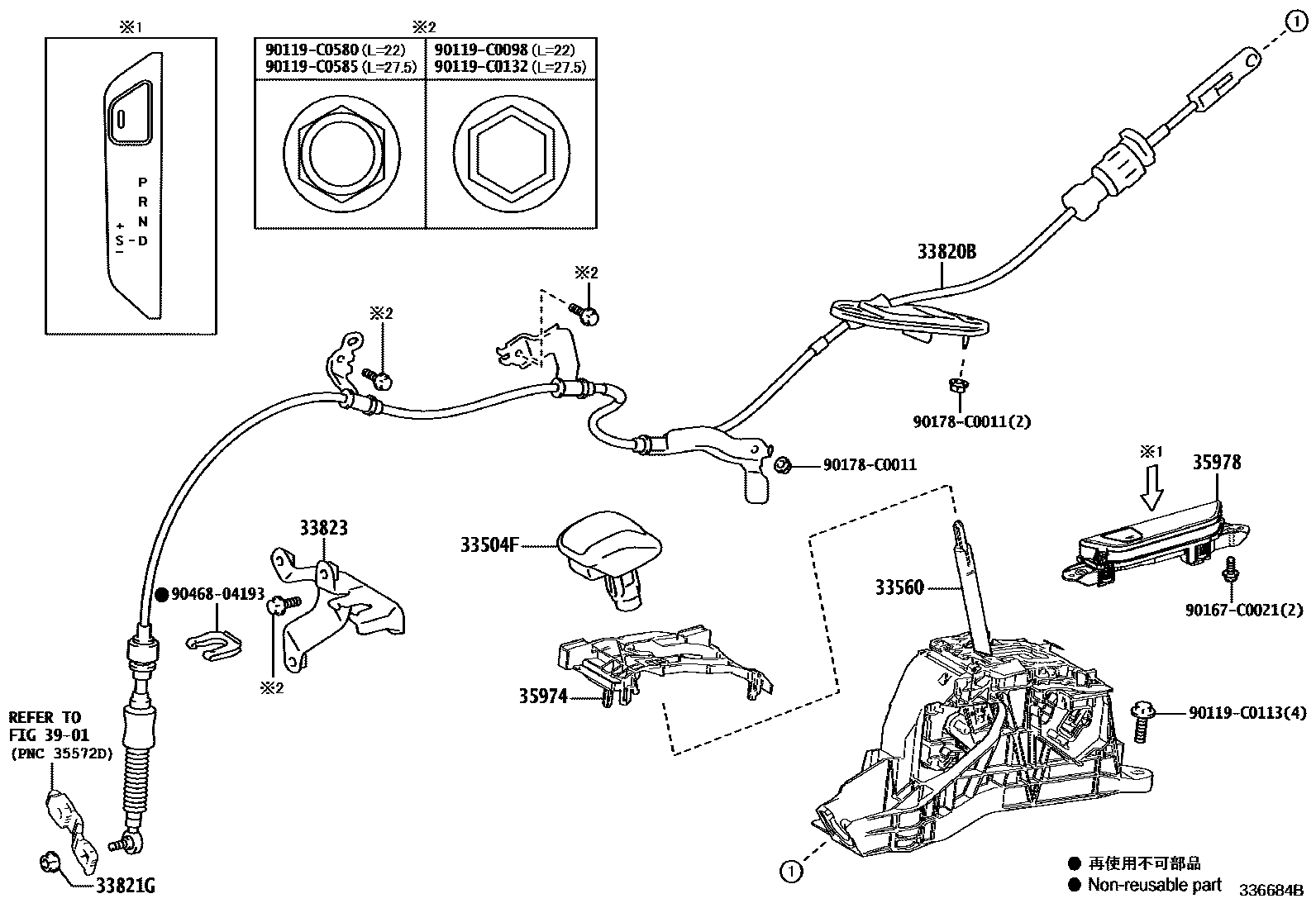

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0E190-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

main33504-0E190-C0iAXUH79,SXUA75..G202108-202405

BASE+,BLACK,TRIM2#

main33504-0E190-C0iAXUH79..M;SXUA75..M,N202108-202405

BLACK,TRIM2#,3#

main33504-0R130-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-07030iSXUA75202209-202405

main33560-07040iSXUA75202405

main33560-07050iAXUH7#202405

main33560-0E150iAXUH7#202108-202405

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0E200iAXUH7#202108-202405

main33820-0E280iSXUA75202209-202405

main33820-0E340iAXUH7#202405

main33820-0E350iSXUA75202405

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0034iAXUH7#202108-202405

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06100iSXUA75202209-202405

main33823-0R120iAXUH7#202108-202405

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0E090iAXUH7#,SXUA75202108-202405

main35974-0E170iAXUH7#202405

main35974-0E180iSXUA75202405

35978INDICATOR, SHIFT POSITION

main35978-0E150iAXUH7#202108-202405

main35978-0E210iSXUA75202209-202405

3901

90119C0098

main90119-C0098

90119C0113

main90119-C0113

90119C0132

main90119-C0132

90119C0580

main90119-C0580

90119C0585

main90119-C0585

90167C0021

main90167-C0021

90178C0011

main90178-C0011

9046804193

main90468-04193

16 parts on this diagram · 2 diagrams in section
