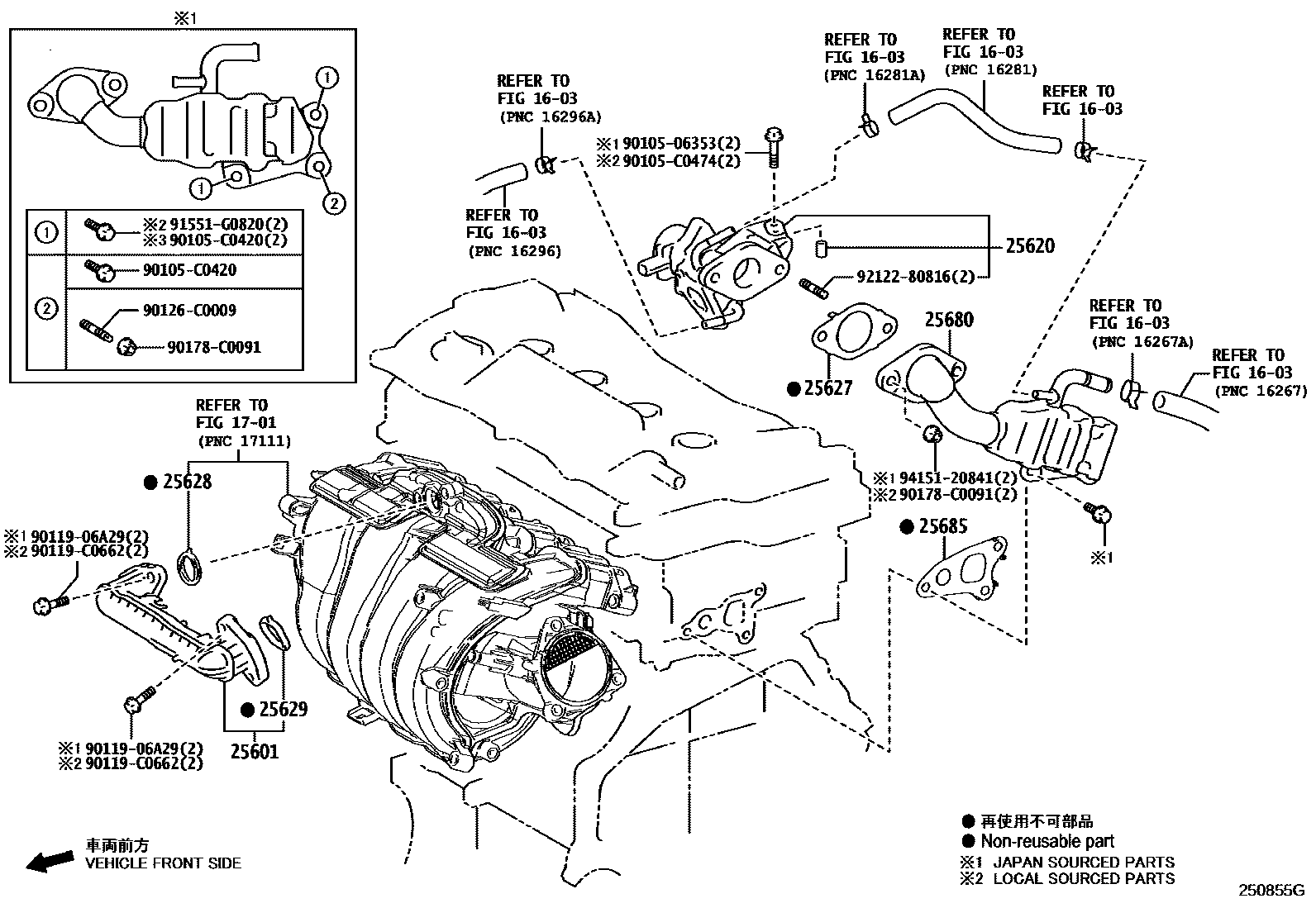

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-F0030iA25..AXUH7#202108-202405

*625,*667

25620VALVE ASSY, EGR

main25620-F2030iA25..AXUH7#202108-202405

*625,*667

25627GASKET, EGR VALVE

main25627-24010iA25..AXUH7#202108-202405

(J),*667

main25627-F2020iA25..AXUH7#202108-202405

*625,(L),*667

25628GASKET, EGR INLET

main25628-25010iA25..AXUH7#202108-202405

*625,*667

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25..AXUH7#202108-202405

*625,*667

25680COOLER ASSY, EGR

main25680-F0070iA25..AXUH7#202108-202405

*625,*667

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25..AXUH7#202108-202405

*667

main25685-F2010iA25..AXUH7#202108-202405

*625

9010506353

main90105-06353

90105C0420

main90105-C0420

90105C0474

main90105-C0474

9011906A29

main90119-06A29

90119C0662

main90119-C0662

90126C0009

main90126-C0009

90178C0091

main90178-C0091

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

19 parts on this diagram · 1 diagram in section
