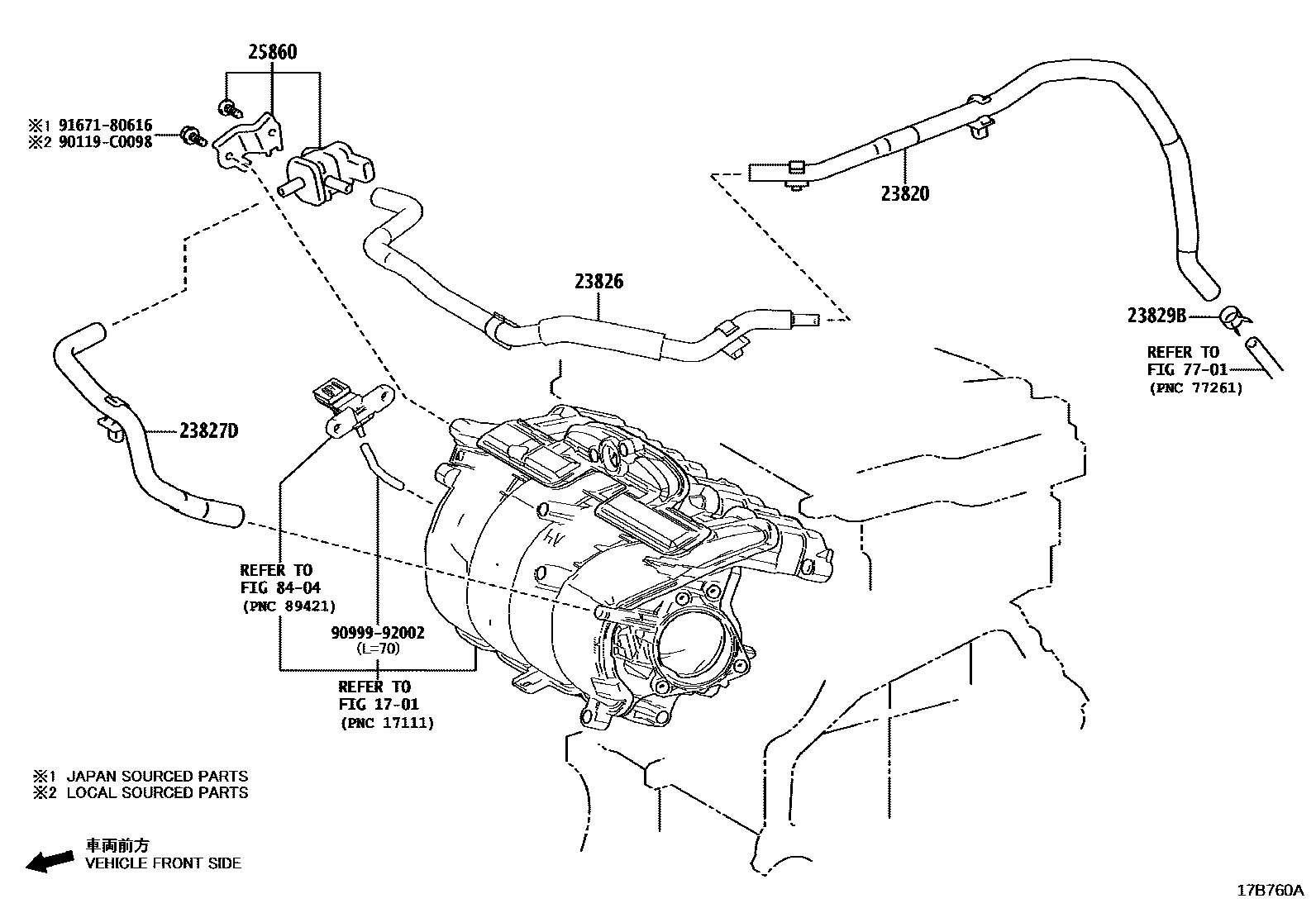

VACUUM PIPING

0001 1 0002 1 0003 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0400iA25..AXUH7#202108-202405

main23820-F6020iS20..SXUA75202209-202405

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AXUH7#202108-202405

(J)

main23820-F0410iA25..AXUH7#202108-202405

(L)

main23826-25280iS20..SXUA75202209-202405

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AXUH7#202108-202405

(J)

main23820-F0420iA25..AXUH7#202108-202405

(L)

main23827-25150iS20..SXUA75202209-202405

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0021iS20..SXUA75202209-202405

main96133-41501iA25..AXUH7#202108-202405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AXUH7#202108-202405

(J)

main25860-25080iS20..SXUA75202209-202405

main25860-F0070iA25..AXUH7#202108-202405

(L)

7701

8404

90119C0098

main90119-C0098

9099992002

main90999-92002

9167180616

main91671-80616

11 parts on this diagram · 3 diagrams in section
