RADIATOR & WATER OUTLET

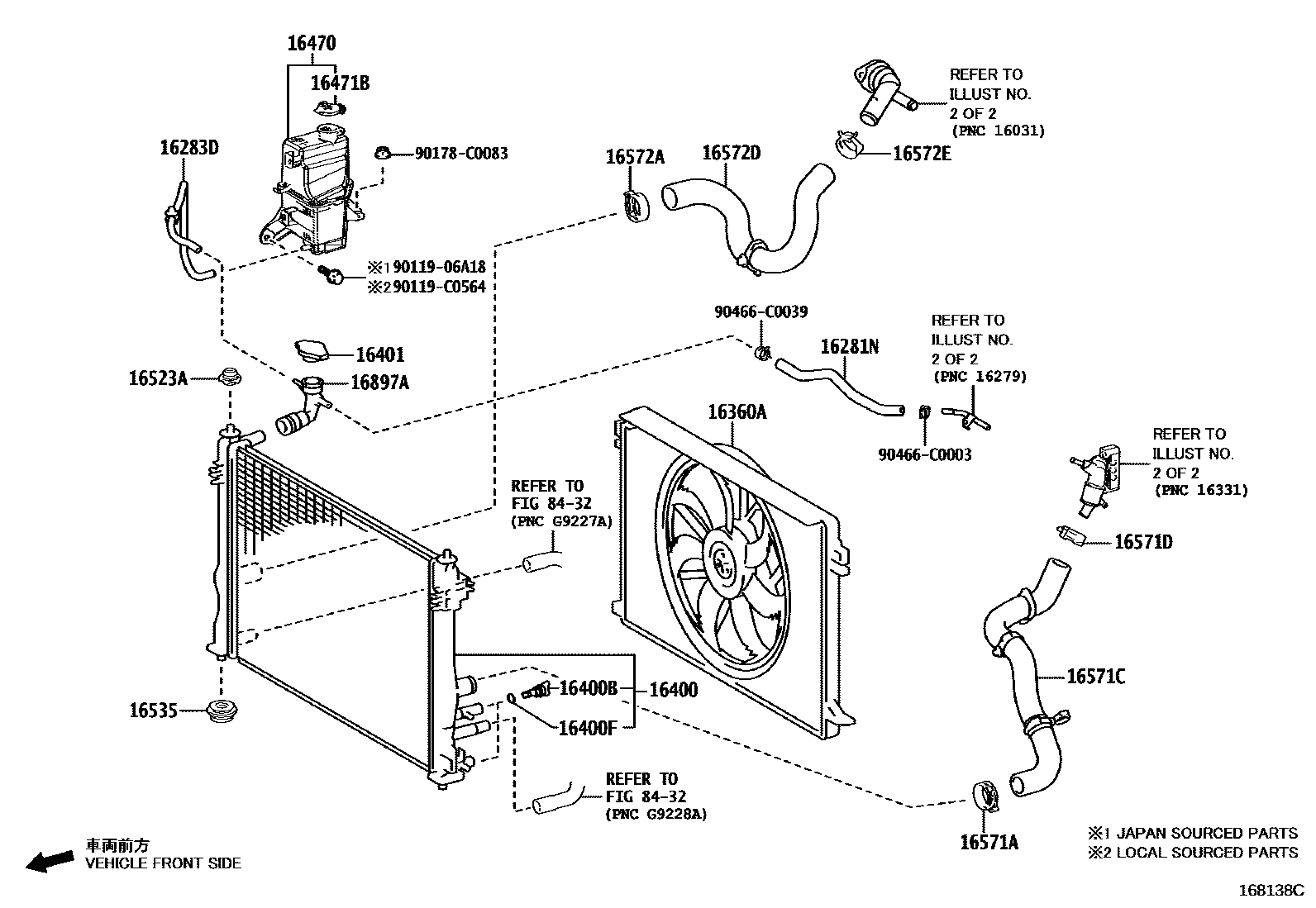

Parts diagram

16281HOSE, WATER BY-PASS, NO.4

main16281-25060i202209-202405

main16281-F0140i202108-202405

*625,*667

16281NHOSE, WATER BY-PASS, NO.4

main16281-F0120i202108-202405

main16281-F0200i202209-202405

16283HOSE, WATER BY-PASS, NO.6

main16283-F0140i202108-202405

*625,*667

16283DHOSE, WATER BY-PASS, NO.6

main16283-F0120i202108-202405

16360AFAN ASSY, W/MOTOR

main16360-F0210i202108-202212

main16360-F0211i202212-202405

main16360-F0250i202209-202405

16400RADIATOR ASSY

main16400-F0150i202108-202405

main16400-F0210i202209-202405

16400BPLUG, RADIATOR DRAIN COCK

main16417-0H290i202108-202405

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0P460i202108-202405

16401CAP SUB-ASSY, RADIATOR

main16401-36030i202108-202405

main16401-36030i202209-202405

(J)

main16401-F0010i202209-202405

(L)

16470TANK ASSY, RADIATOR RESERVE

main16470-F0060i202108-202405

16471BCAP, RESERVE TANK

main16405-F0030i202108-202405

16523ACUSHION, RADIATOR SUPPORT

main16523-F0050i202108-202405

16535SUPPORT, RADIATOR, LOWER

main16535-0H040i202108-202405

main16535-0H080i202209-202405

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002i202108-202405

16571CHOSE, RADIATOR, NO.1

main16571-F0320i202108-202405

main16571-F0430i202209-202405

16571DCLIP, RADIATOR HOSE, NO.1

main90466-C0016i202209-202405

main90466-C0053i202108-202405

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002i202108-202405

16572DHOSE, RADIATOR, NO.2

main16572-F0200i202108-202405

main16572-F0360i202209-202405

16572ECLIP, RADIATOR HOSE, NO.2

main90466-C0016i202209-202405

main90466-C0053i202108-202405

16897ANECK, FILLER

main16897-F0080i202108-202405

8432

9011906A18

main90119-06A18

90119C0564

main90119-C0564

90178C0083

main90178-C0083

90466C0003

main90466-C0003

90466C0039

main90466-C0039

26 parts on this diagram · 6 diagrams in section
