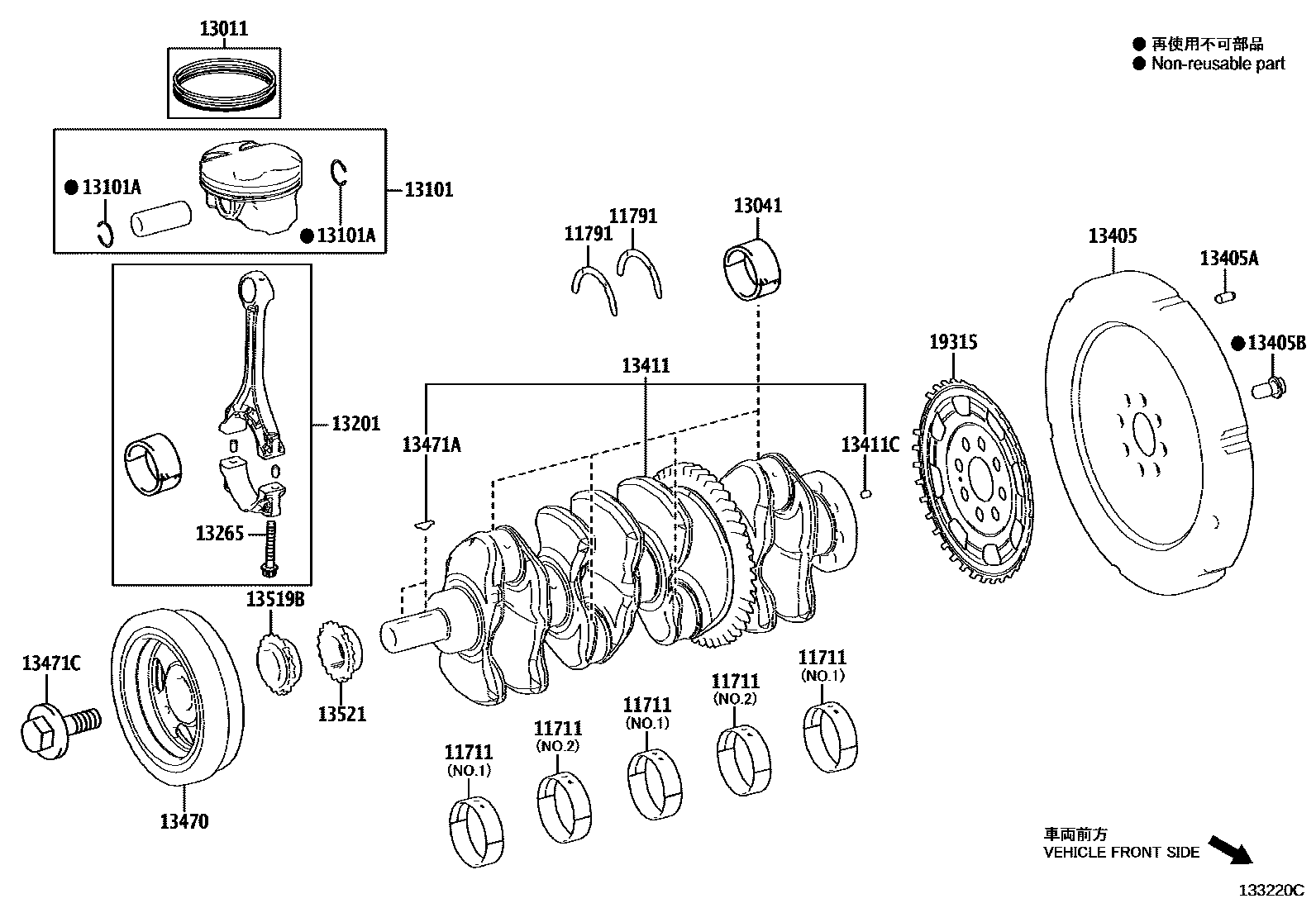

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11701-25010-01×3iA25..AXUH7#202108-202405

MARK 1,(J),*667,NO.1:*RRM

main11701-25010-02×3iA25..AXUH7#202405

MARK 2,(J),*667,NO.1:*RRM

main11701-25010-03×3iA25..AXUH7#202108-202405

MARK 3,(J),*667,NO.1:*RRM

main11701-25010-04×3iA25..AXUH7#202108-202405

MARK 4,(J),*667,NO.1:*RRM

main11701-25010-05×3iA25..AXUH7#202108-202405

MARK 5,(J),*667,NO.1:*RRM

main11701-25020-01×2iA25..AXUH7#202108-202405

MARK 1,(J),*667,NO.2:*RRM

main11701-25020-02×2iA25..AXUH7#202405

MARK 2,(J),*667,NO.2:*RRM

main11701-25020-03×2iA25..AXUH7#202108-202405

MARK 3,(J),*667,NO.2:*RRM

main11701-25020-04×2iA25..AXUH7#202108-202405

MARK 4,(J),*667,NO.2:*RRM

main11701-25020-05×2iA25..AXUH7#202108-202405

MARK 5,(J),*667,NO.2:*RRM

main11701-25050-01×4iS20..SXUA75202405

MARK 1,NO.1,REFER R/M

main11701-25050-02×4iS20..SXUA75202405

MARK 2,NO.1,REFER R/M

main11701-25050-03×4iS20..SXUA75202405

MARK 3,NO.1,REFER R/M

main11701-25050-04×4iS20..SXUA75202405

MARK 4,NO.1,REFER R/M

main11701-25060-01iS20..SXUA75202209-202405

MARK 1,NO.2,REFER R/M

main11701-25060-02iS20..SXUA75202405

MARK 2,NO.2,REFER R/M

main11701-25060-03iS20..SXUA75202209-202405

MARK 3,NO.2,REFER R/M

main11701-25060-04iS20..SXUA75202209-202405

MARK 4,NO.2,REFER R/M

main11701-F0030-01×3iA25..AXUH7#202405

MARK 1,(L),*667,NO.1:*RRM,NO.1,REFER R/M,*625

main11701-F0030-02×3iA25..AXUH7#202108-202405

MARK 2,(L),*667,NO.1:*RRM,NO.1,REFER R/M,*625

main11701-F0030-03×3iA25..AXUH7#202108-202405

MARK 3,(L),*667,NO.1:*RRM,NO.1,REFER R/M,*625

main11701-F0030-04×3iA25..AXUH7#202108-202405

MARK 4,(L),*667,NO.1:*RRM,NO.1,REFER R/M,*625

main11701-F0030-05×3iA25..AXUH7#202108-202405

MARK 5,(L),*667,NO.1:*RRM,NO.1,REFER R/M,*625

main11701-F0040-01×2iA25..AXUH7#202405

MARK 1,NO.2,REFER R/M,*625,(L),*667,NO.2:*RRM

main11701-F0040-02×2iA25..AXUH7#202405

MARK 2,NO.2,REFER R/M,*625,(L),*667,NO.2:*RRM

main11701-F0040-03×2iA25..AXUH7#202108-202405

MARK 3,NO.2,REFER R/M,*625,(L),*667,NO.2:*RRM

main11701-F0040-04×2iA25..AXUH7#202405

MARK 4,NO.2,REFER R/M,*625,(L),*667,NO.2:*RRM

main11701-F0040-05×2iA25..AXUH7#202108-202405

MARK 5,NO.2,REFER R/M,*625,(L),*667,NO.2:*RRM

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040×2iS20..SXUA75202209-202405

STD

main11791-F0020×2iA25..AXUH7#202108-202405

STD,*625,*667

13011RING SET, PISTON

main13011-25090iS20..SXUA75202209-202405

STD

main13011-F0060×4iA25..AXUH7#202405

STD,*625,*667

13041BEARING, CONNECTING ROD

main13041-25020-01×4iA25..AXUH7#202405

MARK 1,(J),*667:REFER R/M

main13041-25020-02×4iA25..AXUH7#202405

MARK 2,(J),*667:REFER R/M

main13041-25020-03×4iA25..AXUH7#202108-202405

MARK 3,(J),*667:REFER R/M

main13041-25040-01×4iS20..SXUA75202405

MARK 1,REFER REPAIR MANUAL

main13041-25040-02×4iS20..SXUA75202209-202405

MARK 2,REFER REPAIR MANUAL

main13041-25040-03×4iS20..SXUA75202209-202405

MARK 3,REFER REPAIR MANUAL

main13041-F0020-01×4iA25..AXUH7#202108-202405

MARK 1,*625:REFER R/M,(L),*667:REFER R/M

main13041-F0020-02×4iA25..AXUH7#202405

MARK 2,*625:REFER R/M,(L),*667:REFER R/M

main13041-F0020-03×4iA25..AXUH7#202108-202405

MARK 3,*625:REFER R/M,(L),*667:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-25060×4iS20..SXUA75202209-202405

STD

main13101-F0050×4iA25..AXUH7#202108-202405

STD,*625,*667

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8iA25..AXUH7#202405

*625,*667

main90520-25090×8iS20..SXUA75202405

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4iA25..AXUH7#202108-202405

MARK A,(J),*667

main13201-29815-B0×4iA25..AXUH7#202405

MARK B,(J),*667

main13201-29815-C0×4iA25..AXUH7#202405

MARK C,(J),*667

main13201-29855-A0×4iS20..SXUA75202405

MARK A,REFER REPAIR MANUAL

main13201-29855-B0×4iS20..SXUA75202405

MARK B,REFER REPAIR MANUAL

main13201-29855-C0×4iS20..SXUA75202405

MARK C,REFER REPAIR MANUAL

main13201-F9060-A0×4iA25..AXUH7#202108-202405

MARK A,*625:REFER R/M

main13201-F9060-B0×4iA25..AXUH7#202108-202405

MARK B,*625:REFER R/M

main13201-F9060-C0×4iA25..AXUH7#202108-202405

MARK C,*625:REFER R/M

13265BOLT, CONNECTING ROD

main13265-25020×8iS20..SXUA75202405

(J),*667

main13265-F2010×8iA25..AXUH7#202202-202405

(L),*667

13405FLYWHEEL SUB-ASSY

main13451-25030iA25..AXUH7#202108-202405

(J),*667

main13451-F0030iA25..AXUH7#202405

*625,(L),*667

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3iA25..AXUH7#202210-202405

L=18,OD=8,(J),*667,(J),*625

main90250-C0011×3iA25..AXUH7#202405

L=18,OD=8,(L),*667,(L),*625

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8iA25..AXUH7#202405

(J),*667

main90105-C0352×8iA25..AXUH7#202108-202405

*625,(L),*667

13411CRANKSHAFT

main13401-25010iA25..AXUH7#202405

(J),*667

main13401-25030iS20..SXUA75202405

main13401-F0040iA25..AXUH7#202202-202405

(L),*667

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25..AXUH7#202108-202405

*625,*667

13470PULLEY ASSY, CRANKSHAFT

main13470-25020iA25..AXUH7#202108-202405

(J),*667

main13470-25050iS20..SXUA75202209-202405

main13470-F0030iA25..AXUH7#202405

*625,(L),*667

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iA25..AXUH7#202108-202405

(J),*667

main90280-C0002×2iA25..AXUH7#202202-202405

(L),*667

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iS20..SXUA75202405

(J),*667

main90119-C0429iA25..AXUH7#202405

*625,(L),*667

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010iA25..AXUH7#202108-202405

(J),*667

main13519-25040iS20..SXUA75202209-202405

main13519-F0020iA25..AXUH7#202108-202405

*625,(L),*667

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010iA25..AXUH7#202405

(J),*667

main13521-25030iS20..SXUA75202209-202405

main13521-F0020iA25..AXUH7#202108-202405

*625,(L),*667

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25011iA25..AXUH7#202405

(J),*667

main19315-25031iS20..SXUA75202209-202405

main19315-F0020iA25..AXUH7#202405

*625,(L),*667

19 parts on this diagram · 2 diagrams in section
