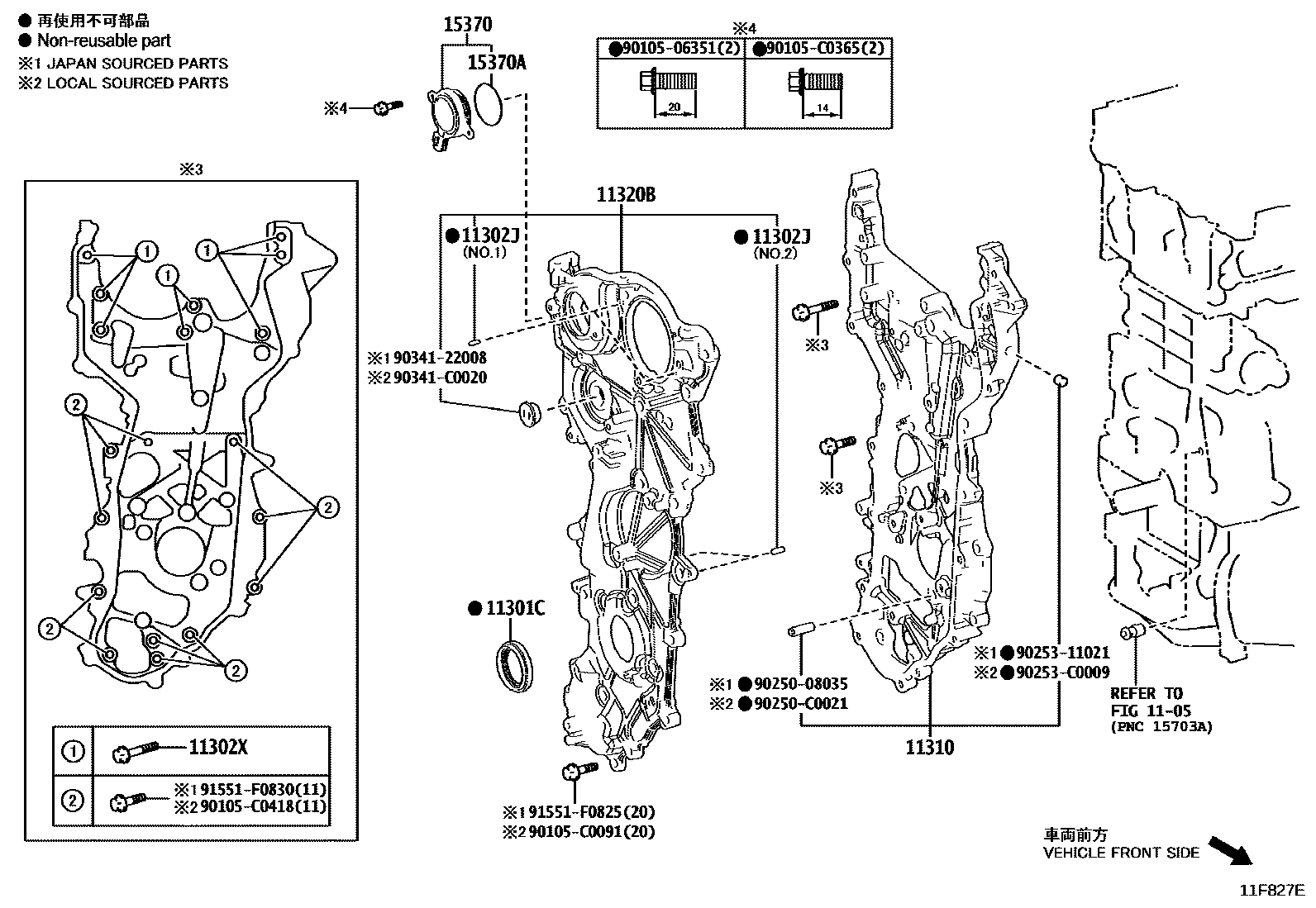

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
(J),*667
*625,(L),*667
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
*625,NO.1:REFER ILL.,(J),*667,NO.1
*667,NO.2:REFER ILL.,*625,NO.2:REFER ILL.
(L),*667,NO.1
11302XBOLT, FLANGE
*625,*667
*625,*667
11310COVER ASSY, TIMING CHAIN
*625
*667
11320BCOVER ASSY, TIMING CHAIN, NO.2
(J),*667
*625,(L),*667
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
(J),*667
*625,(L),*667
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
(J),*667
*625,(L),*667
9010506351
main90105-06351
90105C0091
main90105-C0091
90105C0365
main90105-C0365
90105C0418
main90105-C0418
9025008035
main90250-08035
90250C0021
main90250-C0021
9025311021
main90253-11021
90253C0009
main90253-C0009
9034122008
main90341-22008
90341C0020
main90341-C0020
91551F0825
main91551-F0825
91551F0830
main91551-F0830
20 parts on this diagram · 2 diagrams in section
