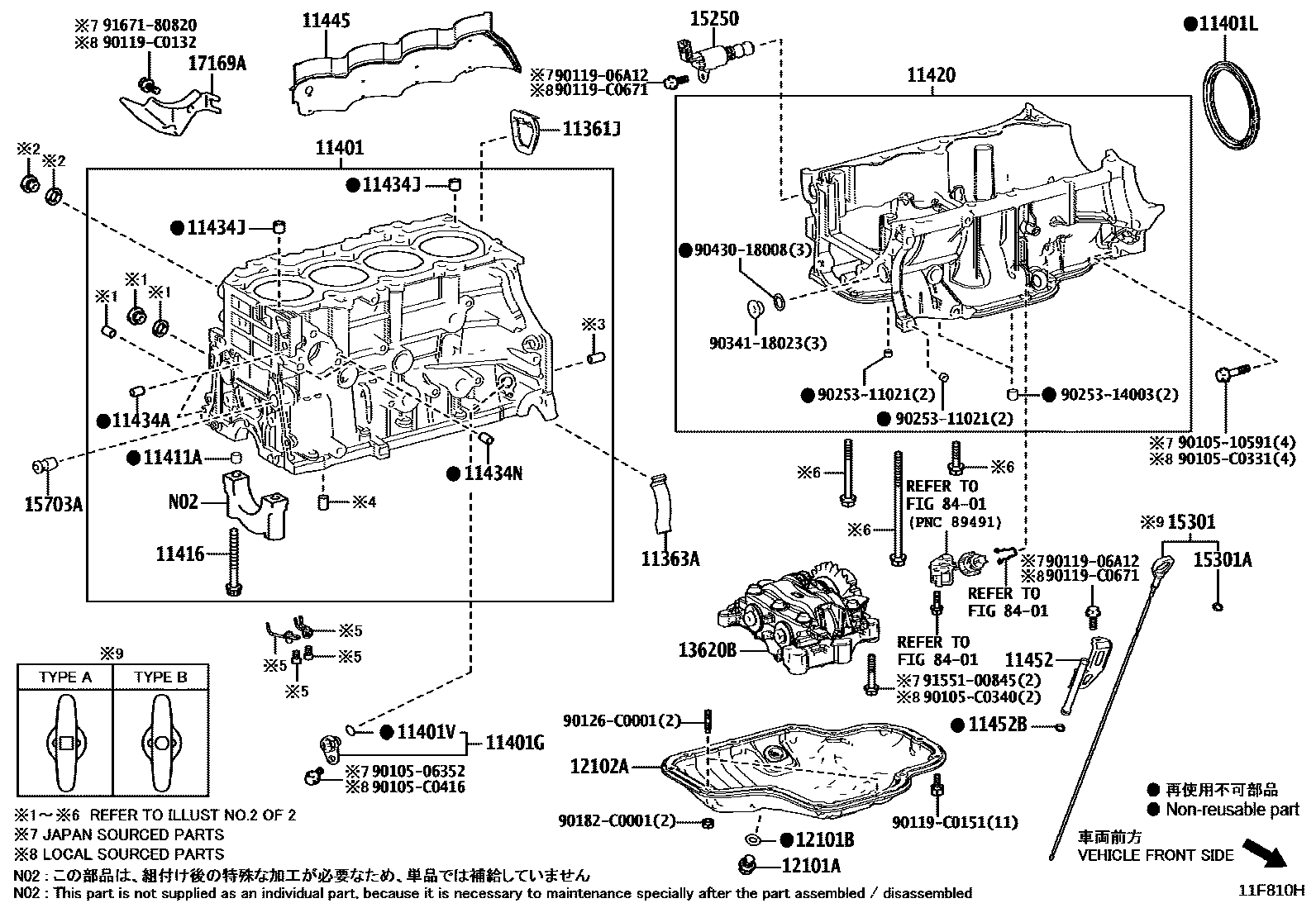

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(J),*625
(L),*625
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(J),*625
(L)
(L),*625
11401BLOCK SUB-ASSY, CYLINDER
*625
*667
11401GSENSOR, CRANK POSITION
(J),*667,(J),*625
*625,*667
(L),*667,(L),*625
11401LSEAL, ENGINE REAR OIL
(J),*667
*625,(L),*667
11401VO-RING, CRANK POSITION SENSOR
*625,*667
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
(J),*667
(L),*667
*625,(L),*667
*625
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*625,*667
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
11420CRANKCASE ASSY, STIFFENING
(J),*667
*625,(L),*667
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,*625
L=14,OD=6
L=14,OD=6,*667
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J),*667
*625,(L),*667
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*625
*667
11445SPACER, CYLINDER BLOCK WATER JACKET
(J),*667
*625,(L),*667
11452GUIDE, OIL LEVEL GAGE
(J),*667
*625,(L),*667
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L),*667,(L),*625
*625,*667
(J),*667,(J),*625
12101APLUG(FOR OIL PAN DRAIN)
*625
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*625
12102APAN SUB-ASSY, OIL, NO.2
(J),*667
*625,(L),*667
13620BBALANCER ASSY, ENGINE
*625
15250VALVE ASSY, OIL PRESSURE CONTROL
(J),*667
*667
*625
*625
(L),*667
*625,(L),*667
15301GAGE SUB-ASSY, OIL LEVEL
*667T/P A:REF.ILLUST
*625,*667T/P B:REF.ILLUST
15301ARING, O(FOR OIL LEVEL GAGE)
(L),*667,(L),*625
(J),*667,(J),*625
15703AVALVE SUB-ASSY, OIL NOZZLE
(J),*667,(J),*625
*625,*667
(L),*667,(L),*625
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*625,*667
8401
9010506352
9010510591
90105C0331
main90105-C0331
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
90126C0001
main90126-C0001
90182C0001
main90182-C0001
9025311021
9025314003
9034118023
9043018008
9155100845
9167180820
42 parts on this diagram · 4 diagrams in section
