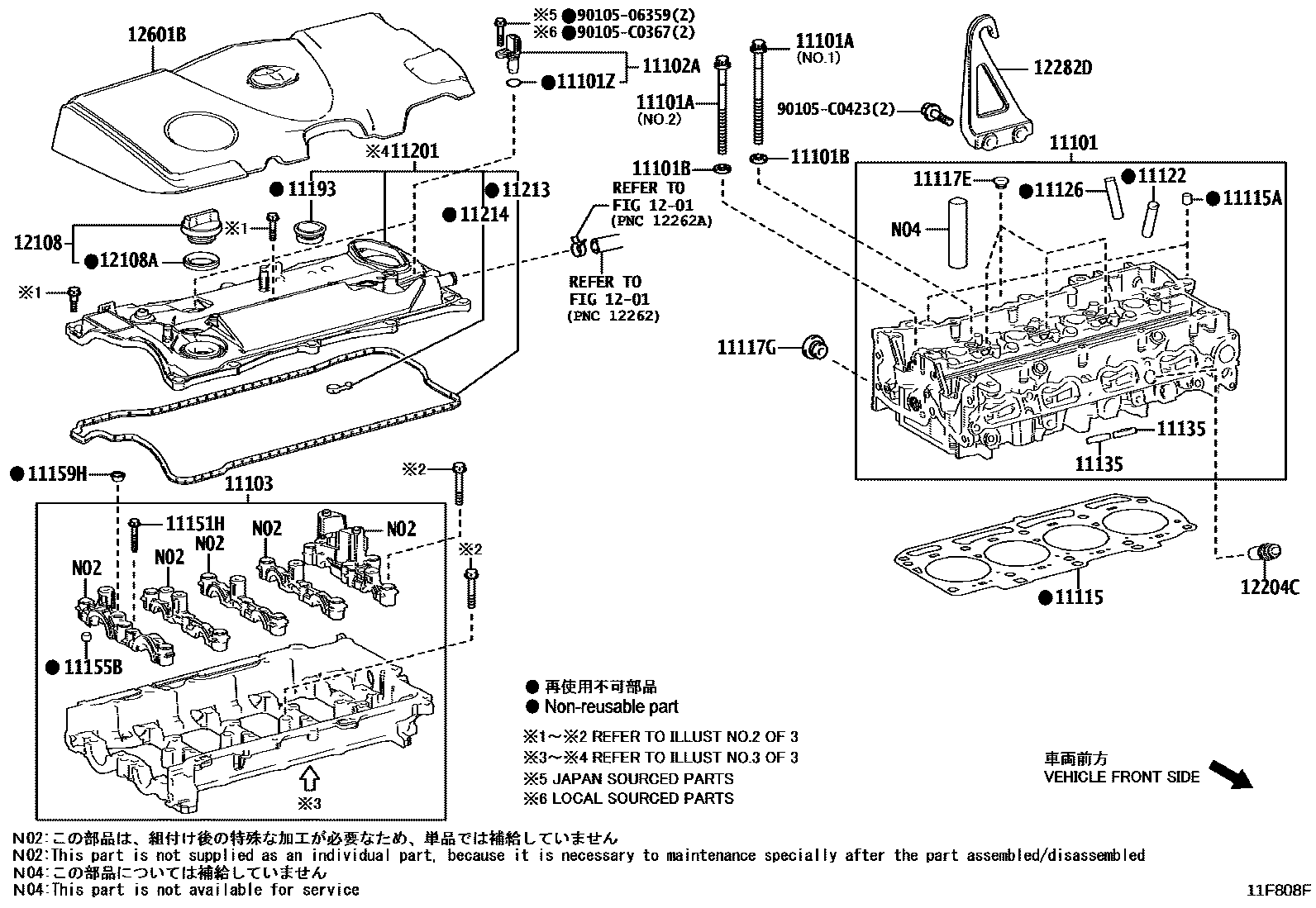

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J),*667
*625
(L),*667
*625,(L),*667
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
(J),*667,NO.1
NO.2:REFER ILLUST.
*667,NO.2:REFER ILL.,*625,NO.2:REFER ILL.
(L),*667,NO.1,*625,NO.1:REFER ILL.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J),*667
*625,(L),*667
11101ZO RING, CAM POSITION SENSOR
*625,*667
11102ASENSOR, CAMSHAFT POSITION
*625,*667
(J),*667,(J),*625
(L),*667,(L),*625
11103HOUSING SUB-ASSY, CAMSHAFT
*667T/P A:REF.ILLUST
*625,*667T/P B:REF.ILLUST
11115GASKET, CYLINDER HEAD
(J),*667
*625,(L),*667
11115APIN, RING
*625,*667
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J),*667
*625,(L),*667
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J),*667
*625,(L),*667
11122BUSH, INTAKE VALVE GUIDE
STD,*625,*667
STD
O/S 0.05,*625,*667
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,*625,*667
O/S 0.05,*625,*667
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,(J),*667
STD
STD,*625,(L),*667
O/S 0.03,*625,*667
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J),*667
*625,(L),*667
11155BPIN, RING
(J),*667,(J),*625
*625
*667
(L),*667,(L),*625
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*625,*667
11193GASKET, SPARK PLUG TUBE
(J),*667
*625,(L),*667
11201COVER SUB-ASSY, CYLINDER HEAD
*667T/P A:REF.ILLUST
*667,TYPE B,MARK=CC1,*625
*625,*667T/P B:REF.ILLUST
11213GASKET, CYLINDER HEAD COVER
(J),*667
*625,(L),*667
11214GASKET, CYLINDER HEAD COVER, NO.2
*625,*667
1201
12108CAP SUB-ASSY, OIL FILLER
*625,*667
12108AGASKET(FOR OIL FILLER CAP)
*625,*667
12204CVALVE SUB-ASSY, VENTILATION
*625,*667
12282DHANGER, ENGINE, NO.2
(J),*667
*625,(L),*667
12601BCOVER SUB-ASSY, ENGINE, NO.1
9010506359
90105C0367
main90105-C0367
90105C0423
main90105-C0423
29 parts on this diagram · 6 diagrams in section
