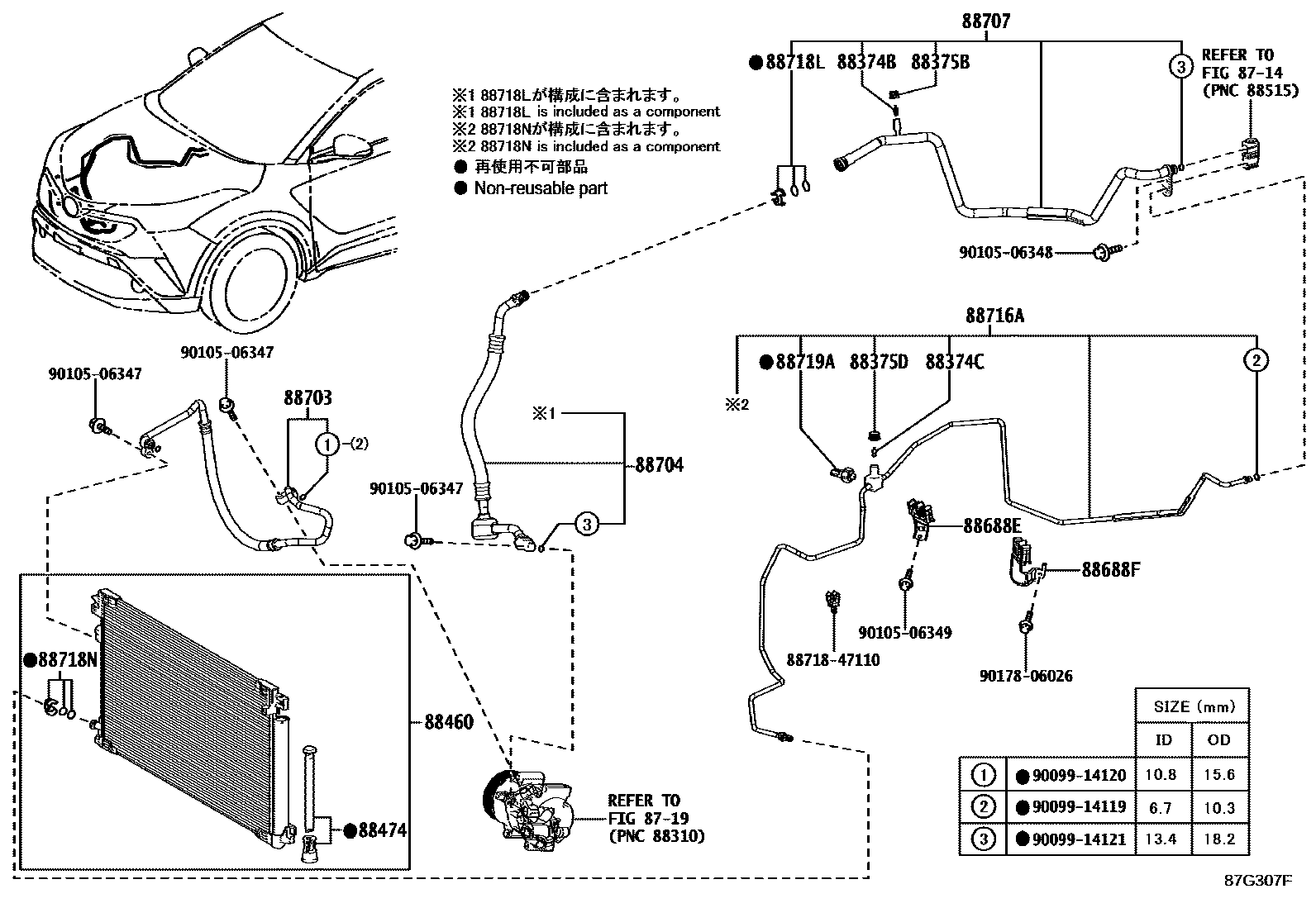

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNGX10,50,ZYX10201612-201910

88374CVALVE, SERVICE, NO.2

main88374-30010iNGX10,50201612-201910

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNGX10,50201612-201910

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iNGX10,50201612-201910

88460CONDENSER ASSY, COOLER

main88460-10310iNGX10,50201612-201910

main88460-10320iZYX10201910

88474DRYER, COOLER

main88474-12020iNGX10,50201612-201910

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-10540iNGX10201612-201910

main88688-10550iNGX50201612-201910

main88688-47700iZYX10201910

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-10560iNGX10,50201612-201910

main88688-47710iZYX10201910

88703HOSE SUB-ASSY, DISCHARGE

main88703-10100iNGX10,50201612-201910

main88703-10120iNGX10,50201801-201905

sub88703-10100

main88703-47080iZYX10201910

88704HOSE SUB-ASSY, SUCTION

main88704-10250iNGX10,50201905-201910

main88704-10260iNGX10,50201612-201801

main88704-10280iNGX10,50201801-201905

main88704-47100iZYX10201910

88707PIPE SUB-ASSY, SUCTION

main88707-10020iNGX10,50201612-201910

main88707-47090iZYX10201910

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-10170iZYX10201910

main88710-10180iNGX10,50201612-202105

sub88710-10181

main88710-10181iNGX10,50202106

88718LCLAMP, PIPING

main88718-52280iNGX10,50201612-201910

88718NCLAMP, PIPING

main88718-1E150iNGX10,50201612-201910

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-47010iNGX10,50201612-201910

8871847110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47110

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9017806026

main90178-06026

25 parts on this diagram · 3 diagrams in section
