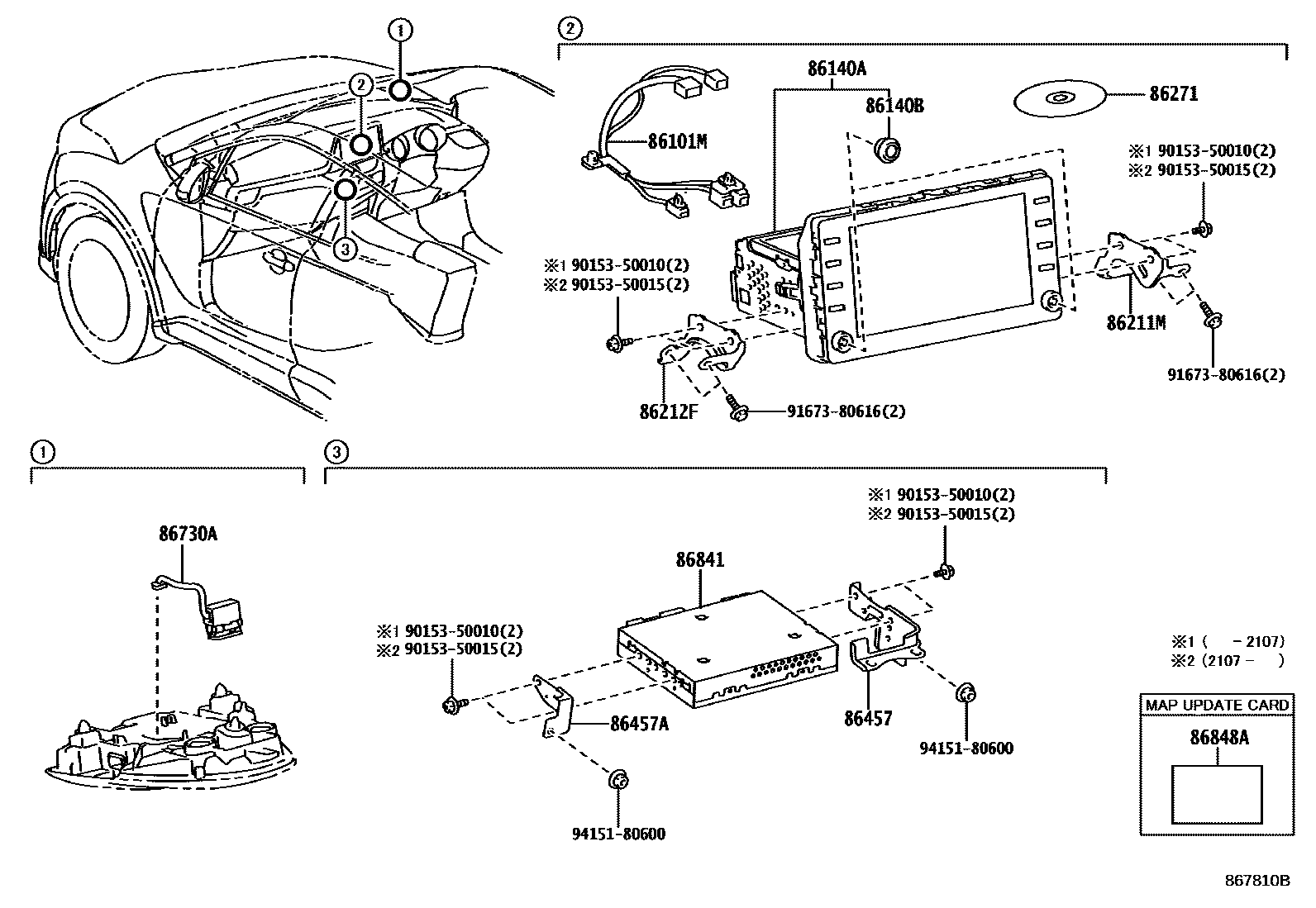

NAVIGATION & FRONT MONITOR DISPLAY

86101MCORD SUB-ASSY, ANTENNA

main86101-10450iNGX10,50,ZYX10201910

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-10080iNGX10,50,ZYX10201910

PIONEER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-22129iNGX10,50,ZYX10201910

86211MBRACKET, RADIO RECEIVER, NO.3

main86211-10160iNGX10,50,ZYX10201910

86212FBRACKET, RADIO RECEIVER, NO.4

main86212-10160iNGX10,50,ZYX10201910

86271DISC, DISC PLAYER

main86807-11043iNGX10,50,ZYX10202010-202109

sub86807-11044

main86807-11044iNGX10,50,ZYX10202110

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-10010iNGX10,50,ZYX10201910

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-10020iNGX10,50,ZYX10201910

86730AMICROPHONE ASSY, TELEPHONE

main86730-48050iNGX10,50,ZYX10201910

86841COMPUTER, NAVIGATION

main86840-K0050iNGX10,50,ZYX10201910-202008

sub86840-K0051

main86840-K0051iNGX10,50,ZYX10202009-202109

sub86840-K0052

main86840-K0052iNGX10,50,ZYX10202110-202208

sub86840-K0053

main86840-K0053iNGX10,50,ZYX10202209

sub86840-K0054

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33040iNGX10,50,ZYX10201910

9015350010

main90153-50010

9015350015

main90153-50015

9167380616

main91673-80616

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
