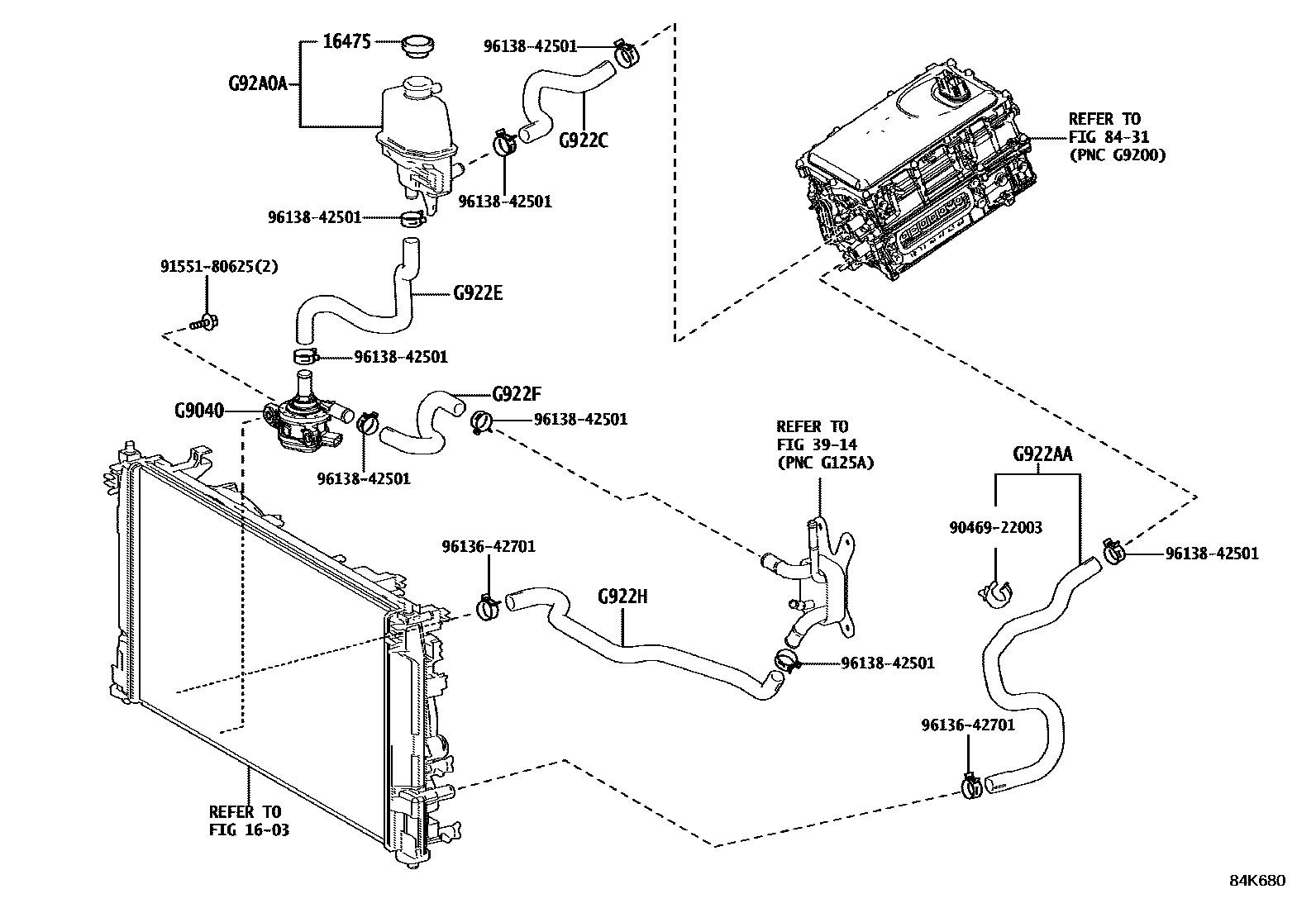

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZYX10201910

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047040iZYX10201910

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A47010iZYX10201910

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C47010iZYX10201910

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E47010iZYX10201910

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZYX10201910

G922HHOSE, HYBRID RADIATOR INLET

mainG922H47010iZYX10201910

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H047011iZYX10201910

9046922003

main90469-22003

9155180625

main91551-80625

9613642701

main96136-42701

9613842501

main96138-42501

15 parts on this diagram · 1 diagram in section
