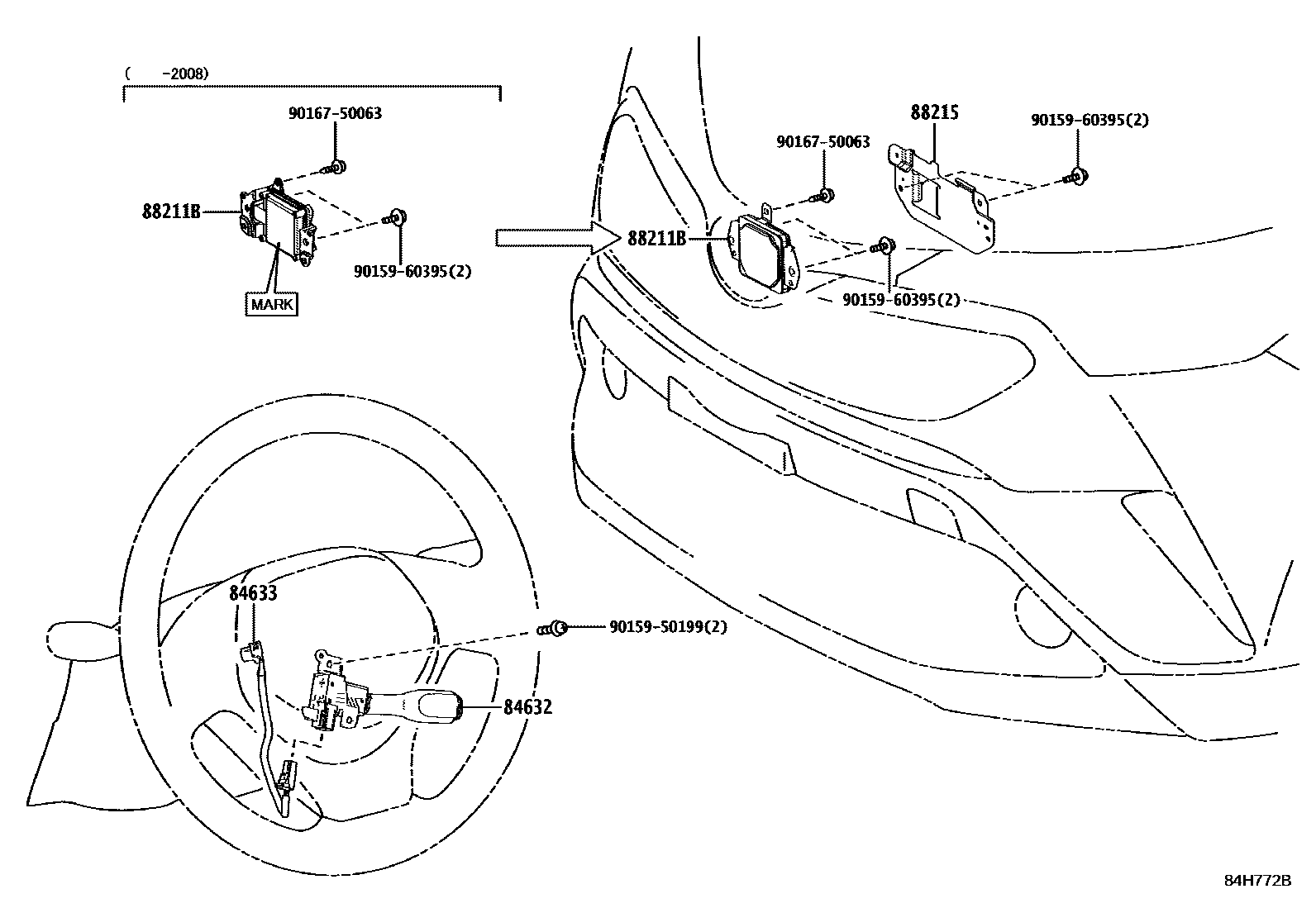

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-47010iNGX10,50,ZYX10201910

main84632-47010iNGX10,50201612-201910

PRE-COLLISION SYSTEM-WITHOUT

84633WIRE, CRUISE CONTROL SWITCH

main84633-10010iNGX10,50201612-201910

PRE-COLLISION SYSTEM-WITHOUT

main84633-10010iNGX10,50,ZYX10201910

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-0W010iNGX10,50201805-201910

PRE-COLLISION SYSTEM-WITHOUT

main88210-10010iNGX10,50,ZYX10202003-202008

MARK=88210-10010

main88210-10070iNGX10,50,ZYX10202209

(J)

main88210-F4010iNGX10,50201612-201710

MARK=88210-F4010

main88210-F4010iNGX10,50201612-201710

PRE-COLLISION SYSTEM-WITHOUT,MARK=88210-F4010

main88210-F4011iNGX10,50201710-201805

MARK=88210-F4011

main88210-F4011iNGX10,50201710-201805

PRE-COLLISION SYSTEM-WITHOUT,MARK=88210-F4011

main88210-F4050iNGX10,50,ZYX10201912-202008

MARK=88210-F4050

main88210-F4050iNGX10,50,ZYX10201910-201912

main88210-F4070iNGX10,50,ZYX10202008-202209

main88210-F4070iNGX10,50,ZYX10202209

(L)

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88215-10010iNGX10,50201612-201910

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
