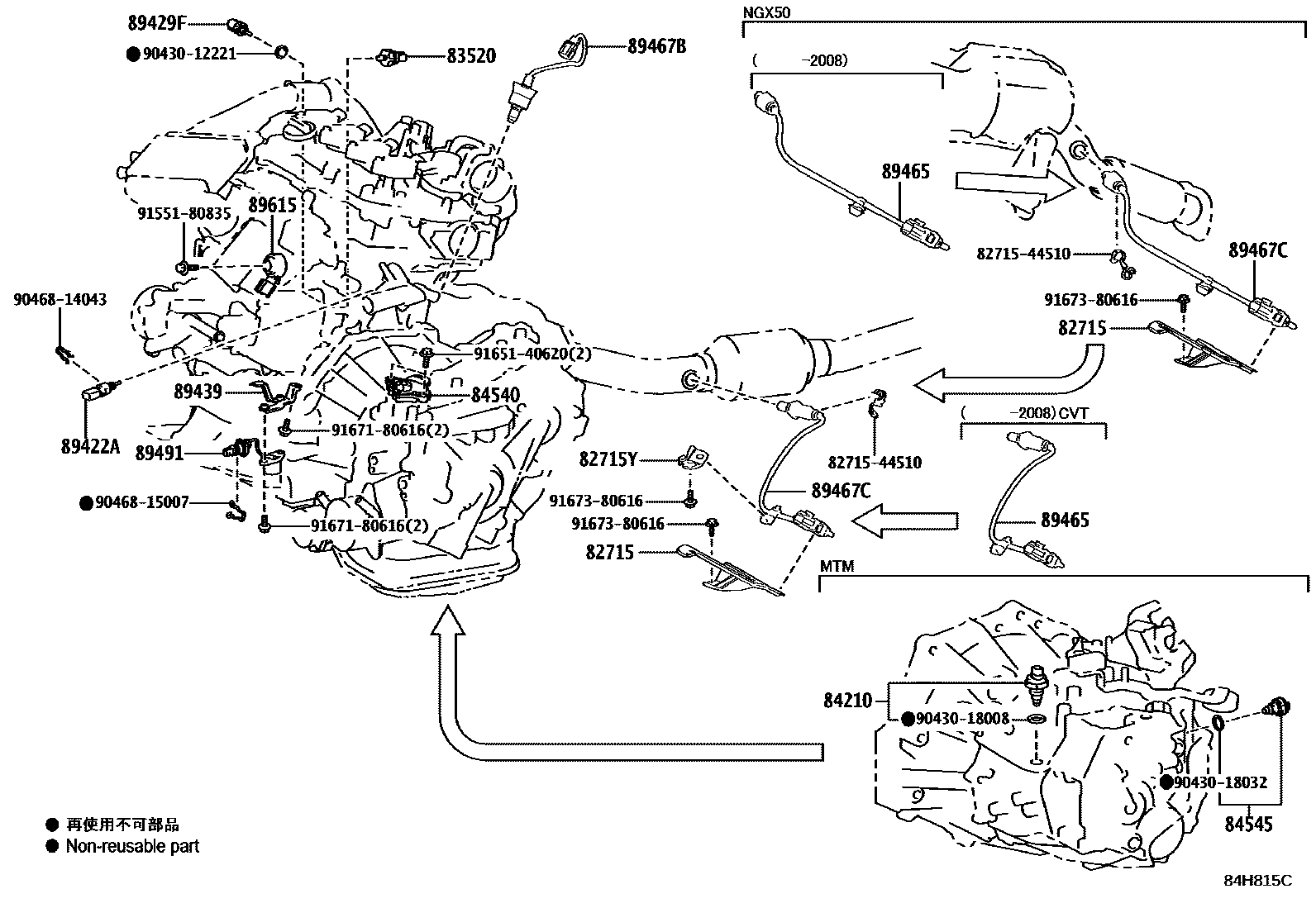

82715BRACKET,WIRING HARNESS CLAMP

main82715-10330iNGX10,50,ZYX10¥920201612-201910

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-47690iNGX10¥260201612-201910

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iNGX10,50¥2,470201612-201910

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNGX10..6F¥1,360201612-201910

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNGX10,50..CVT¥7,600201612-201910

84545SWITCH, NEUTRAL POSITION

main84545-52010iNGX10..6F¥3,070201612-201910

89422ASENSOR, WATER TEMPERATURE

main89422-47010iNGX10,50¥2,410201612-201910

89429FSENSOR, TEMPERATURE

main89429-12010iNGX10,50¥3,380201612-201910

89439BRACKET, SENSOR

main15367-47010iNGX10,50¥960201712-201910

main89439-12070iNGX10,50¥940201612-201711

sub15367-47010¥960

89465SENSOR, OXYGEN

main89465-10080iNGX10¥6,400201612-202008

main89465-10090iNGX50¥6,400201612-202008

89467BSENSOR, AIR FUEL RATIO

main89467-12270iNGX10,50¥10,900201612-201910

main89467-47030iZYX10¥9,900201910

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-10010iNGX10¥10,900202008

main89467-12320iNGX50¥10,900202008

89491SENSOR, ENGINE OIL LEVEL

main89491-12040iNGX10,50¥4,400201612-201710

sub89491-50080¥4,400

main89491-28090iZYX10¥3,670202104-202204

sub89491-28091¥3,330

main89491-28091iZYX10¥3,330202205

main89491-47011iZYX10¥3,670201910-202103

sub89491-28090¥3,670

main89491-50080iNGX10,50¥4,400201711-201805

sub89491-50081¥3,670

main89491-50081iNGX10,50¥3,670201806-202204

sub89491-50082¥3,330

main89491-50082iNGX10,50¥3,330202205

89615SENSOR, KNOCK CONTROL

main89615-20090iNGX10,50¥2,370201612-201910

8271544510BRACKET,WIRING HARNESS CLAMP

main82715-44510¥200

9043012221

main90430-12221¥200

9043018008

main90430-18008¥110

9043018032

main90430-18032¥90

9046814043

main90468-14043¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9165140620

main91651-40620¥70

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60
